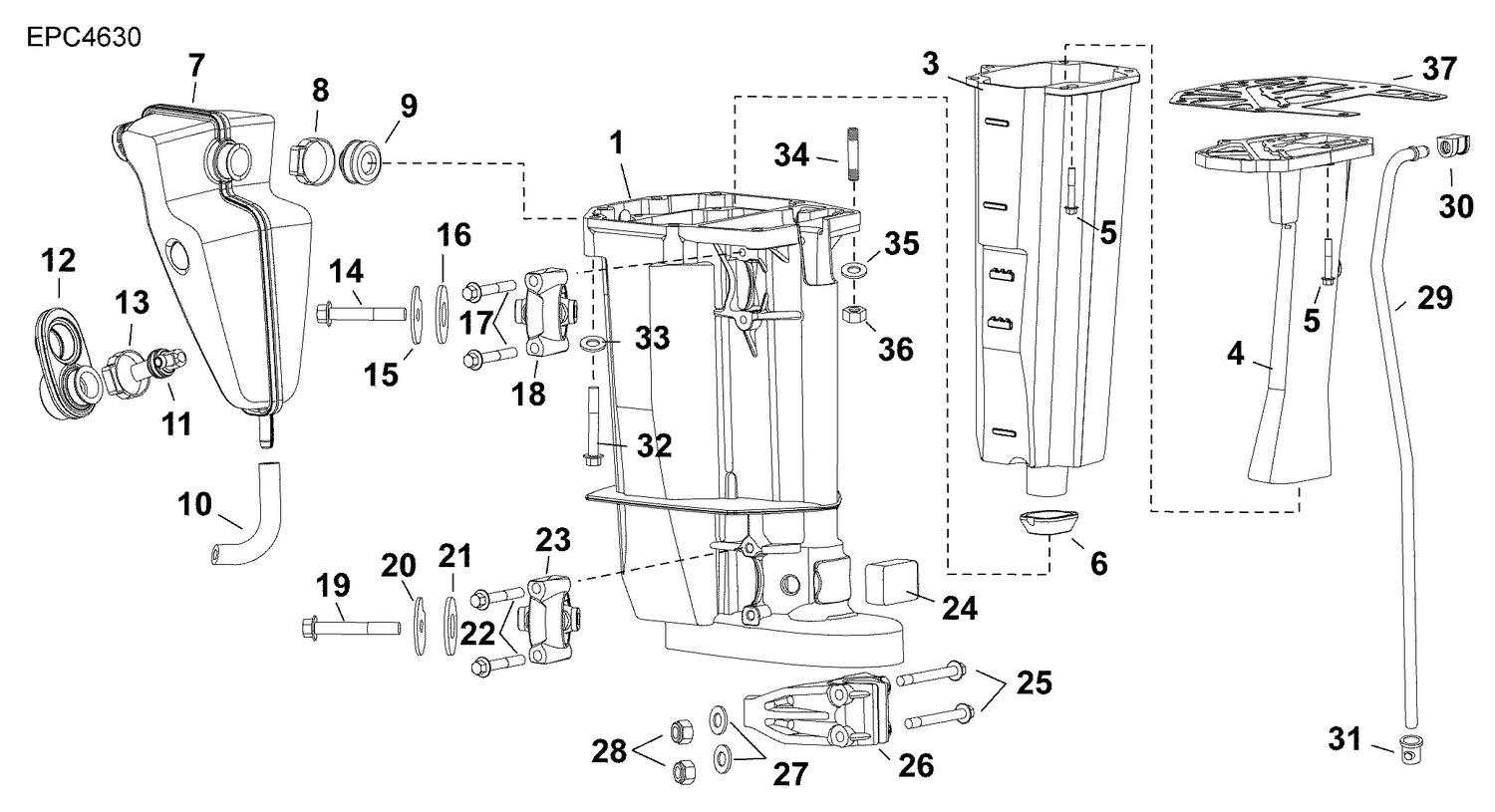

| Ref | Part Number | Description |
|---|
| NS |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 3 |
0355128 |
HOUSING, Inner exhaust |
| 4 |
0355927 |
MEGAPHONE, Exh housing |
| 6 |
0353330 |
SEAL, Inner exh, lower |
| 7 |
5007443 |
MUFFLER, Exhaust |
| 8 |
0351685 |
COLLIER, à oreilles - 34,6 mm silencieux vers bloc |
| 9 |
0353495 |
GROMMET, Muffler to exh housing |
| 10 |
0354116 |
HOSE, Muffler to lower motor cover |
| 11 |
0353756 |
FITTING, Exhaust grommet |
| 12 |
0354162 |
GROMMET |
| 14 |
0353676 |
SCREW, Adapter to exhaust housing - front |
| 15 |
0353674 |
WASHER, Bumper stop - upper mount |
| 16 |
0354437 |
WASHER, Bumper - upper mount |
| 18 |
5007920 |
MOUNT ASSEMBLY, Upper |
| 19 |
0353676 |
SCREW, Adapter to exhaust housing - front |
| 20 |
0355866 |
WASHER, Bumper stop, lower mount |
| 21 |
0354437 |
WASHER, Bumper - upper mount |
| 23 |
5007508 |
MOUNT Assembly, Lower |
| 24 |
0352787 |
MOUNT, Rubber - lower mount bracket |
| 26 |
0355129 |
MOUNT BRACKET, Lower |
| 28 |
0353728 |
NUT, Flanged |
| 30 |
0353319 |
GROMMET, Water tube to exh hsng |
| 36 |
0353704 |
NUT Gearcase to extension |
