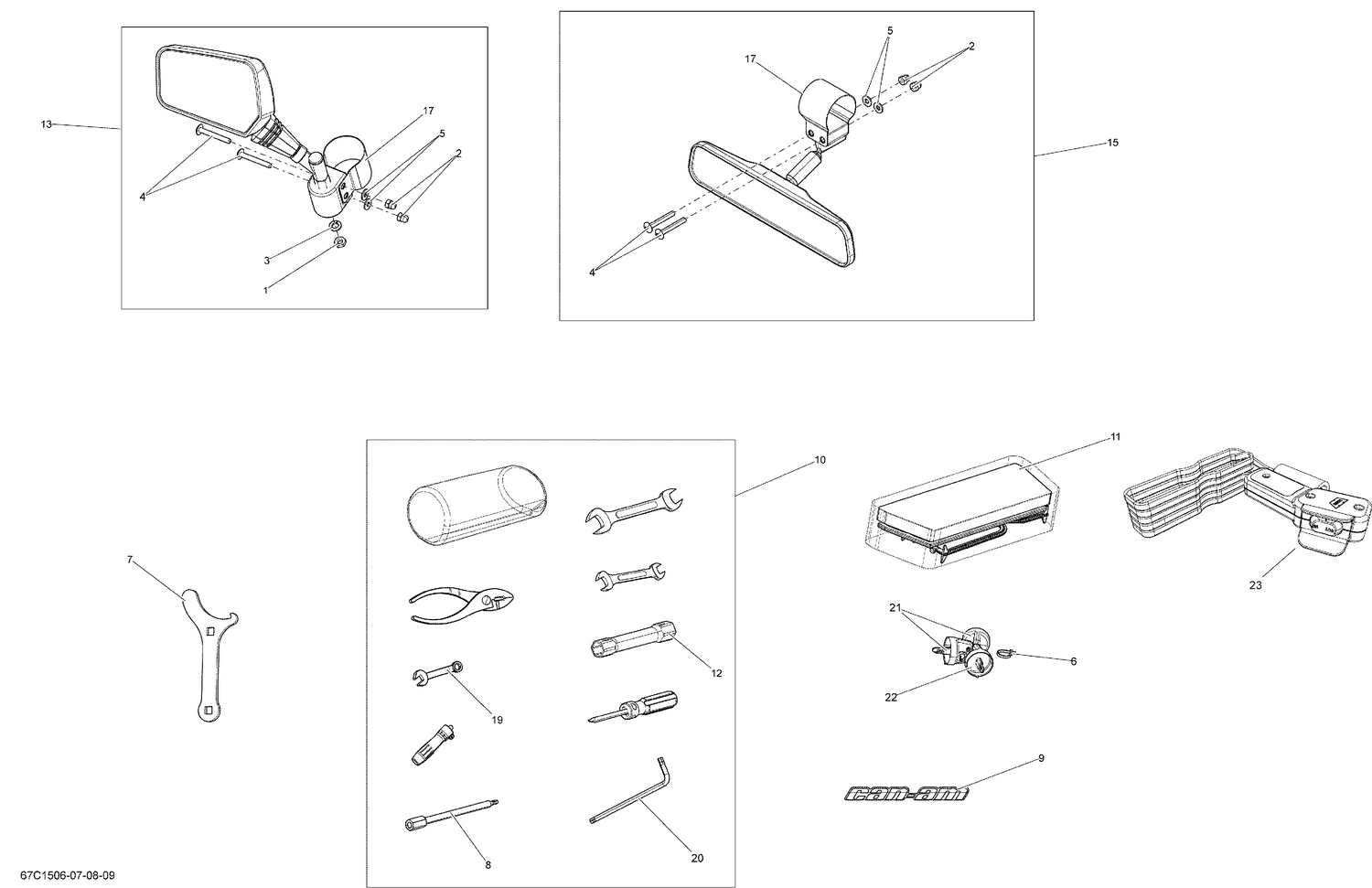

09- Mirrors And Tools _67C1506
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232180600 | Hex. Jam Nut M8 |
| 2 | 232361493 | Domed Nut M6 |
| 3 | 234181401 | Lock Washer 8 mm |
| 4 | 250000215 | Torx Screw M6 X 45 |
| 5 | 250200039 | Flat Washer |
| 6 | 293750001 | Tie Wrap 94 mm |
| 7 | 529000057 | Adjustment Wrench |
| 8 | 529000072 | Puller/Locking Tool |
| 9 | 704902319 | Cage Decal |
| 10 | 704700162 | Tool Kit |
| 11 | 707800573 | Filter Kit |
| 12 | 529014900 | Socket Wrench 10/13 mm |
| 13 | 715001192 | Left Mirror Kit This part replaces 708200182. |
| 15 | 715001191 | CENTRAL MIRROR KIT - Call your local BRP dealership |
| 17 | 708200185 | MIRROR CLAMP - Call your local BRP dealership |
| 19 | 708200338 | Wrench 8 mm |
| 20 | 708200340 | Torx Key T30 |
| 21 | 710000817 | Black, Electronic Key |
| 22 | 710002183 | Grey, Electronic Key |
