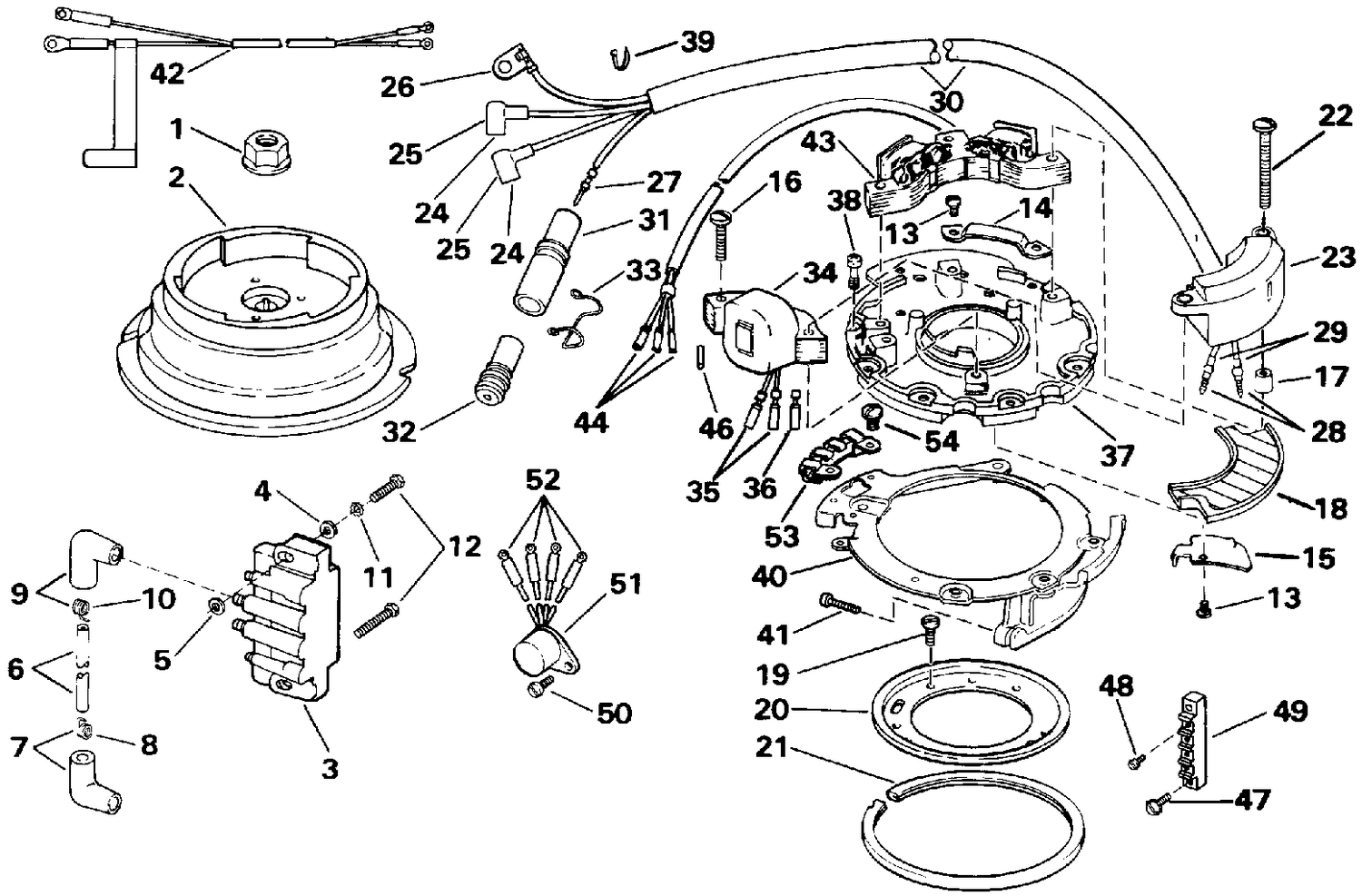

| Ref | Part Number | Description |
|---|
| 1 |
0326016 |
NUT, Flywheel |
| 2 |
0584222 |
FLYWHEEL ASSEMBLY |
| 3 |
0583740 |
COIL Assy |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 13 |
0303212 |
VIS, collier & capot |
| 14 |
0511458 |
COLLIER, fils |
| 15 |
0511459 |
CACHE, fils |
| 16 |
0337522 |
VIS, ensemble bobine |
| 17 |
0513029 |
SPACER |
| 18 |
0513870 |
PAD, Ignition module |
| 19 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 20 |
0332063 |
PLATE, Support |
| 21 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 22 |
0337521 |
SCREW, Module |
| 23 |
0584488 |
IGNITION MODULE This part replaces 0583667. |
| 30 |
0513109 |
TUBING, Models leads |
| 33 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 34 |
0584333 |
CHARGE COIL & LAM. ASSY. |
| 37 |
0583285 |
PLAT & SLEEVE ASSY. |
| 38 |
0511460 |
VIS, dispositif de retenue |
| 40 |
0439954 |
RETAINER, CAM & LINK Assy This part replaces 0434154. |
| 43 |
0584342 |
STATOR ASSEMBLY, DC |
| 48 |
0329182 |
VIS, borne |
| 49 |
0511949 |
BORNIER |
| 51 |
0173692 |
RECTIFIER ASSEMBLY, DC |
| 53 |
0334245 |
RETAINER |
