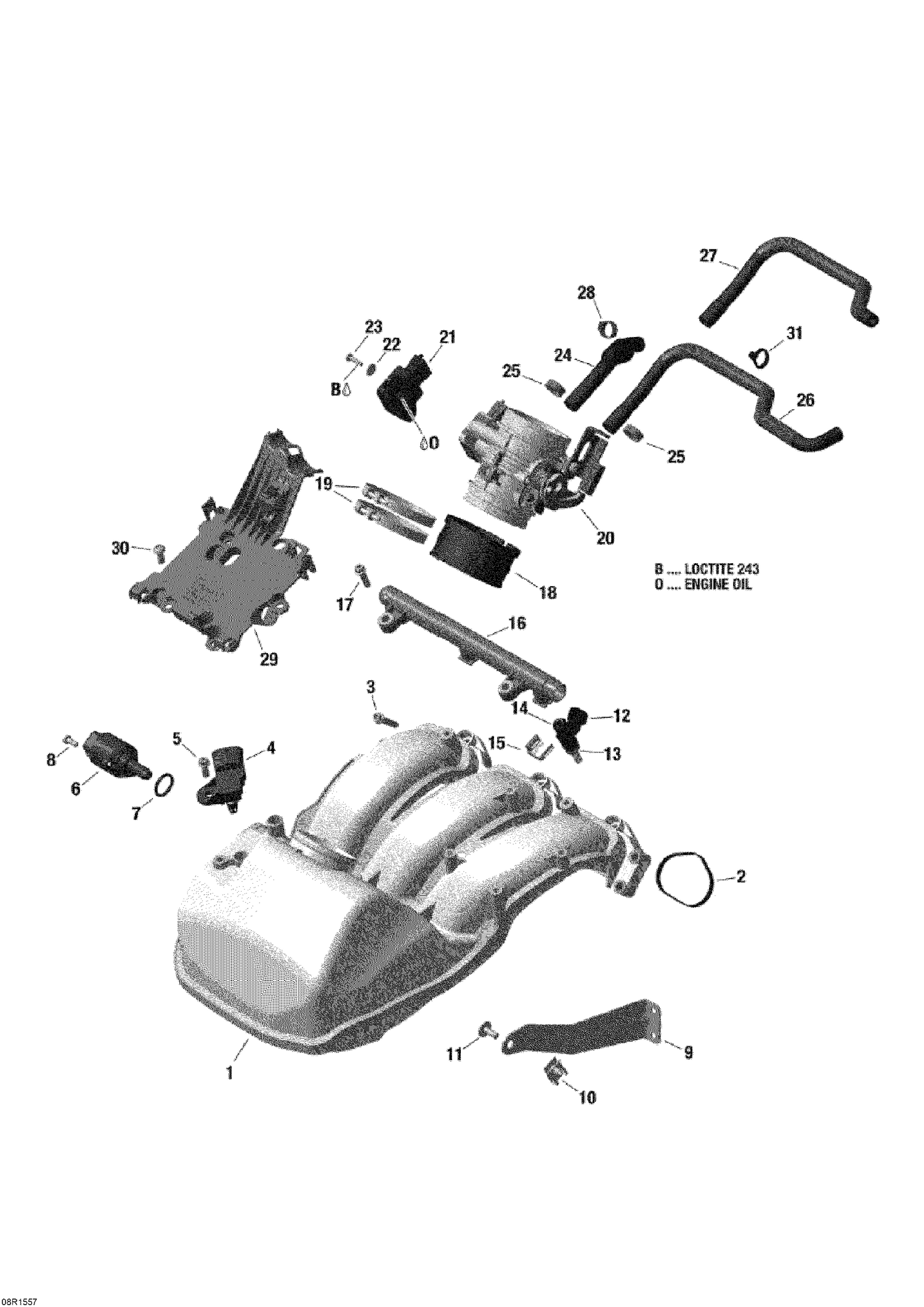

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| 3 |
420440647 |
Torx Flange Screw M6 X 30 |
| 4 |
707000995 |
Pressure And Temperature Sensor |
| 5 |
420440162 |
Torx Flange Screw M6 X 16 |
| 6 |
420665941 |
Idle Air Control Valve This part replaces 420665940. |
| 8 |
420640086 |
Torx Screw M5 X 12 This part replaces 420640081. |
| 9 |
420951011 |
SUPPORT - Call your local BRP dealership |
| 10 |
420942108 |
Panel Nut M6 X 1 |
| 11 |
420241524 |
Torx Screw M6 X 16 |
| 15 |
420853030 |
Injector Clip |
| 16 |
420874810 |
Fuel Rail |
| 17 |
420440234 |
Torx Flange Screw M6 X 25 |
| 18 |
420460490 |
INTAKE ADAPTOR - Call your local BRP dealership |
| 19 |
420251209 |
Clamp |
| 21 |
420866120 |
Position Sensor This part replaces 270000251. |
| 22 |
234042600 |
Flat Washer 4 mm, Stainless |
| 23 |
208641660 |
Phillips Screw M4 X 16 |
| 24 |
420460482 |
MOLDED HOSE - Call your local BRP dealership |
| 25 |
293650125 |
Oetiker Clamp |
| 26 |
420822662 |
MOLDED HOSE - Call your local BRP dealership |
| 27 |
420851458 |
Clamp |
| 28 |
420910331 |
BASE PLATE - Call your local BRP dealership |
| 29 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
