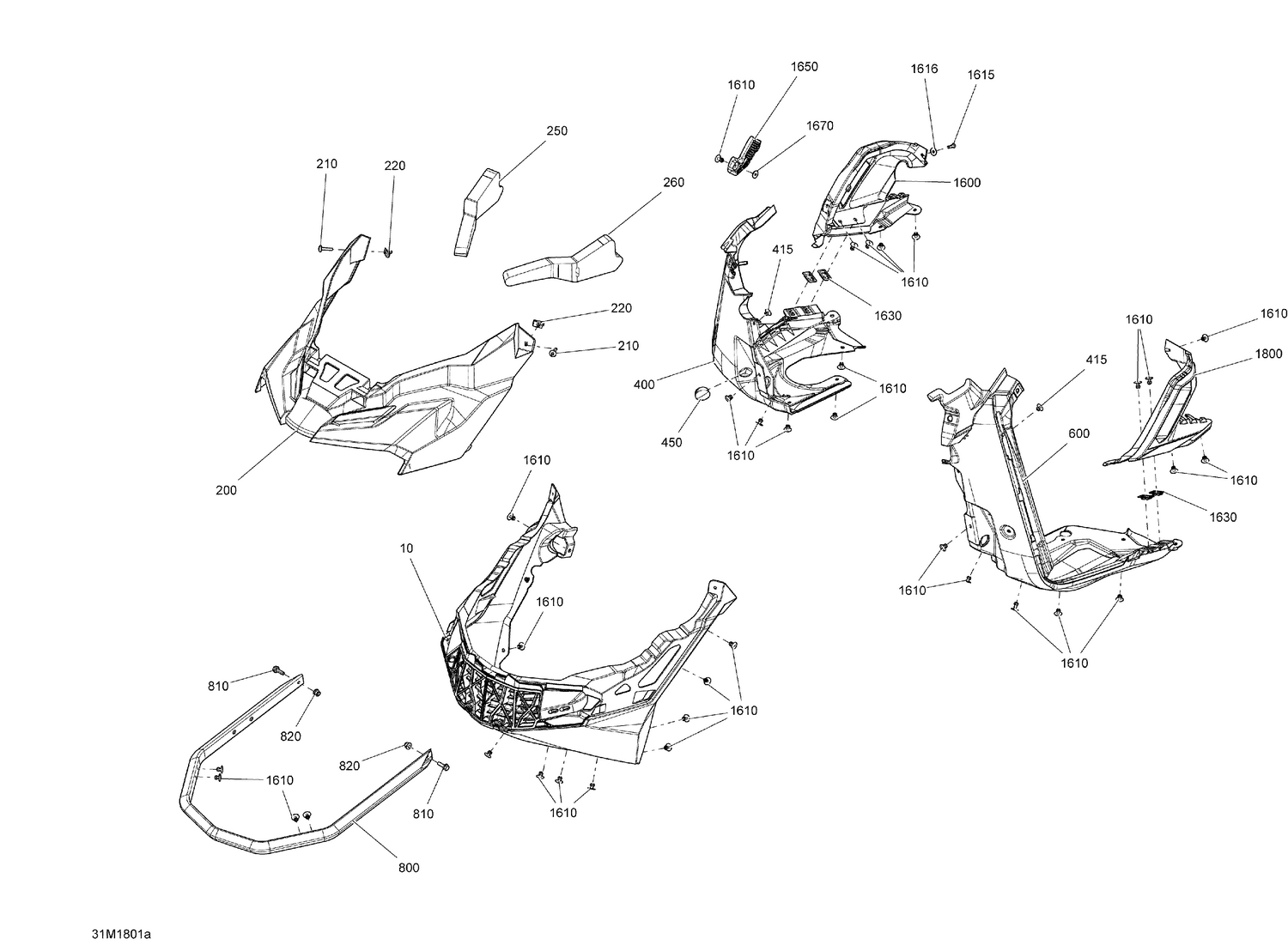

09- Bottom Pan - 1200 4-TEC
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 210 | 250000587 | Torx Screw M5 X 26 |
| 220 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 250 | 502007263 | RH Bottom Pan Cap Foam |
| 260 | 502007264 | LH Bottom Pan Cap Foam |
| 400 | 502007340 | Black RH Bottom Pan |
| 415 | 293150103 | Pop Rivet 3/16" |
| 450 | 414916600 | Black, Nylon Cap |
| 600 | 502007175 | Black LH Bottom Pan |
| 800 | 502007281 | Black Front Bumper |
| 810 | 207662044 | Hex. Flange Screw M6 X 20 |
| 820 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1615 | 250000652 | Socket Screw M5 X .80 X 16 |
| 1616 | 250200025 | Washer M5 |
| 1630 | 517305109 | Rivet Plate |
| 1650 | 517305280 | Stopper Bumper |
| 1670 | 517124300 | Washer |
