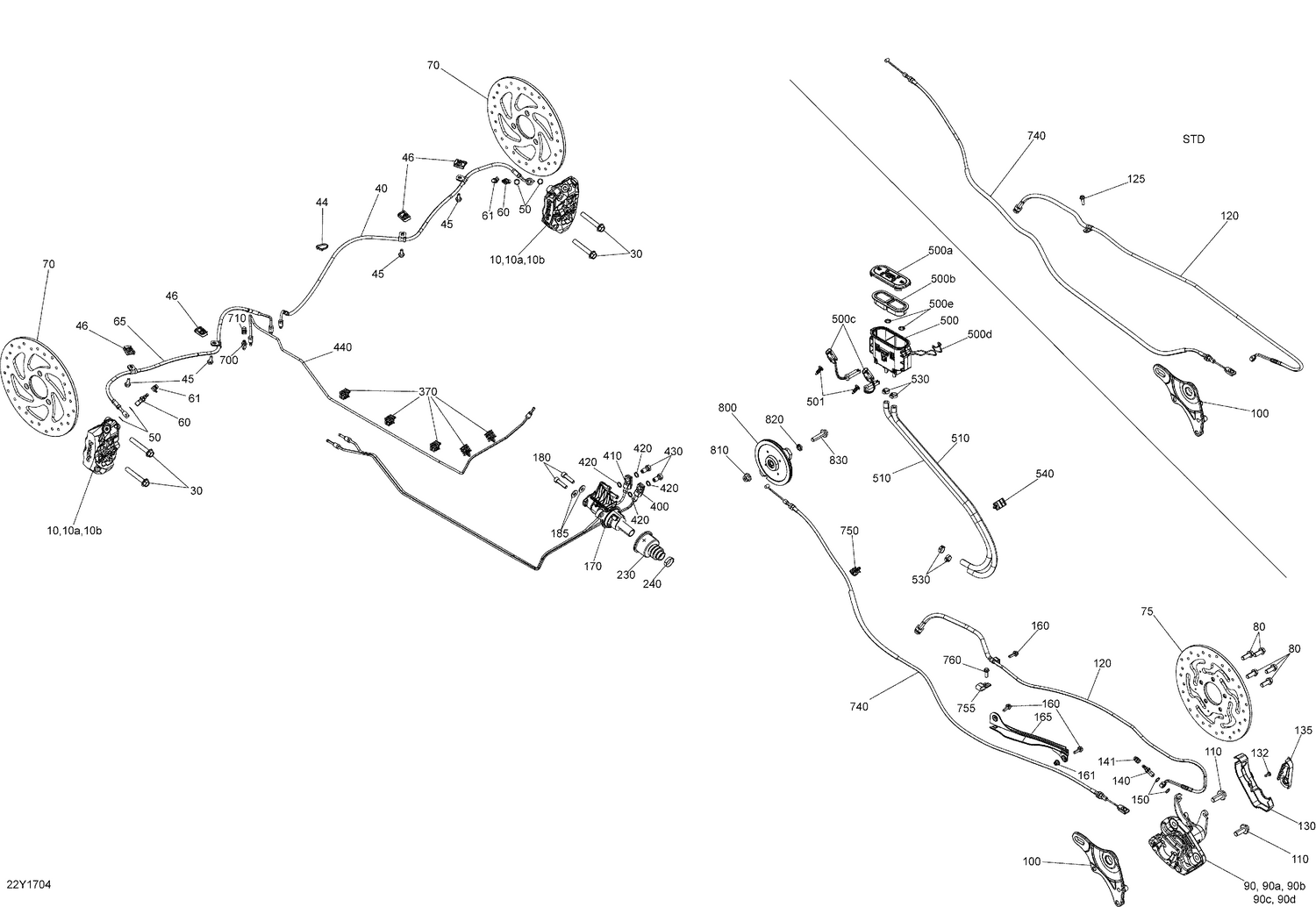

06- Hydraulic Brake - All Models
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219800237 | Brake Pad Kit |
| 10b | 219800238 | Spring/Pin/Clip Kit |
| 30 | 207506556 | Hex Flange Screw M10 X 65 |
| 40 | 705601254 | RH Front Hose |
| 44 | 293750008 | Tie Wrap 368 mm |
| 45 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 46 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 50 | 414920600 | Washer |
| 60 | 705601201 | Banjo Bolt/ Bleeder |
| 61 | 705601190 | Bleeder Bolt Cap |
| 65 | 705601471 | Boyau Avant GA |
| 70 | 705601631 | Front Brake Disk This part replaces 705600955. |
| 75 | 705601632 | Rear Brake Disk This part replaces 705601300. |
| 80 | 250001054 | Hex. Flange Screw M10 X 25 This part replaces 250000562. |
| 90a | 219800239 | Brake Pad Kit |
| 90b | 219800240 | Spring/Pin/Clip Kit |
| 90c | 219800241 | Rear Cable Support Kit |
| 90d | 219800242 | Rear Dust Cover |
| 110 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip |
| 140 | 705601201 | Banjo Bolt/ Bleeder |
| 141 | 705601190 | Bleeder Bolt Cap |
| 150 | 414920600 | Washer |
| 170 | 705600722 | Tandem Cylinder Master |
| 180 | 250001117 | Screw-Socket Cap S.Grip M8 X 30 This part replaces 205583087. |
| 185 | 506151245 | Washer |
| 230 | 705600716 | Bellow |
| 240 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 370 | 705601987 | Anchorage Tube This part replaces 705601513. |
| 400 | 705601157 | Tandem Rigid Tube |
| 410 | 705601158 | Tandem Rigid Tube |
| 420 | 414920600 | Washer |
| 430 | 507032551 | Banjo Bolt |
| 440 | 705601159 | Rear Brake Rigid Tube |
| 495 | 205061644 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 500a | 219800350 | Diaphragm Cover Ass'y |
| 500b | 219800350 | Diaphragm Cover Ass'y |
| 500c | 705601073 | Oil Level Sensor |
| 500d | 705601294 | Spindle Lock |
| 500e | 211100002 | Push Nut |
| 501 | 710002033 | Connector Holder |
| 510 | 705601236 | Formed Hose |
| 530 | 293650047 | Crimp Clamp, 15.3-706R |
| 540 | 709000571 | Hose Support |
| 700 | 705600502 | Bleeder Screw |
| 710 | 705601190 | Bleeder Bolt Cap |
| 755 | 515175507 | Open Clamp |
| 760 | 210262050 | Hexagonal Head Screw |
| 800 | 705601973 | Pulley Cable Ass'y This part replaces 705600768. |
| 810 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 820 | 293900087 | Bushing |
