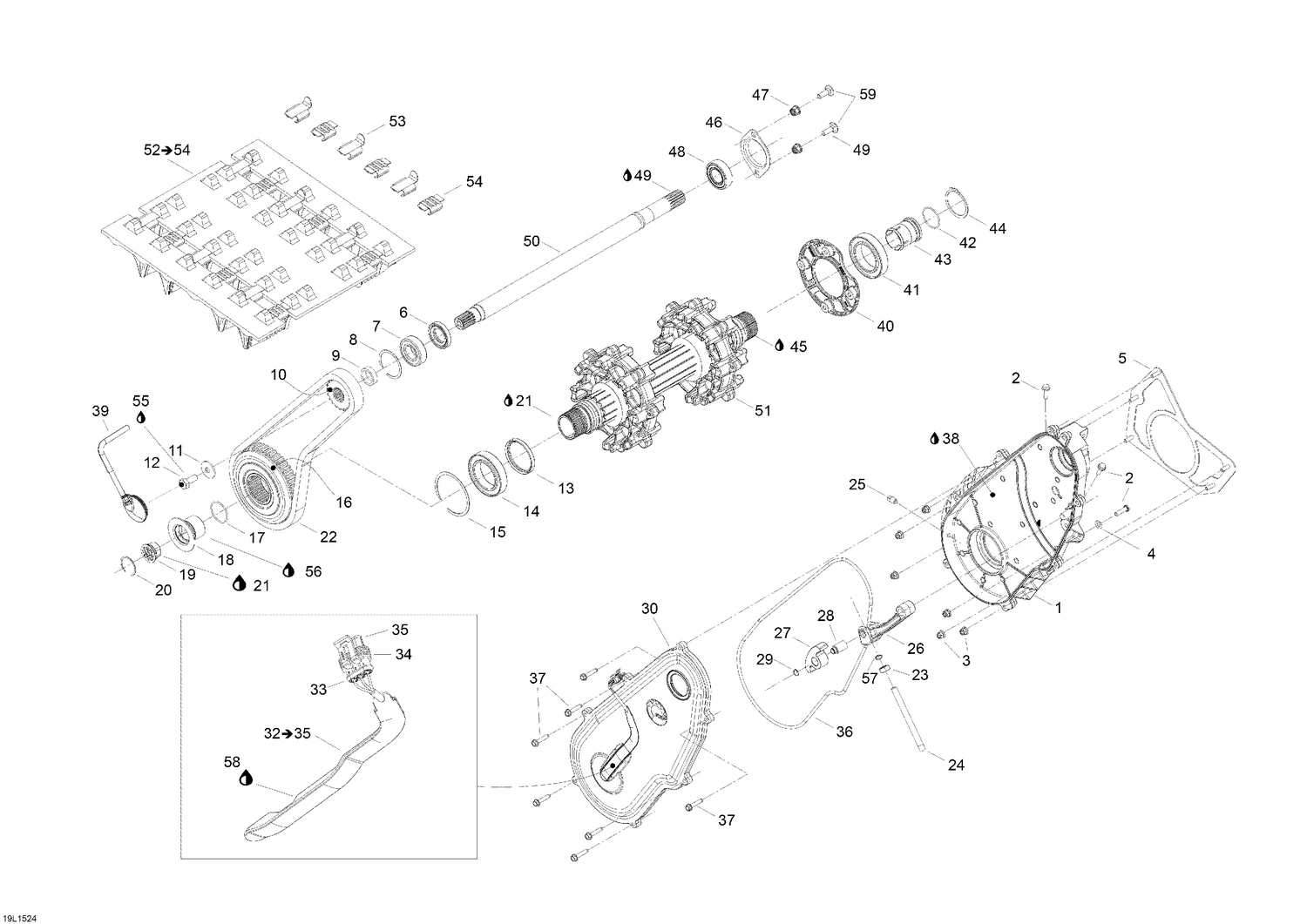

05- Drive System
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 234061410 | Flat Washer 6 mm |
| 5 | 518325816 | Plate Ass'y |
| 6 | 293200168 | Oil Seal This part replaces 293250175. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | 504152628 | Shim |
| 11 | 504152784 | Spring Washer M10 |
| 12 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 13 | 293200159 | Oil Seal This part replaces 504152571. |
| 14 | 293350059 | Ball Bearing |
| 15 | 504152582 | Circlip |
| 16 | 504153598 | SPROCKET_49 TEETH ASSY - Call your local BRP dealership This part replaces 504153196. |
| 17 | 293300122 | O Ring |
| 18 | 504152802 | THREADED CAP - Call your local BRP dealership |
| 19 | 504152794 | Magnetic Adaptor |
| 20 | 293370052 | Circlip |
| 21 | 619590193 | Synthetic Grease, 400 g |
| 22 | 504152630 | Drive Chaine 106 Links |
| 23 | 232006414 | Hex Nut M10 |
| 24 | 504152602 | Adjusting Screw |
| 25 | 504152854 | Magnetic Plug |
| 26 | 504153429 | Chain Tensioner This part replaces 504152685. |
| 27 | 504152739 | Chain Slider |
| 28 | 504152841 | Tensioner Axle |
| 29 | 504152282 | Circlip |
| 30 | 504153410 | Cover Ass´y This part replaces 504153335. |
| 32 | 504152896 | Rotation Sensor |
| 34 | 409209600 | Female Housing, 3 Circuits |
| 35 | 278001014 | Female Terminal |
| 36 | 293300130 | O Ring |
| 37 | 210263050 | Hex. HD Forming Screw M6 x 30 This part replaces 210263080. |
| 38 | 619590193 | Synthetic Chaincase Oil, 12 X 355 ml |
| 39 | 504152861 | Filler Cap assy |
| 40 | 504153886 | Retaining Ring This part replaces 504152949. |
| 41 | 293350059 | Ball Bearing |
| 42 | 293300122 | O-ring |
| 43 | 504152619 | Cap |
| 44 | 504152572 | Circlip |
| 45 | 619590193 | Synthetic Grease, 400 g |
| 46 | 504153185 | Bearing housing |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
| 48 | 293350074 | Ball Bearing |
| 49 | 619600013 | Loctite 8151, Antiseize Lubricant |
| 50 | 504153166 | COUNTERSHAFT - Call your local BRP dealership |
| 51 | 504153084 | Drive Axle ass`y 8T |
| 53 | 415129528 | Track Guide |
| 54 | 504152651 | Cleat |
| 55 | 619600011 | Loctite 271 |
| 56 | 293800060 | Loctite 243 |
| 57 | 293200128 | Seal usit |
| 58 | 293800081 | Loctite 5910, 300 ml |
