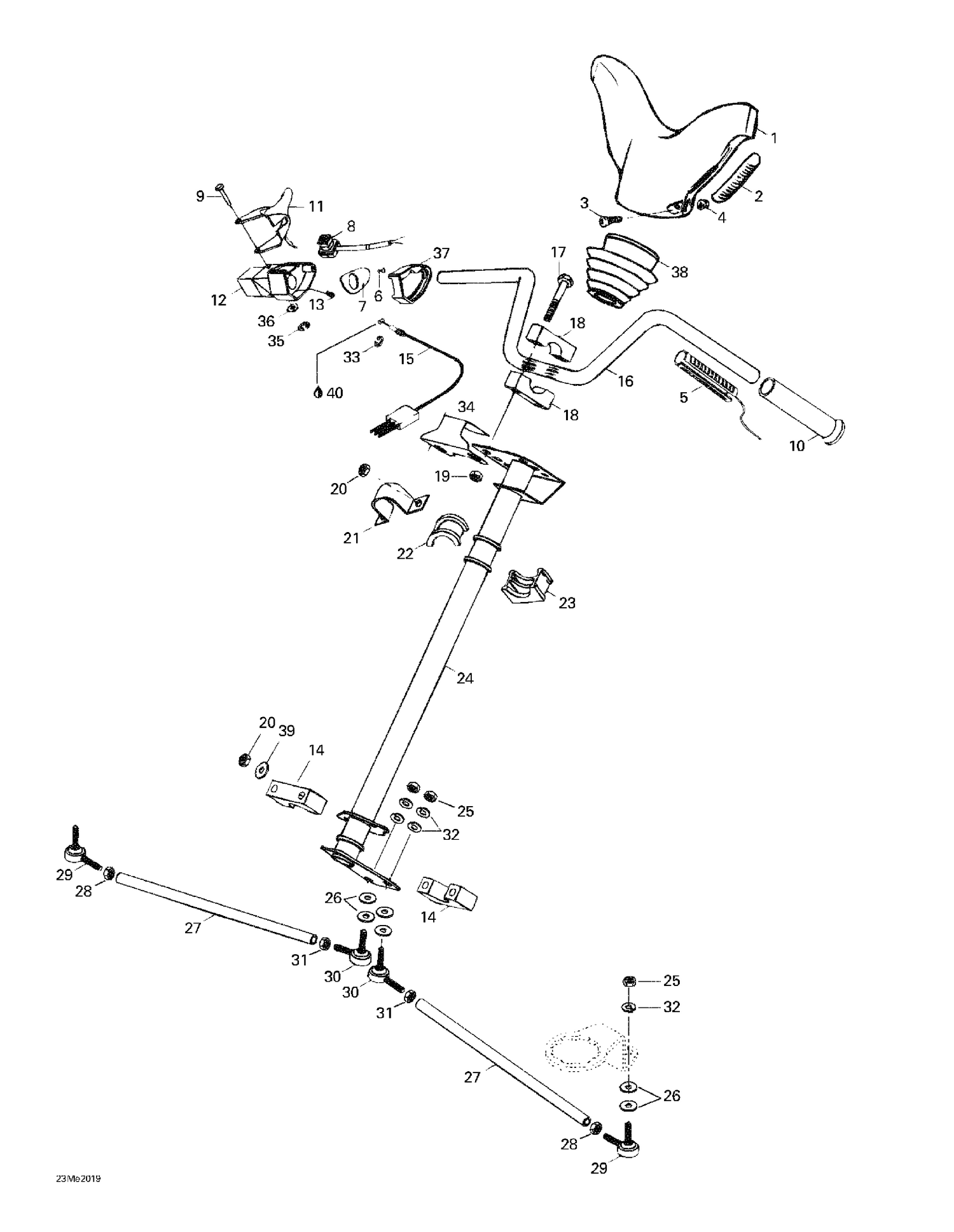

| Ref | Part Number | Description |
|---|
| M5441066 |
Tie |
Rod LH M5441066 |
| 1 |
572023800 |
Steering Padding |
| 2 |
572023900 |
Key Way |
| 3 |
M40156 |
Screw |
| 4 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 5 |
544345 |
Heather Assy - Call your local BRP dealership This part replaces M544345. |
| 6 |
414473200 |
Screw |
| 7 |
512060390 |
Plate This part replaces 572099400. |
| 8 |
515177362 |
Emergency Stop Switch This part replaces 414612700. |
| 9 |
414438700 |
Lever Pin |
| 10 |
506152483 |
Grip This part replaces M5340464. |
| 11 |
M5442276 |
HANDLE-ASS. - Call your local BRP dealership |
| 12 |
512060603 |
Throttle Housing This part replaces 572086700. |
| 13 |
414440800 |
Socket Set Screw M8 X 10 |
| 14 |
M5343947 |
Bushing Ass'y |
| 15 |
5244975 |
Throttle Cable - Call your local BRP dealership This part replaces M5244975. |
| 16 |
M529751 |
BAR-HANDLE - Call your local BRP dealership |
| 17 |
M40286 |
Socket Head Screw M8 X 45 |
| 18 |
M548448 |
Support Guidon *Support-Steer. |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 21 |
M5343381 |
Retaining Support |
| 22 |
572064500 |
BUSHING - Call your local BRP dealership |
| 23 |
572064400 |
Bushing |
| 25 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 26 |
M31014 |
Washer |
| 27 |
M548983 |
Rh Tie Rod |
| 28 |
M33019 |
RH NUT - Call your local BRP dealership |
| 29 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 30 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 31 |
M33017 |
LH NUT - Call your local BRP dealership |
| 32 |
M20015 |
Lock Washer |
| 33 |
M31038 |
Circlip |
| 34 |
M5444196 |
Support |
| 35 |
414439000 |
Circlip |
| 36 |
234051600 |
Flat Washer M5, Stainless This part replaces 414438900. |
| 37 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 39 |
M2004 |
Washer |
