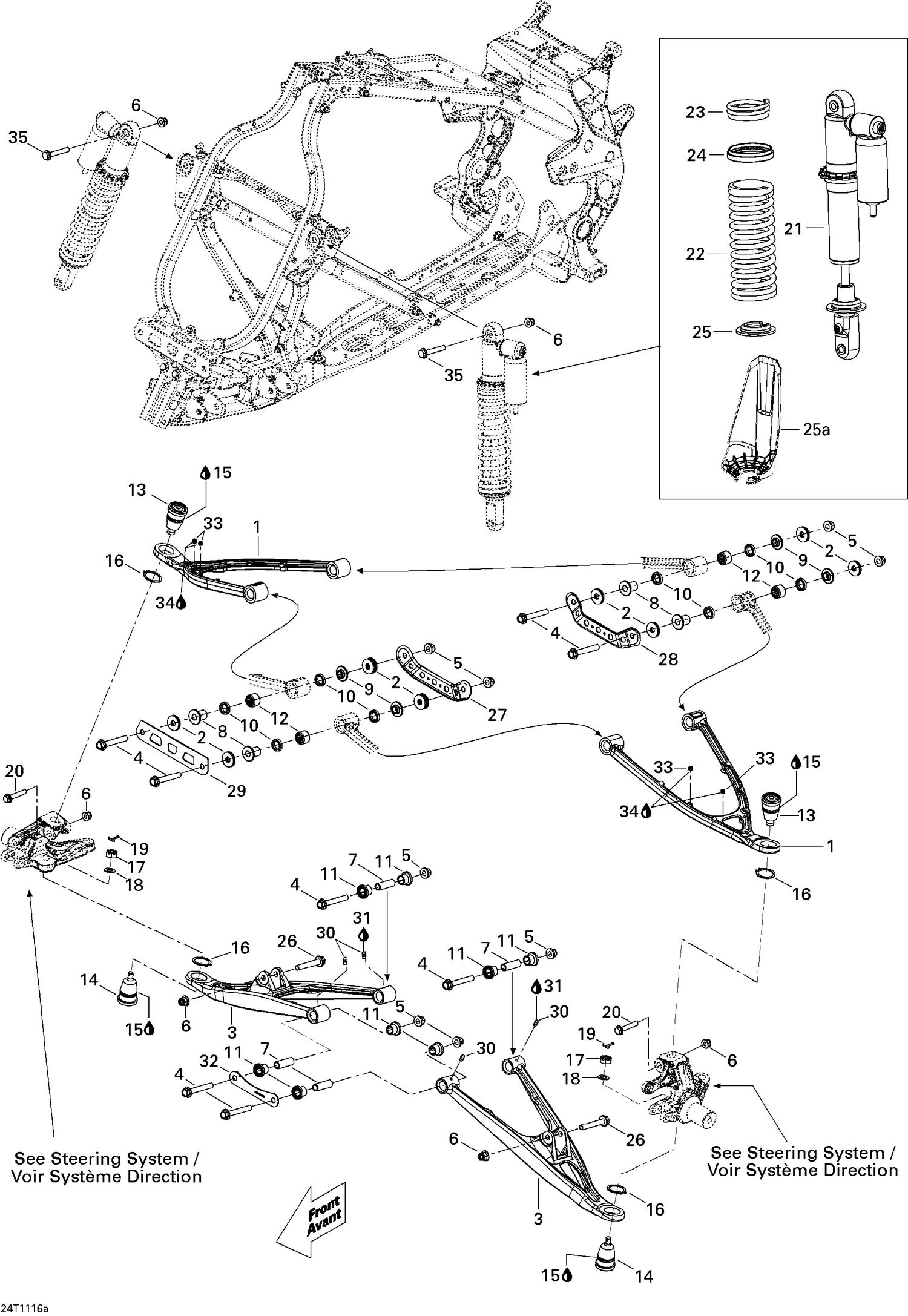

| Ref | Part Number | Description |
|---|
| 1 |
706200864 |
UPPER ARM - Call your local BRP dealership |
| 2 |
250200014 |
Flat Washer M10 |
| 3 |
706200456 |
LOWER ARM - Call your local BRP dealership |
| 4 |
207607036 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 5 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 6 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 7 |
706201587 |
Sleeve This part replaces 706200678. |
| 8 |
706200888 |
Inner Bushing |
| 9 |
706200889 |
INNER BUSHING - Call your local BRP dealership |
| 10 |
293200120 |
SEAL - Call your local BRP dealership |
| 11 |
706200181 |
Bushing |
| 12 |
293350064 |
Needle Bearing |
| 13 |
706200462 |
UPPER BALL JOINT - Call your local BRP dealership |
| 14 |
706200461 |
LOWER BALL JOINT - Call your local BRP dealership |
| 15 |
413703100 |
Loctite 609, 10 ml |
| 16 |
293370009 |
Circlip 32 mm |
| 17 |
250100094 |
CASTLE NUT - Call your local BRP dealership |
| 18 |
234001410 |
Flat Washer 10 mm |
| 19 |
250400035 |
Cotter Pin |
| 20 |
207605534 |
Hex. Flange Screw |
| 21 |
706200531 |
FRONT SHOCK - Call your local BRP dealership |
| 22 |
706200830 |
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 23 |
706200873 |
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 24 |
503191281 |
Spring Spacer |
| 25 |
706000528 |
SPRING STOPPER - Call your local BRP dealership |
| 25a |
706201286 |
ROD PROTECTOR - Call your local BRP dealership |
| 26 |
207606534 |
HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership |
| 27 |
706200532 |
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 28 |
706200532 |
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 29 |
706200759 |
Plate |
| 30 |
250000315 |
Grease Fitting |
| 31 |
293550010 |
Synthetic Grease, 400 G |
| 32 |
706200722 |
Front Suspension Lower Plate |
| 33 |
206260699 |
Socket Set Screw M6 X 6 |
| 34 |
293800060 |
Loctite 243, 10 ml |
