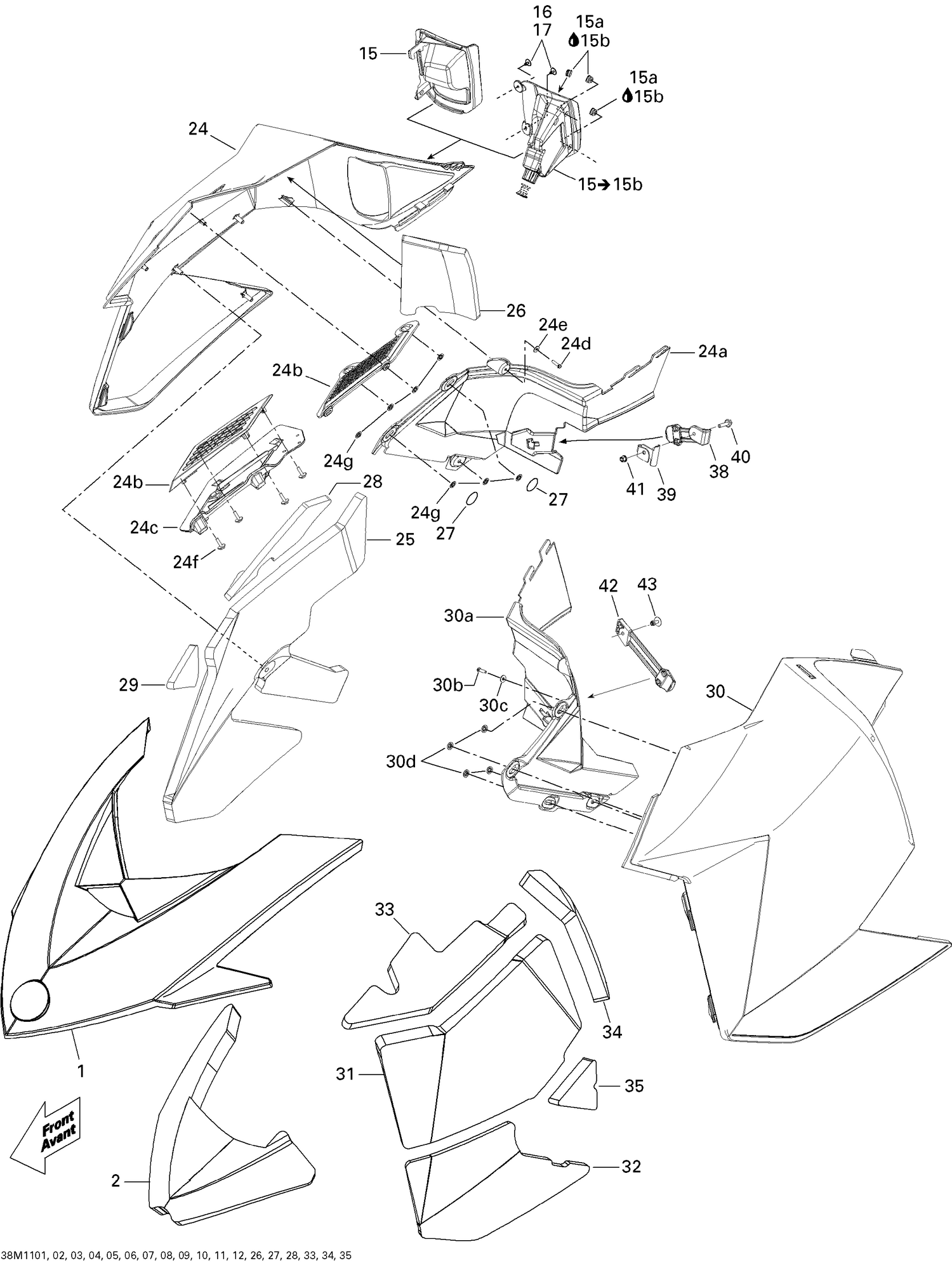

09- Hood — Parts Catalog

Ref	Part Number	Description
1	517304615	HOOD B-293 - Call your local BRP dealership
2	517304913	Hood Foam This part replaces 517304881.
17	XXX	Not Available As Spare Parts
24a	517303671	Deep Black RH Moulding Panel
24d	241141660	Hex. Flange Screw K40 X 16
24e	234042600	Flat Washer 4 mm, Stainless
24f	250000725	Screw M4 X 16 This part replaces 250000113.
24g	732610072	Push Nut
25	517304883	RH Center Foam
26	517304884	RH Panel Rear Foam
27	518325560	Adhesive Patch
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	517304030	Deep Black, LH Panel
30a	517303673	Deep Black, LH Moulding Panel
30b	241141660	Hex. Flange Screw K40 X 16
30c	234042600	Flat Washer 4 mm, Stainless
30d	732610072	Push Nut
31	517304887	LH Panel Center Foam
32	517304888	LH Panel Lower Foam
33	517304889	LH Panel Upper Foam
34	517304890	LH Panel Rear Foam
35	517304891	Foam
38	517303612	RH Panel Latch
39	517304221	Latch Support
40	207652044	Hex.Flange Screw M5 X 20
41	233251434	Flange Elastic Nut M5 This part replaces 233251414.
42	517303808	LH Panel Latch
