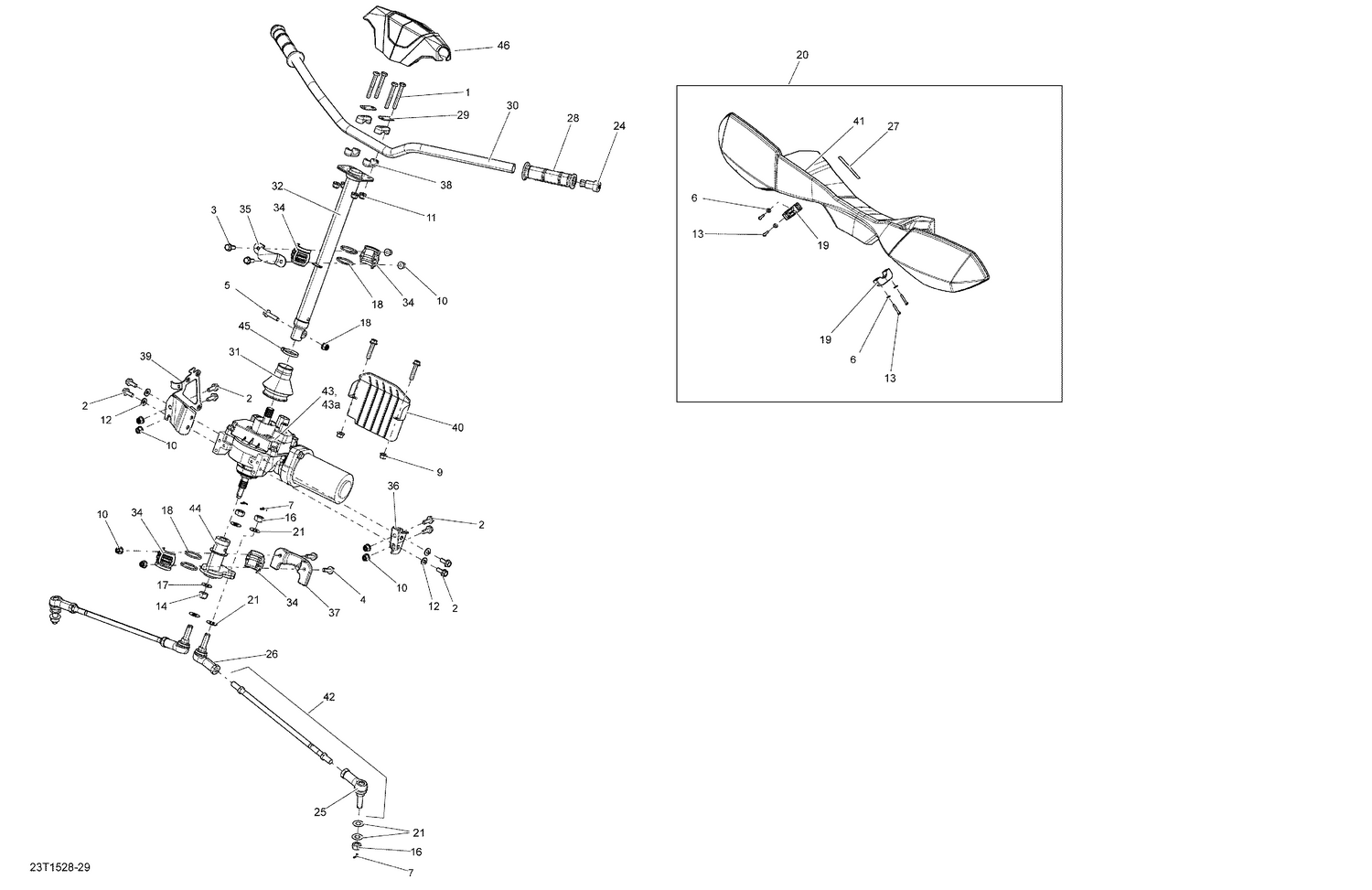

07- Steering _23T1529
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207086046 | Hex. Screw M8 X 60 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 3 | 207682044 | Hex. Flange Screw M8 X 20 |
| 4 | 207682544 | Hex. Flange Screw M8 X 25 |
| 5 | 207683544 | Hex. Flange Screw M8 X 35 |
| 6 | 211200035 | Flat Washer |
| 7 | 211400013 | Cotter Pin |
| 9 | 233081416 | Hex. Flange Nut M8 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 233281416 | Hex. Elastic Flange Nut M8 |
| 12 | 234281474 | Conical Spring Washer M8 |
| 13 | 241142560 | Hex. Flange Screw K40 X 25 |
| 14 | 250000047 | Hex. Flange Elastic Nut M12 |
| 16 | 250100099 | Nut M12 |
| 17 | 706200281 | Hardened Washer This part replaces 250200086. |
| 18 | 293300068 | O-Ring |
| 19 | 517303264 | U-Clamp |
| 21 | 706200281 | Hardened Washer This part replaces 250200086. |
| 24 | 709400449 | End Piece |
| 25 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 26 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 27 | 704902966 | DPS Decal |
| 28 | 709400493 | Handle Grip |
| 29 | 709400509 | Stiffner |
| 30 | 709401240 | Black, Handlebar |
| 31 | 709400674 | Bellows |
| 32 | 703501137 | Kit Tube-Main. This part replaces 709400703. |
| 34 | 709400783 | Spherical Half Bushing |
| 35 | 709400827 | Upper Column Attachment |
| 36 | 709400848 | Power Steering Module Bracket |
| 37 | 709401428 | Column Attachment This part replaces 709400912. |
| 38 | 709400919 | Steering Support |
| 39 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 40 | 709401005 | HEAT DEFLECTOR - Call your local BRP dealership |
| 41 | 709400822 | Handle Bar Protector |
| 42 | 703501038 | Tie Rod Ass`y This part replaces 703500783. |
| 43 | 709401608 | Power Steering This part replaces 709401182. |
| 43a | 709401573 | Calibration Electronic Module DPS |
| 44 | 709401320 | Lower Steering Tube, Black |
| 45 | 293750009 | Tie-Rap 173 mm |
