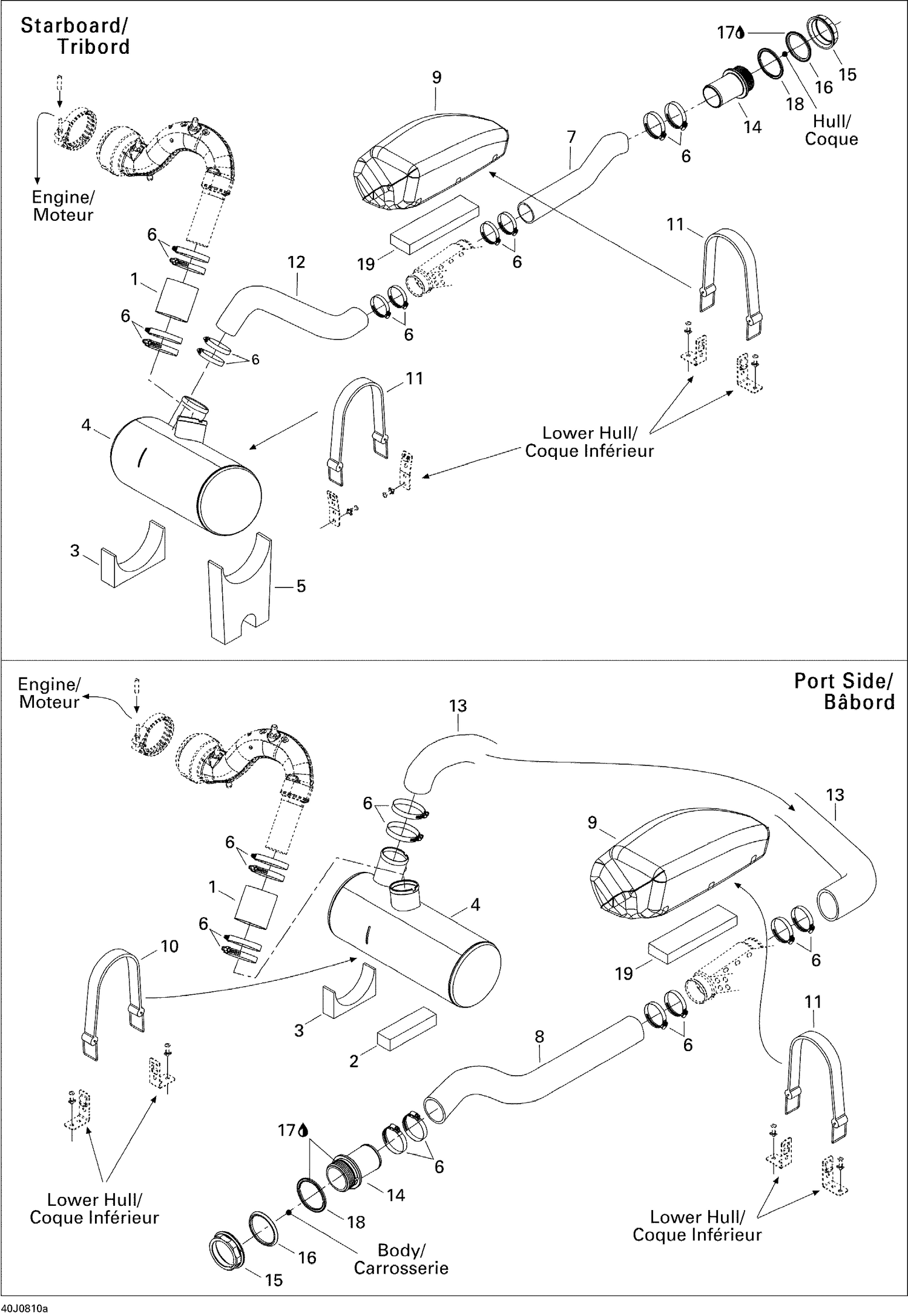

| Ref | Part Number | Description |
|---|
| 1 |
274001302 |
Exhaust Hose |
| 2 |
204340443 |
RESONATOR SUPPORT - Call your local BRP dealership |
| 3 |
204340421 |
Muffler Support |
| 4 |
204340490 |
COATED MUFFLER - Call your local BRP dealership |
| 5 |
204340420 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 6 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 7 |
204340459 |
EXHAUST HOSE - Call your local BRP dealership |
| 8 |
204340469 |
EXHAUST HOSE - Call your local BRP dealership |
| 9 |
274001045 |
RH Resonator |
| 10 |
293850097 |
Retainer Strap |
| 11 |
293850022 |
STRAP - Call your local BRP dealership |
| 12 |
204340473 |
EXHAUST HOSE - Call your local BRP dealership |
| 13 |
204340474 |
EXHAUST HOSE - Call your local BRP dealership |
| 14 |
204340393 |
Exhaust Outlet |
| 15 |
274000224 |
Nut 72 mm |
| 16 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 17 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 18 |
293250041 |
GASKET - Call your local BRP dealership |
