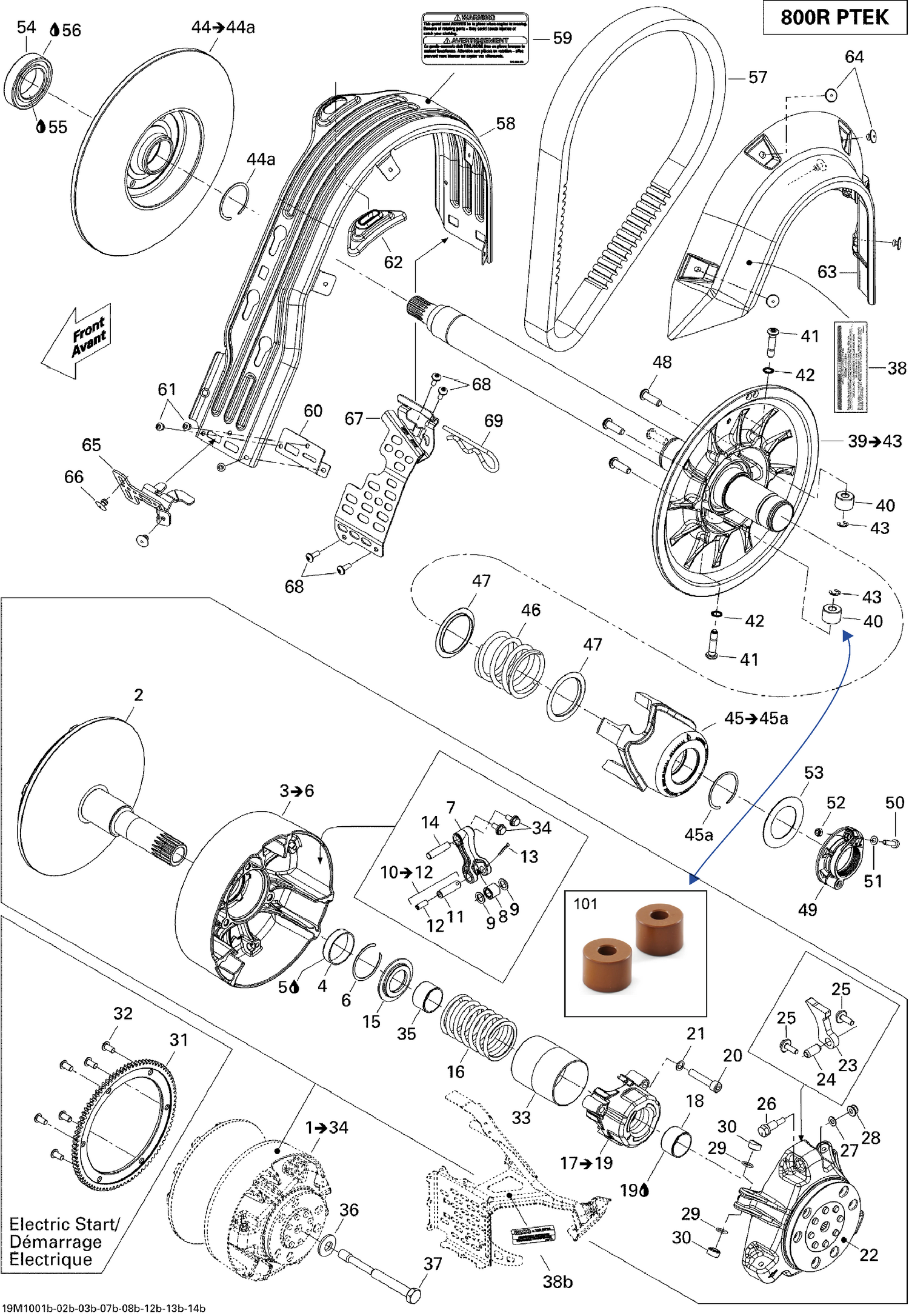

05- Pulley System 800R PTEK
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222966 | Fixed Flange Ass'y |
| 4 | 417223086 | Bushing |
| 5 | 219702967 | Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 11 | XXX | Not Available As Spare Parts |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417223164 | Lever Axle |
| 15 | 417222312 | Spring Seat |
| 16 | 415034900 | Spring, Violet/blue |
| 18 | 417009204 | Bushing |
| 19 | 413703100 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417223200 | GOVERNOR CUP ASS'Y - Call your local BRP dealership |
| 23 | 417222546 | Ramp 414 |
| 24 | 250400050 | Spring Pin M10 X 22 |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 26 | 417223197 | CALIBRATION SCREW - Call your local BRP dealership |
| 27 | 417005600 | Washer |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe This part replaces 420460045. |
| 31 | 417225071 | Ring Gear_Starter This part replaces 417222952. |
| 32 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 33 | 417009205 | Guard |
| 34 | 250000416 | Serrated Hex. Flange Bolt M6 |
| 35 | 417222826 | BUSHING - Call your local BRP dealership |
| 36 | 250200006 | Spring Washer 14 mm |
| 37 | 417300296 | DRIVE PULLEY BOLT - Call your local BRP dealership This part replaces 417300394. |
| 38 | 516003708 | DECAL, NOTICE, DRIVE PULLEY BOLT - Call your local BRP dealership |
| 38b | XXX | Not Available As Spare Parts |
| 40 | 417127016 | Pulley Roller |
| 41 | 417127259 | Pivot Stud This part replaces 417127128. |
| 42 | 250200009 | Lock Washer 8 mm |
| 43 | 414753500 | Circlip |
| 44a | 293370049 | Circlip |
| 45a | 293370049 | Circlip |
| 46 | 417127137 | Green, Spring |
| 47 | 417127116 | Swivel Abutment |
| 48 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 49 | 415129604 | Calibration Ass'y This part replaces 417127173. |
| 50 | 208652044 | Phillips Screw M5 X 20 |
| 51 | 234051410 | Flat Washer M5 |
| 52 | 232551414 | Elastic Stop Nut M5 |
| 53 | 417127155 | Washer |
| 54 | 504152574 | Ball Bearing |
| 55 | 413703100 | Loctite 609, 10 ml |
| 56 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 57 | 417300551 | Drive Belt This part replaces 417300383. |
| 58 | 417300357 | Belt Guard |
| 59 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 60 | 417300380 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Guide |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16" |
| 65 | 417300360 | FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 66 | 293150104 | Pop Rivet 3/16" |
| 67 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300375. |
| 68 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 69 | 114045200 | Hair Pin |
