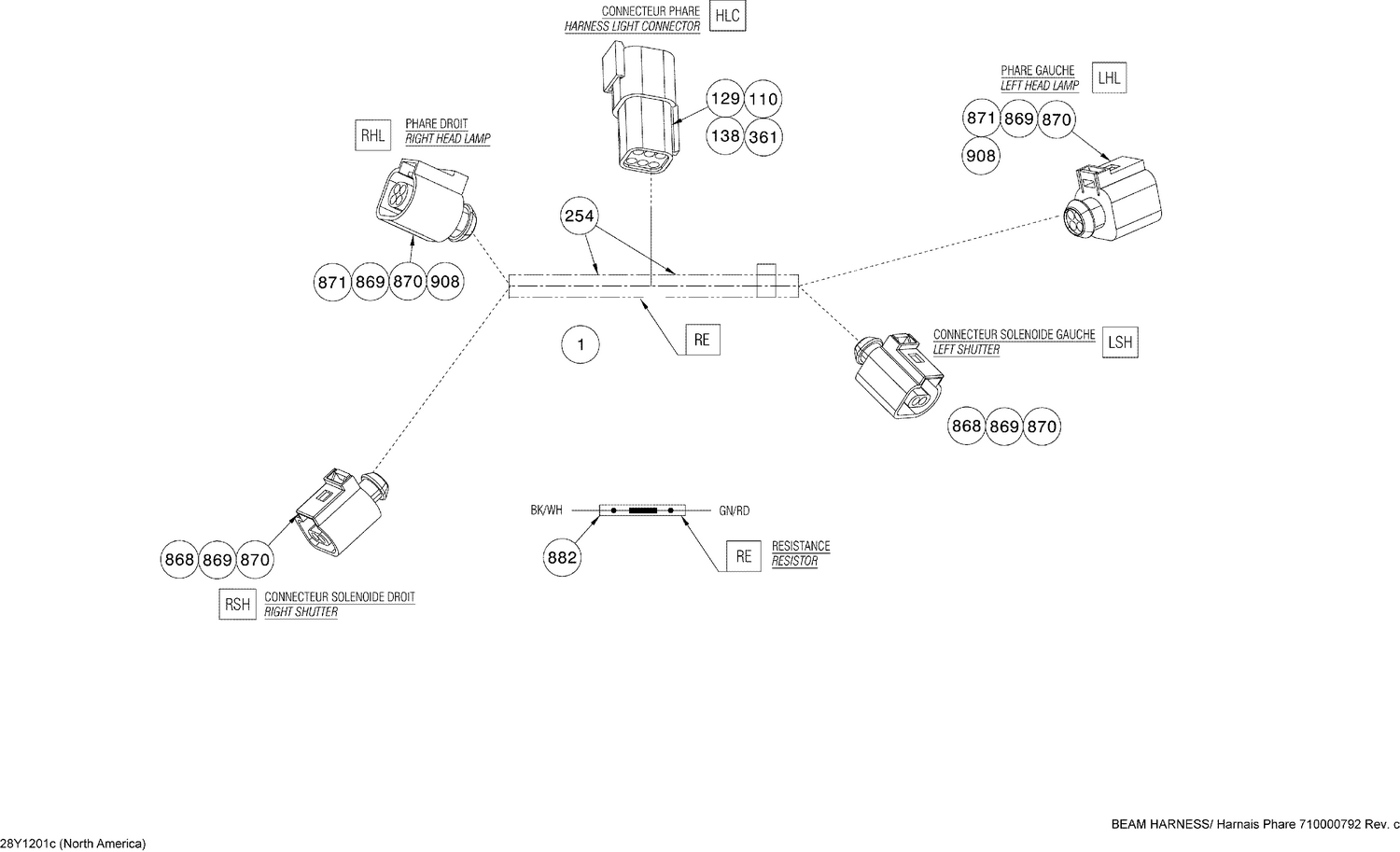

| Ref | Part Number | Description |
|---|
| 1 |
710000792 |
BEAM HARNESS ASS'Y - Call your local BRP dealership |
| 110 |
278000631 |
Male Terminal |
| 129 |
278000735 |
Female Lock, 6 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 361 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 868 |
710001184 |
Housing |
| 869 |
710001185 |
FEMALE TERMINAL - Call your local BRP dealership |
| 870 |
710001186 |
SEAL-WIRE - Call your local BRP dealership |
| 871 |
710001187 |
HOUSING - Call your local BRP dealership |
| 882 |
710001205 |
RESISTOR - Call your local BRP dealership |
