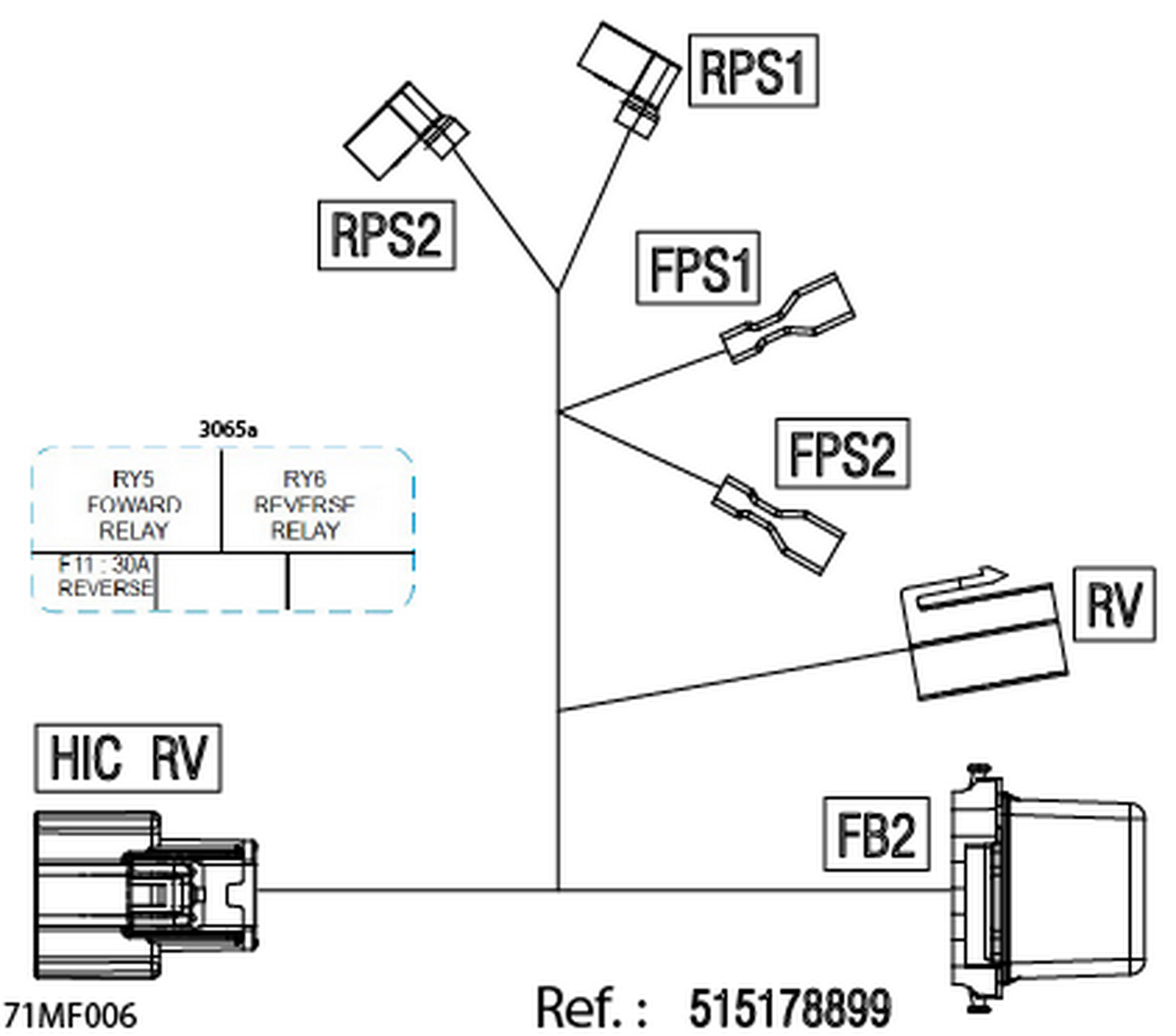

08- Electric - Reverse Wiring Harness - 515178899
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| F11 | 710000747 | Little Fuse, 30 Amperes |
| FB2 | 278000218 | Wire Seal |
| FB2 | 278001065 | Wire Seal |
| FB2 | 278002285 | Fuse Box Ass'y |
| FB2 | 278002286 | Fuse Box Cover |
| FB2 | 278002578 | Female Terminal |
| FB2 | 278002880 | Seal Plug |
| FB2 | 516010500 | Fuses Decal |
| FB2 | 710000890 | Female Terminal |
| FB2 | 710000918 | Female Terminal |
| FPS | 515177460 | Switch Ass'y |
| FPS1 | 710000082 | Female Terminal |
| FPS2 | 710000082 | Female Terminal |
| RPS | 515177460 | Switch Ass'y |
| RPS1 | 710004858 | Female Terminal |
| RPS2 | 710004858 | Female Terminal |
| RV | 515175282 | Female Terminal |
| RV | 515176550 | Female Terminal Housing |
| RY5 | 515176774 | Relay, 30 AMP |
| 3065 | 515178899 | Reverse Wiring Harness |
| 3065a | 516010500 | Fuses Decal |
