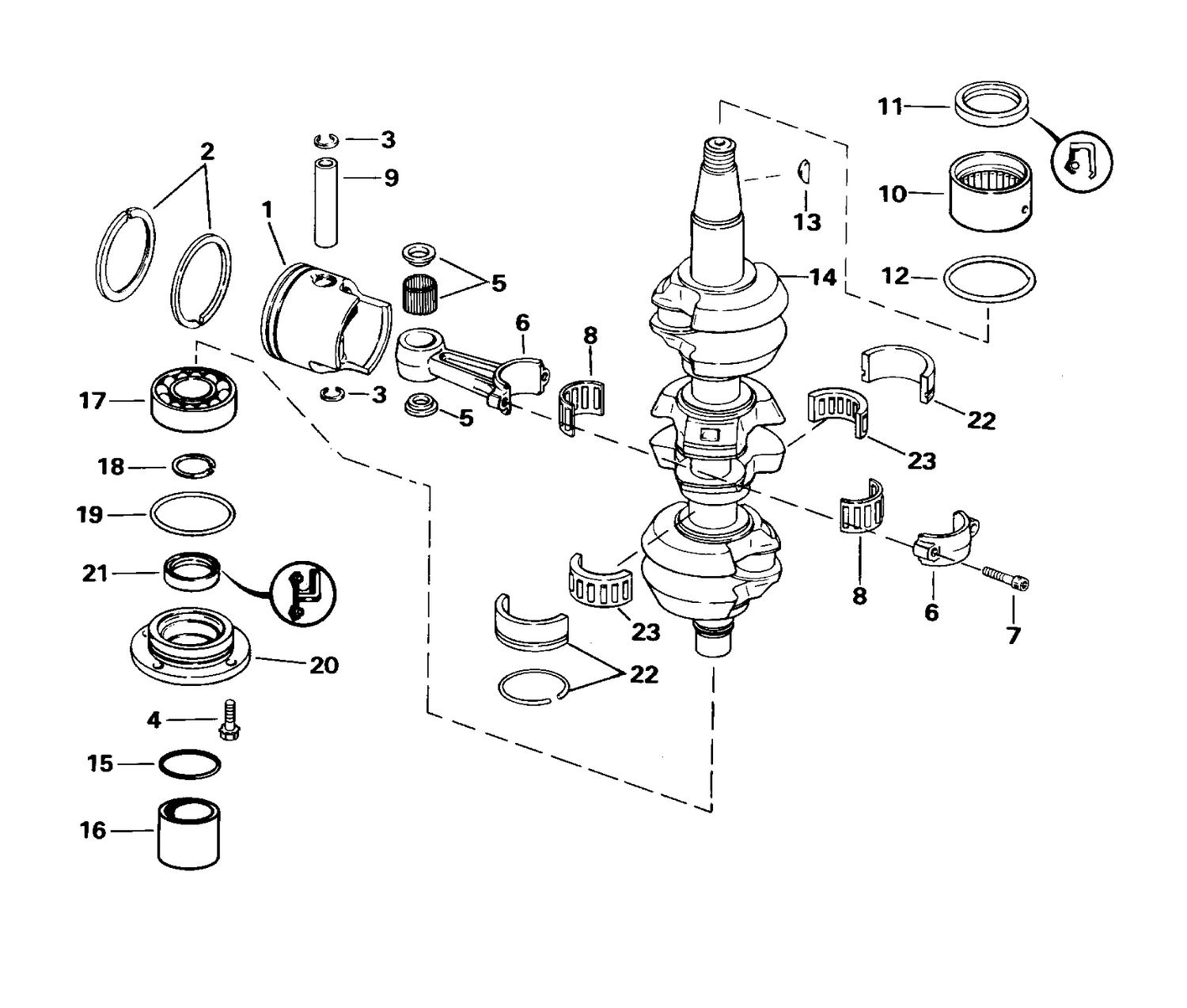

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0436731 | JEU DE SEGMENTS, standard |
| 3 | 0317831 | Circlip |
| 4 | 0553556 | SCREW, Housing to cylinder |
| 5 | 0395627 | BEARING & RETAINER |
| 6 | 0394462 | CONNECTING ROD ASSY |
| 8 | 0437088 | BEARING Assy |
| 9 | 0322188 | WRIST PIN |
| 10 | 0398529 | BEARING & SEAL ASSY., Crankshaft |
| 12 | 0313754 | O RING |
| 14 | 0439217 | CRANKSHAFT ASSY. |
| 19 | 0308876 | O RING CRANKCASE HEAD LOWER |
| 20 | 0439210 | CRANKCASE HEAD Assy |
| 22 | 0310433 | SLEEVE |
