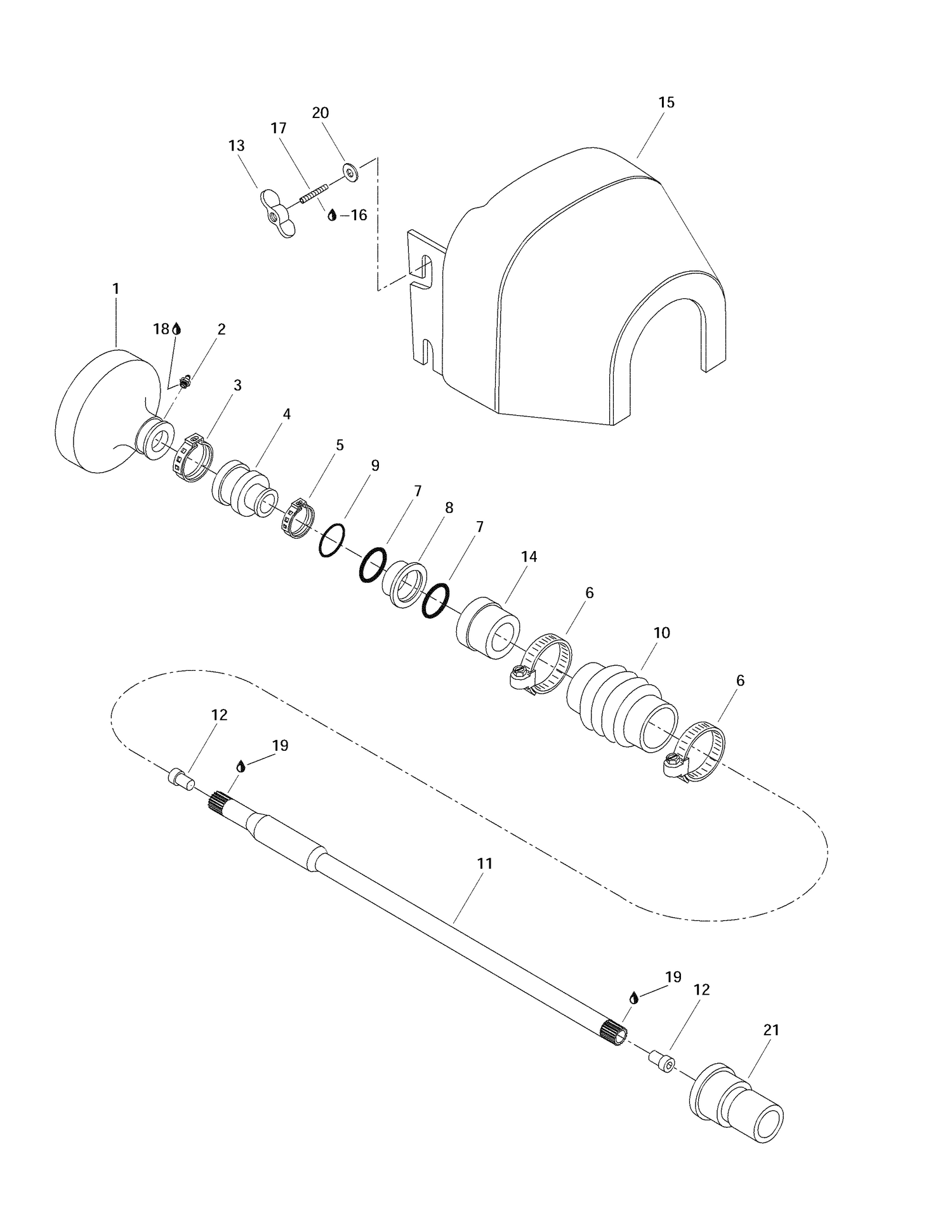

| Ref | Part Number | Description |
|---|
| 2 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 3 |
293650021 |
OETIKER CLAMP - Call your local BRP dealership |
| 4 |
272000001 |
RUBBER BOOT - Call your local BRP dealership |
| 5 |
293650067 |
OETIKER CLAMP - Call your local BRP dealership |
| 6 |
293650075 |
Norma Clamp This part replaces 293650040. |
| 7 |
293300032 |
O-Ring |
| 8 |
272000064 |
Support Ring |
| 9 |
293300036 |
O-Ring |
| 10 |
272000184 |
BELLOWS - Call your local BRP dealership This part replaces 272000041. |
| 11 |
204120064 |
Drive Shaft |
| 12 |
272000019 |
DRIVE SHAFT PLUG - Call your local BRP dealership |
| 13 |
232681100 |
Wing Nut M8 This part replaces 218681000. |
| 14 |
272000770 |
Carbon Ring This part replaces 272000042. |
| 15 |
272000122 |
Flywheel Guard |
| 16 |
293800005 |
Loctite 271, 10 ml |
| 17 |
211300013 |
Stud M8 x 15 |
| 19 |
293550010 |
Synthetic Grease, 400 G |
| 20 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
