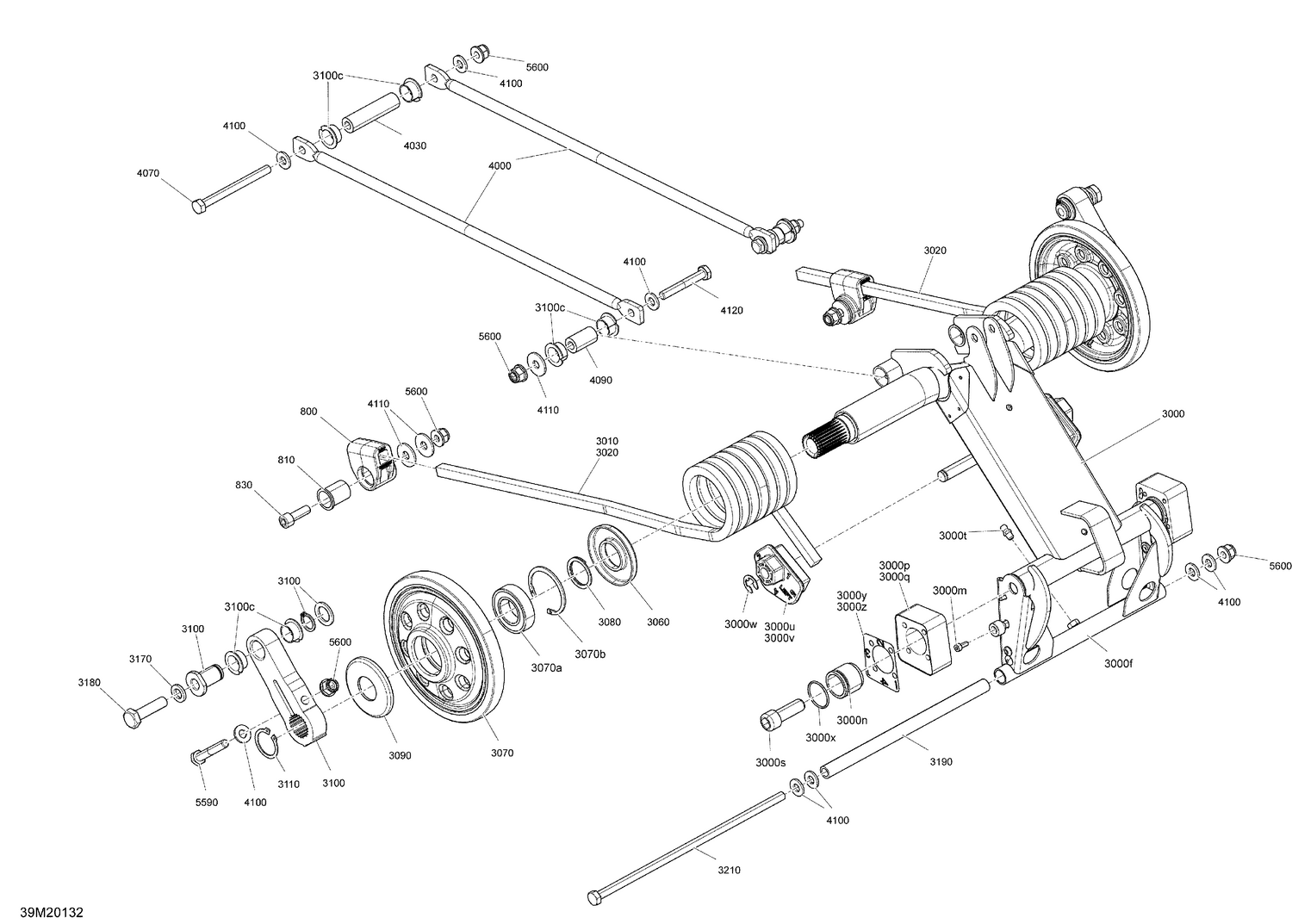

08- Suspension, Rear - Upper Section
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503195351. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 3000f | 503192823 | Pivot Arm Ass'y |
| 3000m | 205041060 | Socket Head Screw M4X 10 |
| 3000n | 503192749 | Guide Block |
| 3000p | 503192918 | LH Cam Block |
| 3000q | 503192919 | RH Cam Block |
| 3000s | 205523554 | Socket Head Screw M12 X 35 |
| 3000t | 408200700 | Grease Fitting |
| 3000u | 503191565 | LH Cam Adjuster |
| 3000v | 503191566 | RH Cam Adjuster |
| 3000w | 293370013 | E-Circlip |
| 3000x | 503192921 | O-Ring |
| 3000y | 516004900 | LH Block Sticker Decal |
| 3000z | 516004901 | RH Block Sticker Decal |
| 3010 | 503192105 | Black Lh Spring |
| 3020 | 503192104 | Black, RH Spring Square |
| 3060 | 503190434 | Labyrinth Seal |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3080 | 503189146 | Axle Spring |
| 3090 | 503192592 | Labyrinth Ring |
| 3100c | 503191555 | Swivel Bushing |
| 3110 | 293370080 | Retaining Ring |
| 3170 | 503192496 | Washer |
| 3180 | 207204056 | Cap Screw Hex. M10 X 40 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 4000 | 503193005 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4070 | 503193372 | Screw M8 X 90 |
| 4090 | 503192555 | Axle Bar |
| 4100 | 503192494 | Washer |
| 4110 | 234082410 | Flat Washer 8 mm |
| 4120 | 207085556 | Hex. Screw M8 X 55 |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
