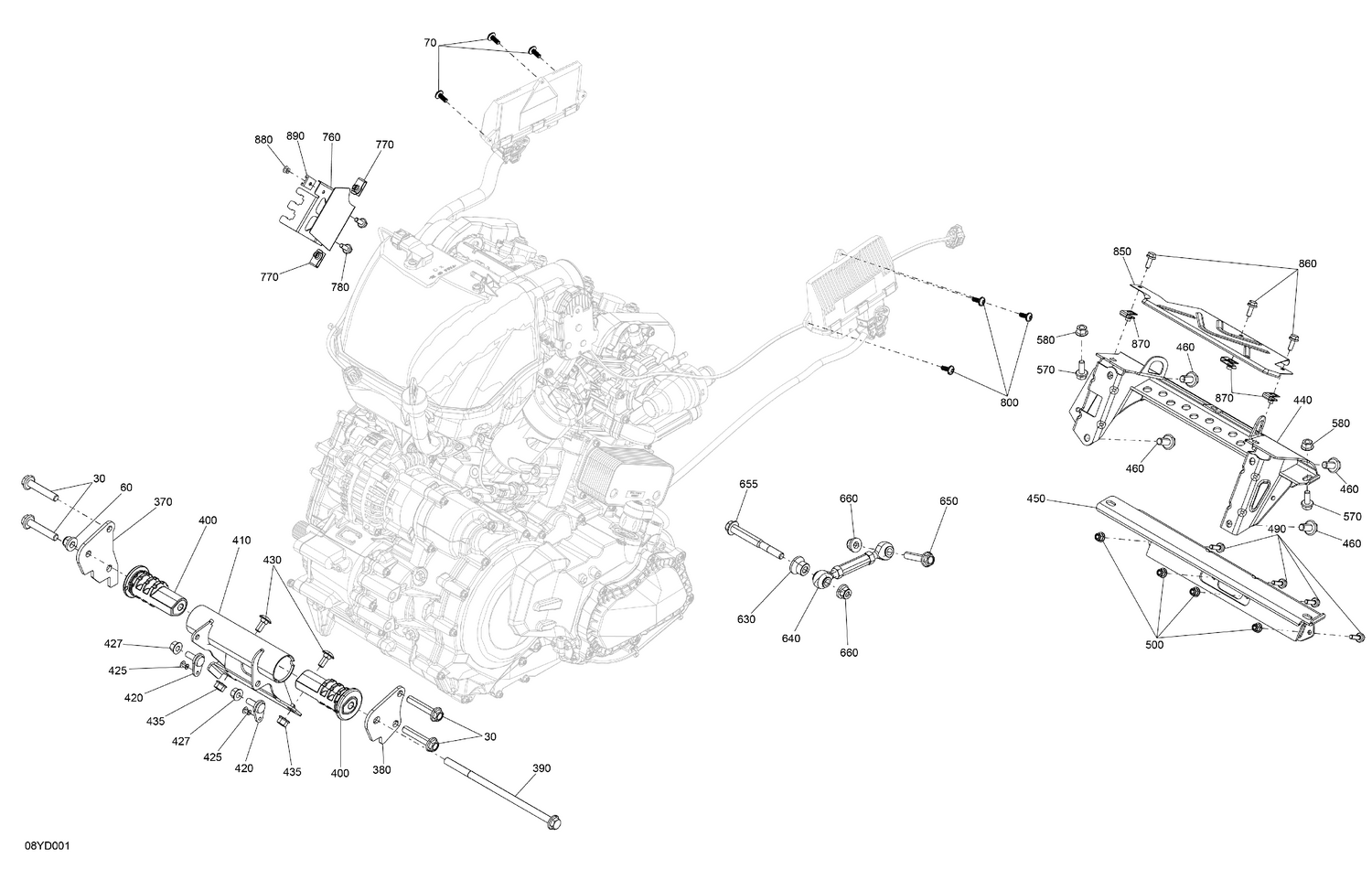

02- Engine - System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 207505046 | Hex. Flange Screw M10 X 50, Scotch Grip |
| 60 | 233201466 | Flange Elastic Nut M10 |
| 70 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 390 | 250000507 | Hex. Flange Screw M10 X 220 |
| 400 | 707003044 | Vibration Damper |
| 425 | 293150301 | Pop Rivet 3/16 X ,551 |
| 427 | 233201466 | Flange Elastic Nut M10 |
| 430 | 207782046 | Carriage Bolt M8 X 20 |
| 435 | 233201466 | Flange Elastic Nut M10 |
| 460 | 207502044 | Hex Flange Screw M10 X 20 |
| 490 | 207662054 | Hex. Flange Screw M6 X 20 |
| 500 | 233261466 | Hex. Flange Elastic Nut M6 |
| 570 | 207682046 | Hex. Flange Screw M8 X 20 |
| 580 | 233201466 | Flange Elastic Nut M10 |
| 630 | 707001736 | Spacer |
| 640 | 707001918 | Connecting Rod |
| 650 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 655 | 250001099 | Hex. Flange Screw M10 X 100 |
| 660 | 233201466 | Flange Elastic Nut M10 |
| 770 | 250100198 | Panel Nut M6 X 1.0 |
| 780 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 800 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 850 | 707601057 | Upper Heat Deflector |
| 860 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 870 | 250100198 | Panel Nut M6 X 1.0 |
| 880 | 293150293 | Pop Rivet 3/16 X ,425 |
