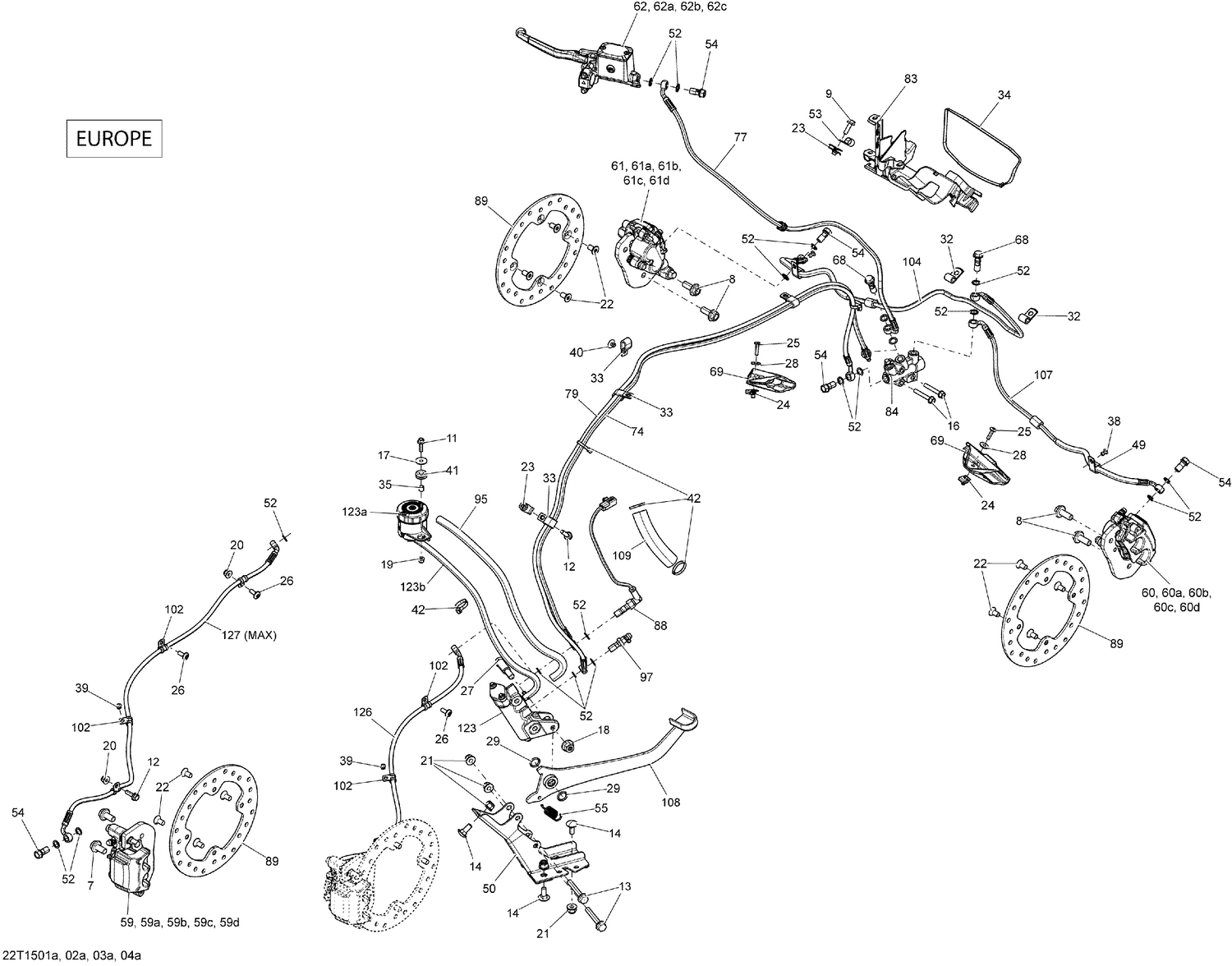

06- Brakes Europe_22T1501a
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207502046 | Hex. Flange Screw M10 X 20 |
| 8 | 207502546 | Hex. Flange Screw M10 X 25 |
| 9 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 11 | 207652044 | Hex.Flange Screw M5 X 20 |
| 12 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 13 | 207685544 | Hex. Flange Screw M8 X 55 |
| 14 | 207782044 | Carriage Bolt, M8 X 20 |
| 16 | 210264080 | HEX. SCREW M6 X 40 - Call your local BRP dealership |
| 17 | 224060201 | Flat Washer |
| 18 | 233201436 | Hex. Flange Elastic Nut M10 |
| 19 | 233251434 | Flange Elastic Nut M5 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 23 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 24 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 25 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 26 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 27 | 250000513 | Shoulder Screw M10 |
| 28 | 250200025 | Washer M5 |
| 29 | 293300144 | O-Ring |
| 32 | 293650219 | Clamp |
| 33 | 293650220 | Clamp |
| 34 | 293750047 | Tie Rap, 533 mm |
| 35 | 293900112 | Bushing |
| 38 | 390402300 | Pop Rivet 3/16" |
| 39 | 390402400 | Pop Rivet 3/16" |
| 40 | 390406500 | Pop Rivet 3/16" |
| 41 | 414036300 | Grommet |
| 42 | 414115200 | Tie-Rap 180 mm |
| 49 | 518321570 | Open Clamp |
| 50 | 705202000 | Brake Pedal Bracket |
| 52 | 705601628 | Copper Washer This part replaces 705600310. |
| 53 | 293650256 | Clamp This part replaces 705600459. |
| 54 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 55 | 705600792 | Brake Pedal Spring |
| 59 | 705602190 | RH Rear Brake Caliper This part replaces 705600859. |
| 59a | 705601016 | Pin Set |
| 59b | 705601017 | Bleeding Screw |
| 59c | 705601018 | Retaining Spring |
| 59d | 705601014 | RH Organic Brake Pad Kit |
| 60 | 705600861 | RH Front Caliper Ass'y |
| 60a | 705601014 | RH Organic Brake Pad Kit |
| 60b | 705601016 | Pin Set |
| 60c | 705601017 | Bleeding Screw |
| 60d | 705601018 | Retaining Spring |
| 61 | 705600862 | LH Front Caliper Ass'y |
| 61a | 705601016 | Pin Set |
| 61b | 705601017 | Bleeding Screw |
| 61c | 705601018 | Retaining Spring |
| 61d | 705601015 | LH Organic Brake Pad Kit |
| 62 | 705601430 | LH Front Master Cylinder This part replaces 705600865. |
| 62a | 705601013 | Lever Set |
| 62b | 507032477 | Clamp And Screw Kit |
| 62c | 219800096 | Cap Set |
| 68 | 705600958 | Banjo Bolt |
| 69 | 705601893 | Hose Guard This part replaces 705600962. |
| 74 | 705601518 | Outlet Hose, Master Cylinder This part replaces 705600964. |
| 77 | 705600967 | Brake Handle Line |
| 79 | 705600973 | Inlet Hose, Master Cylinder |
| 83 | 705600983 | Front Hose Bracket |
| 84 | 705600994 | Splitter |
| 88 | 705601251 | Brake Switch |
| 89 | 705601997 | Disc Brake This part replaces 705600999. |
| 95 | 219704407 | Tubing 10 MM 1000MM Long |
| 97 | 705601051 | Bleeding Screw |
| 102 | 293650256 | Clamp This part replaces 715900250. |
| 104 | 705601520 | LH Front Hose This part replaces 705601124. |
| 107 | 705601521 | RH Front Hose This part replaces 705601125. |
| 108 | 705602163 | Deep Black, Brake Pedal This part replaces 705601155. |
| 109 | XXX | Not Available As Spare Parts |
| 123 | 705601776 | Rear Master Cylinder Ass'y This part replaces 705601274. |
| 123a | 705601020 | Oil Tank |
| 123b | 705601019 | Oil Housing Hose |
| 126 | 705601323 | RH Rear Hose |
