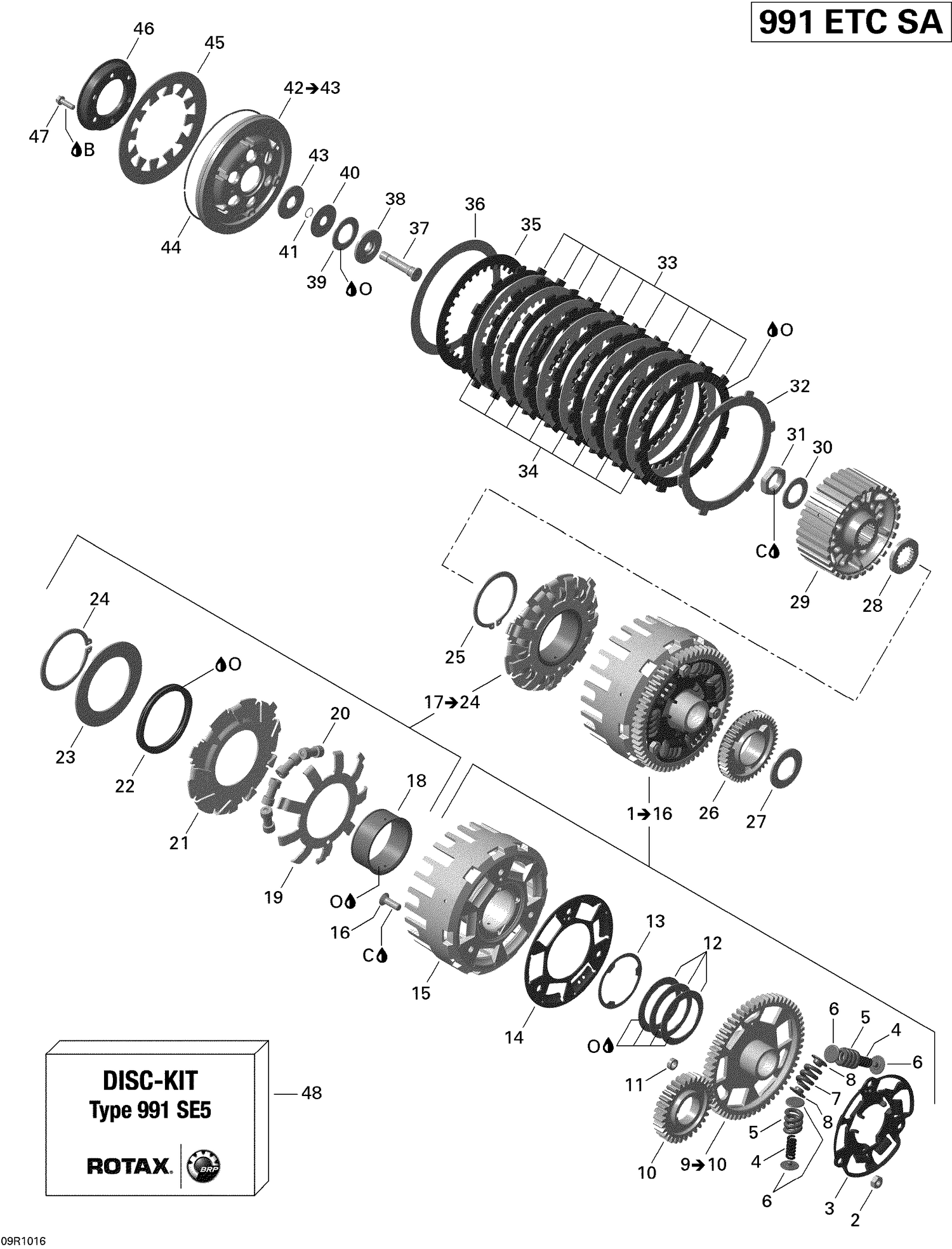

05- Clutch
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| C | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 2 | 232081414 | Hex. Nut M8 |
| 3 | 420259581 | Outer Support Plate This part replaces 420259583. |
| 4 | 420238140 | Internal Compression Spring |
| 5 | 420238135 | Compression Spring |
| 6 | 420247015 | Spring Retainer This part replaces 420247972. |
| 7 | 420238130 | Compression Spring |
| 8 | 420247017 | Spring Retainer This part replaces 420247976. |
| 10 | Not | Available As Spare Part - Primary Drive Gear |
| 11 | 420247614 | Spacer Sleeve |
| 12 | 420239397 | Disc Spring This part replaces 420239395. |
| 13 | 420427040 | THRUST WASHER - Call your local BRP dealership This part replaces 420627916. |
| 14 | 420259688 | Support Plate This part replaces 420259685. |
| 15 | 420659720 | Clutch Drum |
| 16 | 420941835 | Flat Head Screw, M8 X 25 |
| 18 | 420659852 | Bushing |
| 19 | 420659821 | Cam |
| 20 | 420229947 | Centrifugal Weight |
| 21 | 420659740 | Pressure Plate |
| 22 | 420238922 | Wave Spring |
| 23 | 420626390 | Stop Plate |
| 24 | 420245080 | Retaining Ring |
| 25 | 420245070 | Retaining Ring |
| 26 | 420634478 | Oil Gear Pump, 42 Teeth This part replaces 420634476. |
| 27 | 420626540 | THRUST WASHER - Call your local BRP dealership |
| 28 | 420627225 | Thrust Washer This part replaces 420627220. |
| 29 | 420659751 | Clutch Hub This part replaces 420659750. |
| 30 | 420245830 | Spring Washer |
| 31 | 420242012 | Hex. Nut M24 This part replaces 420242950. |
| 35 | 420281535 | Adjustment Plate Kit |
| 37 | 420659799 | Clutch Release Shaft Ass'y This part replaces 420659797. |
| 38 | 420659890 | Thrust Washer |
| 39 | 420632700 | Needle Bearing |
| 40 | 420626560 | Thrust Washer |
| 41 | 420245440 | Snap Ring |
| 43 | 420626570 | Thrust Washer |
| 44 | 420245250 | Retaining Ring |
| 46 | 420259860 | Plate Inner |
| 47 | 420440207 | Torx Flange Screw M6 X 20 |
| 48 | 420281935 | Disc Kit, Type 991 SE5 |
