Parts Catalog

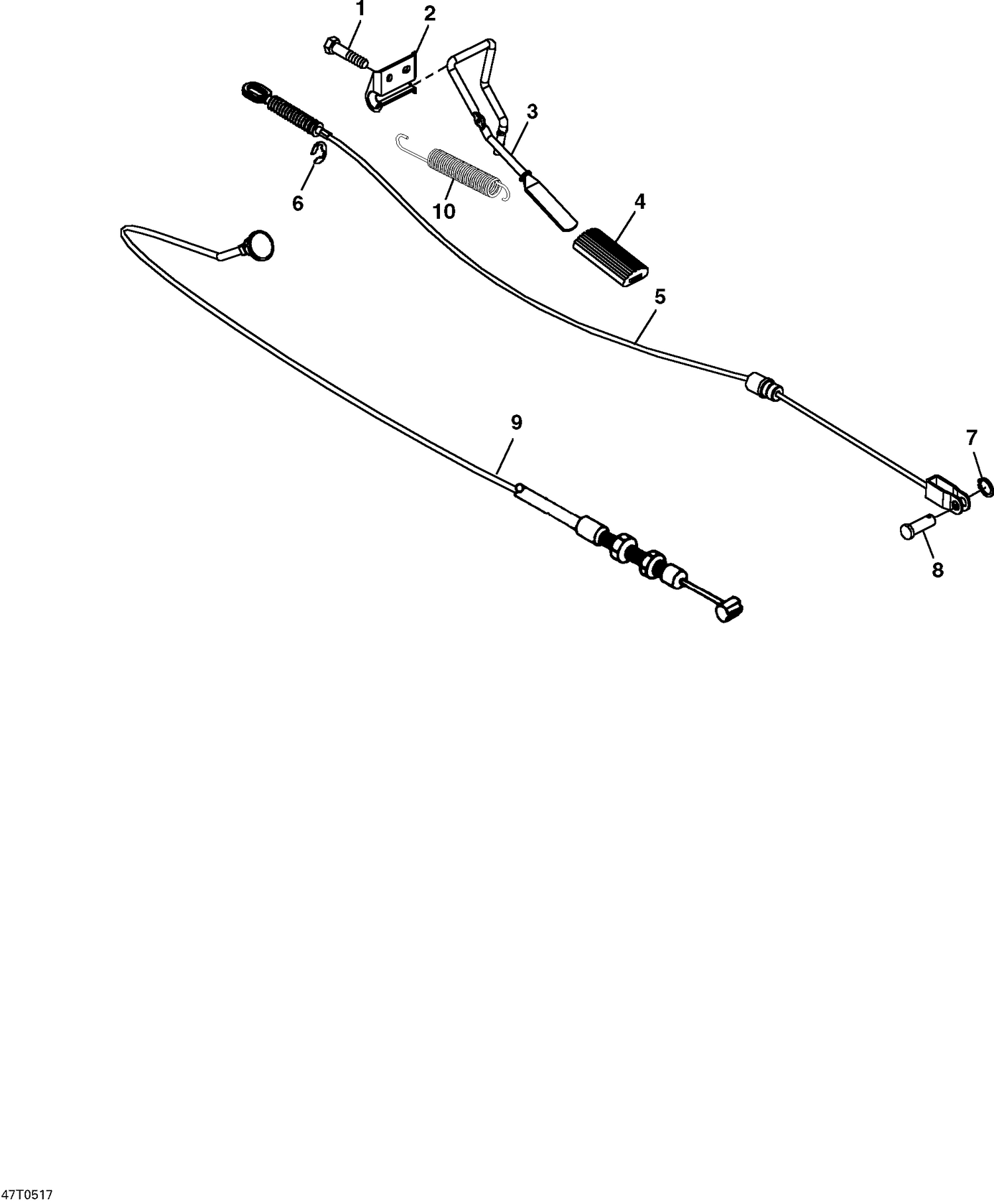

02- Throttle and Choke

Parts (9)

Ref	Part Number	Description
1	D37M7058	Hex. Screw M8X20
2	DM118304	Pivot Pedal
3	DVG11553	Throttle Pedal
4	DM114247	Pedal Pad
5	DVGA10808	Throttle Cable
6	DR72655	Snap Ring
7	DR72654	Snap Ring
8	DM143771	Fastener Pin
9	DVGA10345	CHOKE CABLE - Call your local BRP dealership
