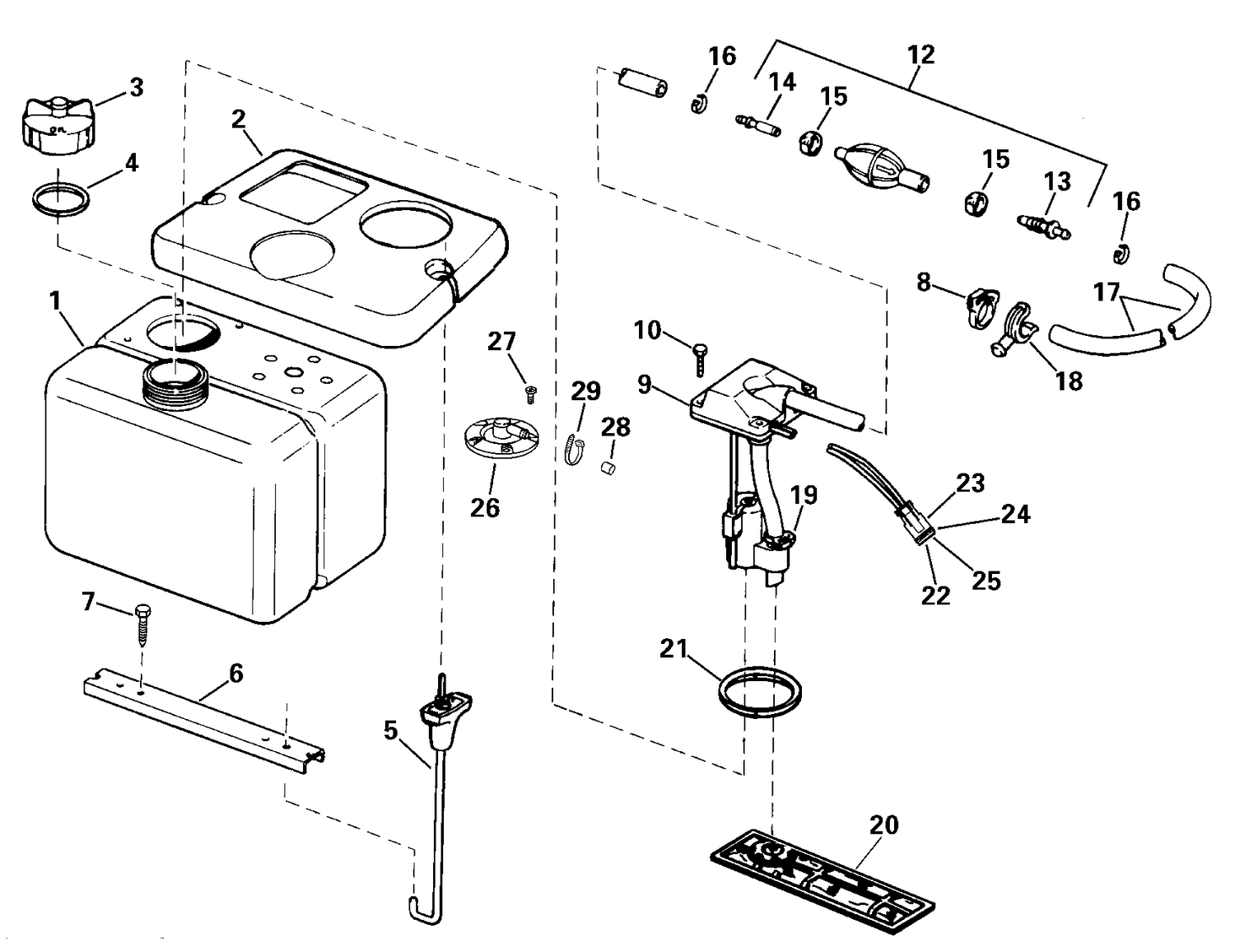

1.8 GALLON OIL TANK
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 0322654 | PINCE RAPIDE, flexible d'huile |
| 18 | 0329661 | SUPPORT/BOUCHON |
| 19 | 0322654 | PINCE RAPIDE, flexible d'huile |
| 27 | 0125529 | VIS, montage du sac à outils |
| 500 | 509001414 | Thermostat Hose |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001430 | Cooling Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001415 | Purge Hose |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1270 | 293650030 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001314 | Coolant Tank |
| 2060c | 293450267 | Insert M5 - 0.8 |
| 2080 | 250000759 | Torx Truss Pt K40 X 16 |
| 2090 | 207651646 | Hex. Flange Screw M5 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long This part replaces 509001431. |
| 5008617 | OIL | TANK. Assy This part replaces 0176995. 5008617 |
