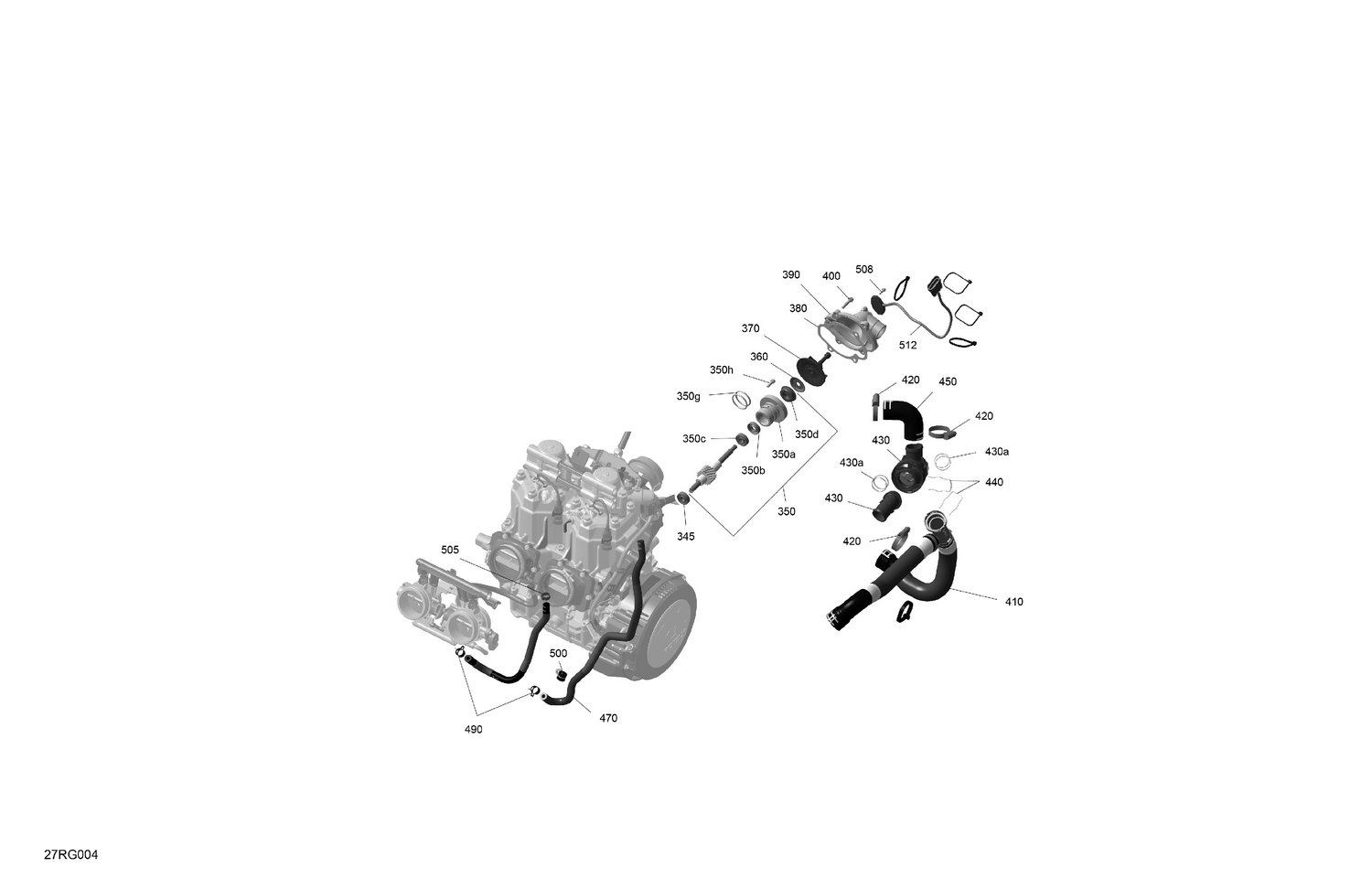

01- ROTAX - Engine Cooling
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 345 | 420232100 | Ball Bearing |
| 350a | 420847933 | Step Collar |
| 350b | 420230198 | Oil Seal |
| 350c | 420232100 | Ball Bearing |
| 350d | 420650371 | Rotary Seal |
| 350g | 420950890 | O-Ring |
| 350h | 420840514 | Allen Screw M5 x 16 |
| 360 | 420944035 | Cover Washer |
| 370 | 420922809 | Water Impeller |
| 380 | 420430054 | Gasket Housing |
| 390 | 420822289 | Water Pump Housing |
| 400 | 420440234 | Torx Flange Screw M6 X 25 |
| 410 | 420822805 | Molded Hose |
| 420 | 420951120 | Clamp 26-38MM |
| 430a | 420430062 | O-Ring |
| 440 | 420939344 | Spring Clip |
| 450 | 420822820 | Return Hose |
| 470 | 420201519 | Formed Hose |
| 490 | 420853511 | Clamp |
| 500 | 420851250 | Clamp |
| 505 | 420851458 | Clamp |
| 508 | 420440299 | Allen Screw M4X14 - 8.8 |
