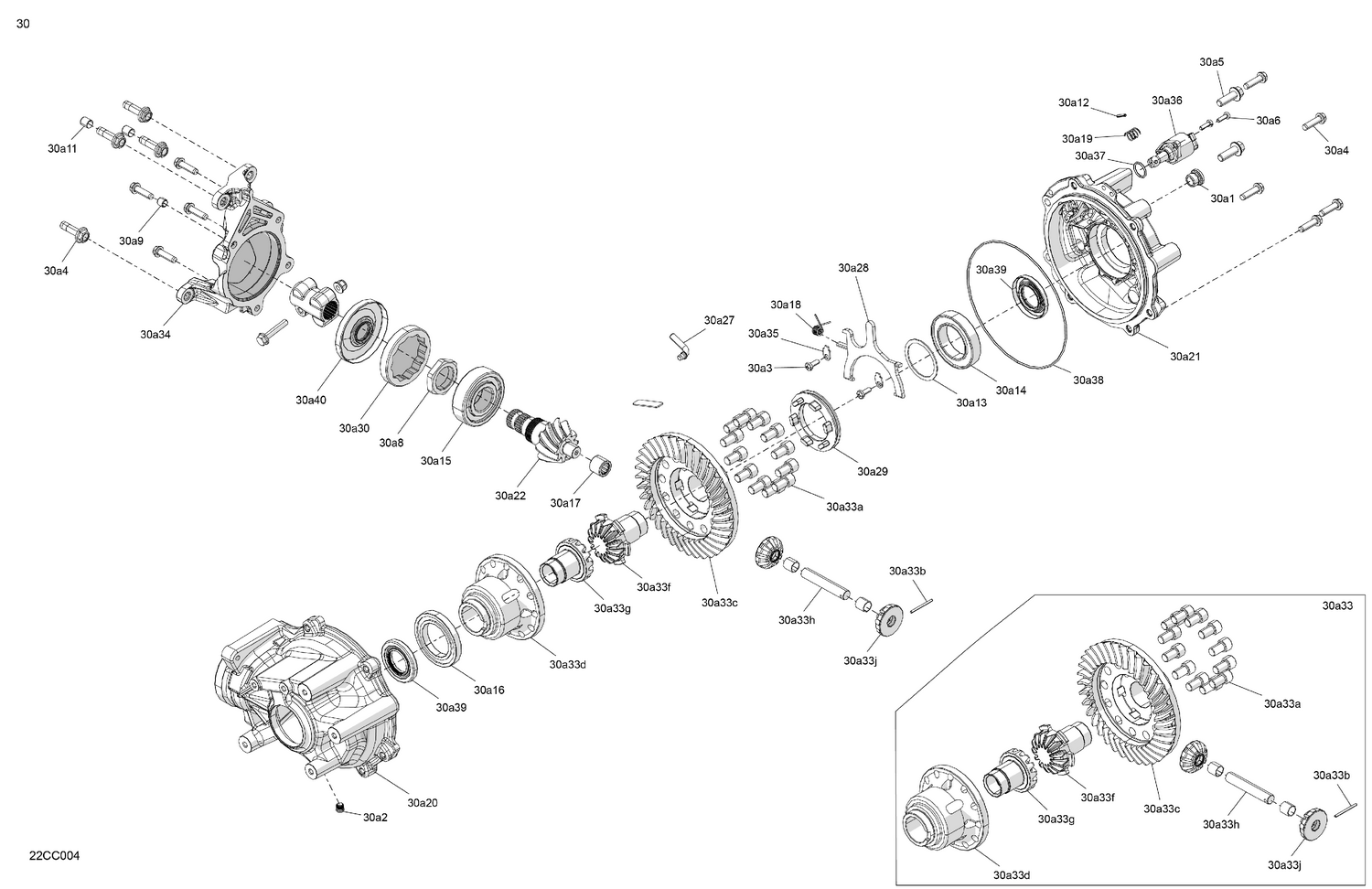

04- Drive - Final Drive Unit
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 30a1 | 705501889 | Fill Level Plug |
| 30a11 | 715900739 | Dowel Pin |
| 30a12 | 715900754 | Spring Pin |
| 30a13 | 715900740 | Shim |
| 30a14 | 715900741 | Ball Bearing |
| 30a15 | 715900782 | Ball Bearing |
| 30a16 | 715900742 | Ball Bearing |
| 30a17 | 705501874 | Needle Bearing |
| 30a18 | 715900755 | Torsion Spring |
| 30a19 | 715900756 | Compression Spring |
| 30a2 | 715900563 | Fill Level Plug M10 |
| 30a20 | 715900816 | Case |
| 30a21 | 715900841 | Cover |
| 30a22 | 715900746 | Pinion, 10T Spiral |
| 30a27 | 705401935 | Vent Valve |
| 30a28 | 715900761 | Pivot Fork |
| 30a29 | 715900821 | Engagement |
| 30a3 | 705402845 | Torx Screw M6 X 16 |
| 30a30 | 705501882 | Nut |
| 30a33a | 715900752 | Screw |
| 30a33b | 715900753 | Dowel Pin |
| 30a33c | 715900757 | Ring Gear, 36T Spiral |
| 30a33d | 715900758 | Carrier |
| 30a33f | 715900759 | Output Gear |
| 30a33g | 715900760 | Output Gear |
| 30a33h | 715900763 | Differential Pin |
| 30a33j | 715900764 | Pinion, Differential |
| 30a34 | 705503213 | Differential Support |
| 30a35 | 715900766 | Retainer Fork |
| 30a36 | 420265845 | Servomotor |
| 30a37 | 420450450 | O-Ring |
| 30a38 | 715900749 | O-Ring |
| 30a39 | 715900531 | Oil Seal |
| 30a4 | 705501886 | Bolt |
| 30a5 | 715900799 | Custom Hex Screw Flange Head M10 x 30 |
| 30a6 | 715900736 | Screw |
| 30a8 | 715900737 | Nut |
| 30a9 | 715900738 | Dowel Pin |
