| Ref | Part Number | Description |
|---|
| 1 |
5000863 |
INTAKE ASSY. |
| 6 |
0435106 |
DRIVESHAFT & SLEEVE ASSY. |
| 7 |
0336882 |
THRUST RING |
| 8 |
0336913 |
SLEEVE |
| 9 |
0336906 |
KEY |
| 10 |
0336911 |
SHIM |
| 10 |
704909038 |
Emblem Logo BRP 20 MM UV |
| 11 |
0336895 |
KEEPER, Nut |
| 12 |
0336912 |
NUT, Driveshaft |
| 13 |
0336894 |
PIN, Gate |
| 14 |
0336871 |
BOLT, Bearing housing |
| 15 |
0336890 |
BUSHING, Pin |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 16 |
0336893 |
GATE |
| 17 |
0337008 |
SPRING, Bumper, gate |
| 18 |
0434701 |
CAM ASSY., Shift |
| 19 |
0336999 |
ECCENTRIC, Cam |
| 20 |
0337001 |
BUSHING, Cam |
| 21 |
0336881 |
BRACKET CABLE |
| 22 |
0336868 |
WASHER, Nut |
| 23 |
0336899 |
SCREW, Bracket to housing |
| 25 |
0336874 |
SCREW, Clip to bracket |
| 26 |
0336867 |
NUT, Screw, bracket |
| 28 |
0346105 |
BOLT, Bearing housing |
| 29 |
0336877 |
O-RING, Bearing housing |
| 30 |
0336889 |
RETAINING RING |
| 30 |
704909039 |
Emblem BRP Logo 35 MM UV |
| 31 |
0336902 |
O-RING, Bearing housing |
| 32 |
0336914 |
SEAL ASSY. |
| 33 |
0336876 |
SPIROLOX |
| 34 |
0336878 |
SEAL, Inner |
| 35 |
0336879 |
SEAL, Outer |
| 36 |
0434712 |
IMPELLER ASSY. |
| 37 |
0336896 |
SCREW, Exh. hsg |
| 38 |
0336864 |
LOCK WASHER |
| 39 |
0336898 |
SCREW, Exh. hsg |
| 40 |
0336909 |
SPACER, Screw, exh. hsg |
| 41 |
0434698 |
HOSE ASSY., Lube |
| 42 |
0336861 |
SCREW, Flush |
| 43 |
0336863 |
WASHER, Screw |
| 44 |
0336897 |
SCREW, Exh. hsg. long |
| 45 |
0336871 |
BOLT, Bearing housing |
| 46 |
0346103 |
LINER |
| 47 |
0337002 |
WASHER |
| 48 |
0336908 |
WASHER, Bearing |
| 49 |
0336905 |
BEARING |
| 50 |
0346104 |
BEARING CARRIER |
| 51 |
0337003 |
SHIM, Cam |
| 66 |
0336880 |
ROD, Grill |
| 67 |
0337007 |
BUMPER, Gate |
| 68 |
0336998 |
SCREW, Bumper |
| 69 |
0337006 |
NUT, Shaft, gate |
| 71 |
0336868 |
WASHER, Nut |
| 72 |
0437820 |
ROLLER & BUSHING This part replaces 0337004. |
| 73 |
0437820 |
ROLLER & BUSHING This part replaces 0337005. |
| 74 |
0336872 |
GREASE FITTING |
| 75 |
0337000 |
NUT, Pivot, cam |
| 76 |
0336869 |
WASHER, Bolt, bearing housing |
| 77 |
0337009 |
PIVOT, Cable to cam |
| 78 |
0336868 |
WASHER, Nut |
| 80 |
0434702 |
TUBE, Exhaust |
| 81 |
0336892 |
CLIP, Exhaust tube |
| 83 |
0435526 |
CHROME CUP & PLATE KIT |
| 84 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 85 |
0435299 |
FLUSHING KIT |
| 86 |
0434697 |
GREASE GUN |

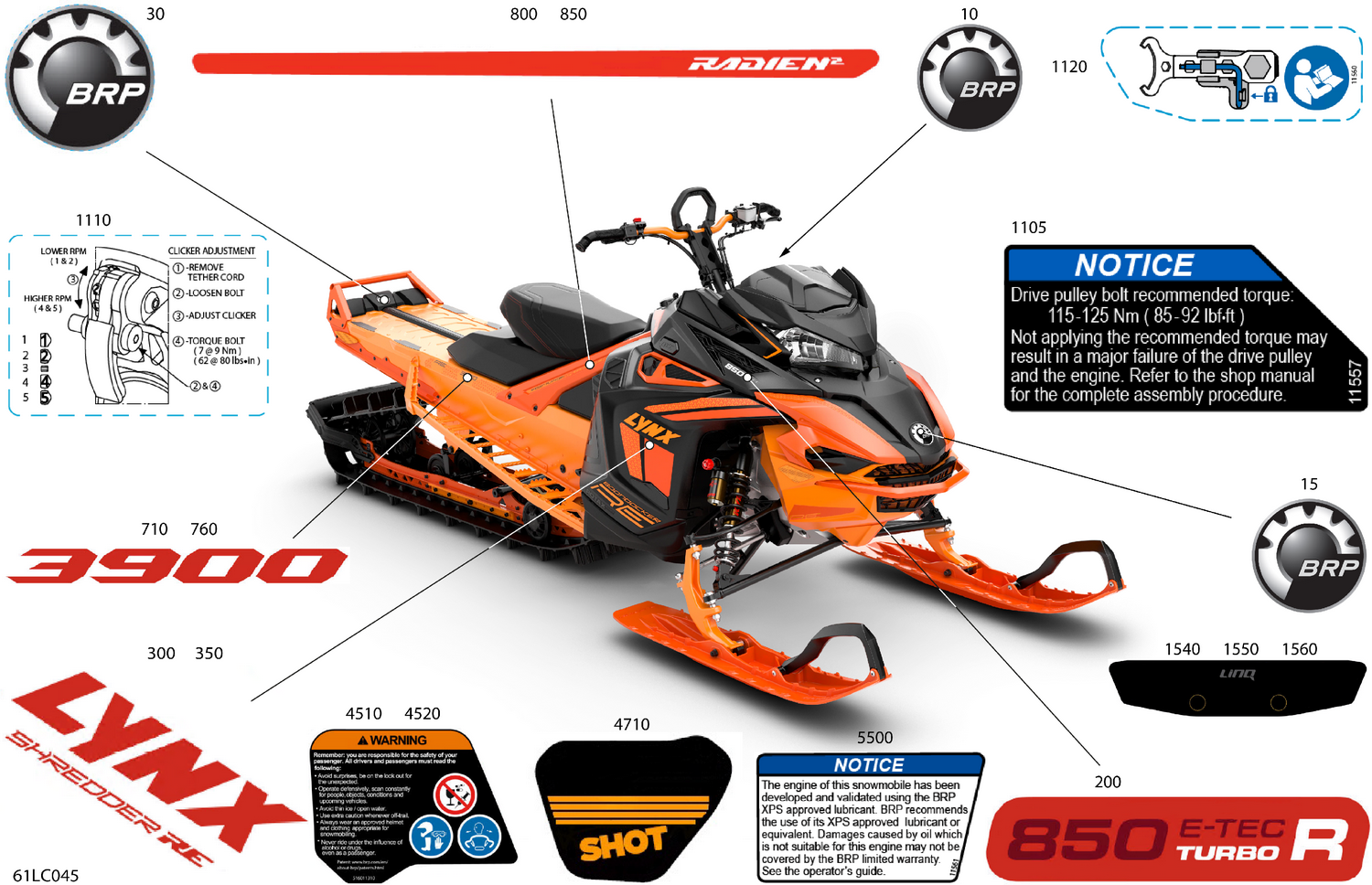

| 200 |
516011081 |
Decal Moon Engine |
| 300 |
516011598 |
LH Panel Decal |
| 350 |
516011599 |
RH Panel Decal |
| 710 |
516011071 |
LH Tunnel Decal |
| 760 |
516011072 |
RH Tunnel Decal |
| 800 |
516011438 |
LH Cross Member Decal |
| 850 |
516011439 |
RH Cross Member Decal |
| 1105 |
516011557 |
Clutch Instruction Label |
| 1110 |
516009265 |
Ramp Clicker Decal |
| 1120 |
516011560 |
Tool Instruction Label |
| 1540 |
516011681 |
Decal Q-Link |
| 1550 |
516011681 |
Decal Q-Link |
| 1560 |
516011681 |
Decal Q-Link |
| 4510 |
516011310 |
Decal - Label General C/U |
| 4520 |
516011312 |
Decal - Label |
| 4710 |
516008187 |
Decal Shot |
