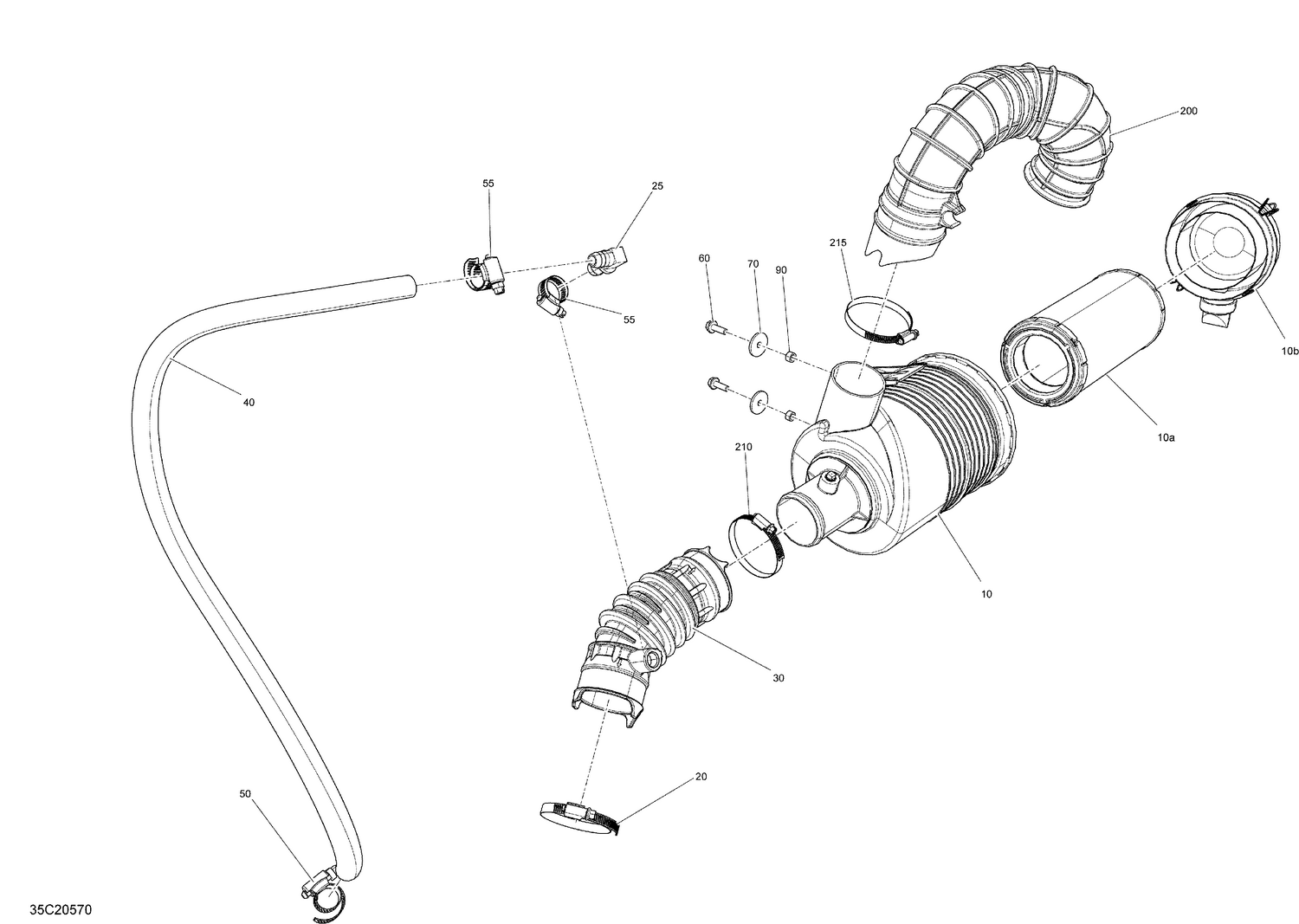

02- Engine - Air Intake
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707800614 | Air Intake Ass'y |
| 10a | 715900394 | Air Filter |
| 10b | 715900397 | Air Intake Cover |
| 20 | 293650091 | Norma Clamp |
| 25 | 414523600 | Elbow Fitting |
| 30 | 707800698 | Air Inlet Tube |
| 40 | 707800699 | Crankcase Breather |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 207682534 | Hex. Flange Screw M8 X 25 |
| 70 | 250200158 | Flat Washer M8 |
| 90 | 277000980 | Bushing |
| 200 | 707800752 | Air Inlet Tube |
| 210 | 293650091 | Norma Clamp |
