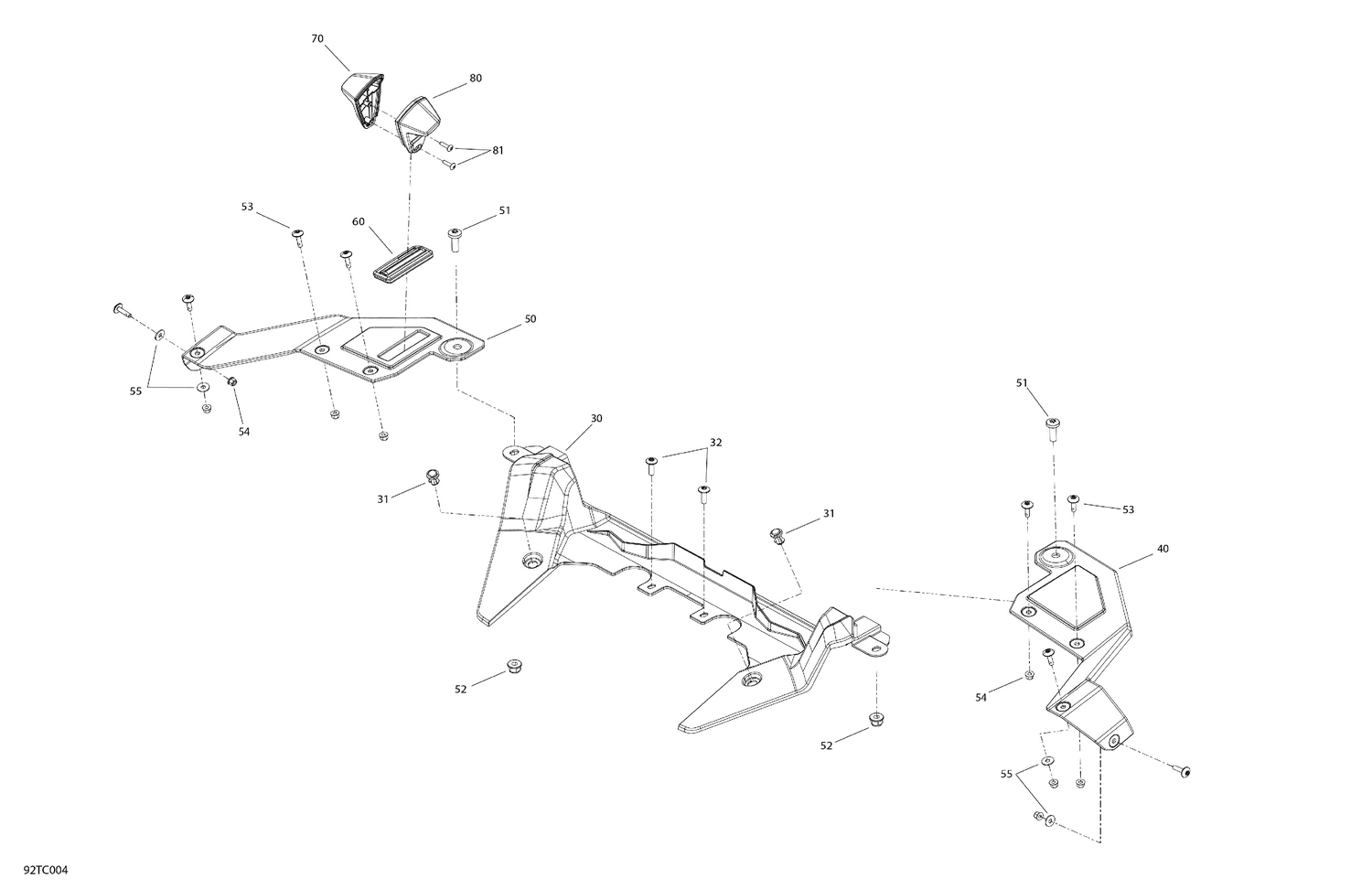

09- Miscellaneous - Accessories
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 705013822 | Middle Cover |
| 31 | 293150230 | Tuflok Plastic Rivet |
| 32 | 250000722 | Torx Screw M6 X 20 |
| 40 | 705013820 | LH Rear Fender Trim |
| 50 | 705013821 | RH Rear Fender Trim |
| 51 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 53 | 250000586 | Torx Truss M5 X 20 |
| 54 | 233251434 | Flange Elastic Nut M5 |
| 55 | 20008 | Washer 5,3 mm |
| 60 | 705008047 | Lever Rubber Seal |
| 70 | 705008048 | Right Half Knob |
| 80 | 705008420 | Left Half Knob |
