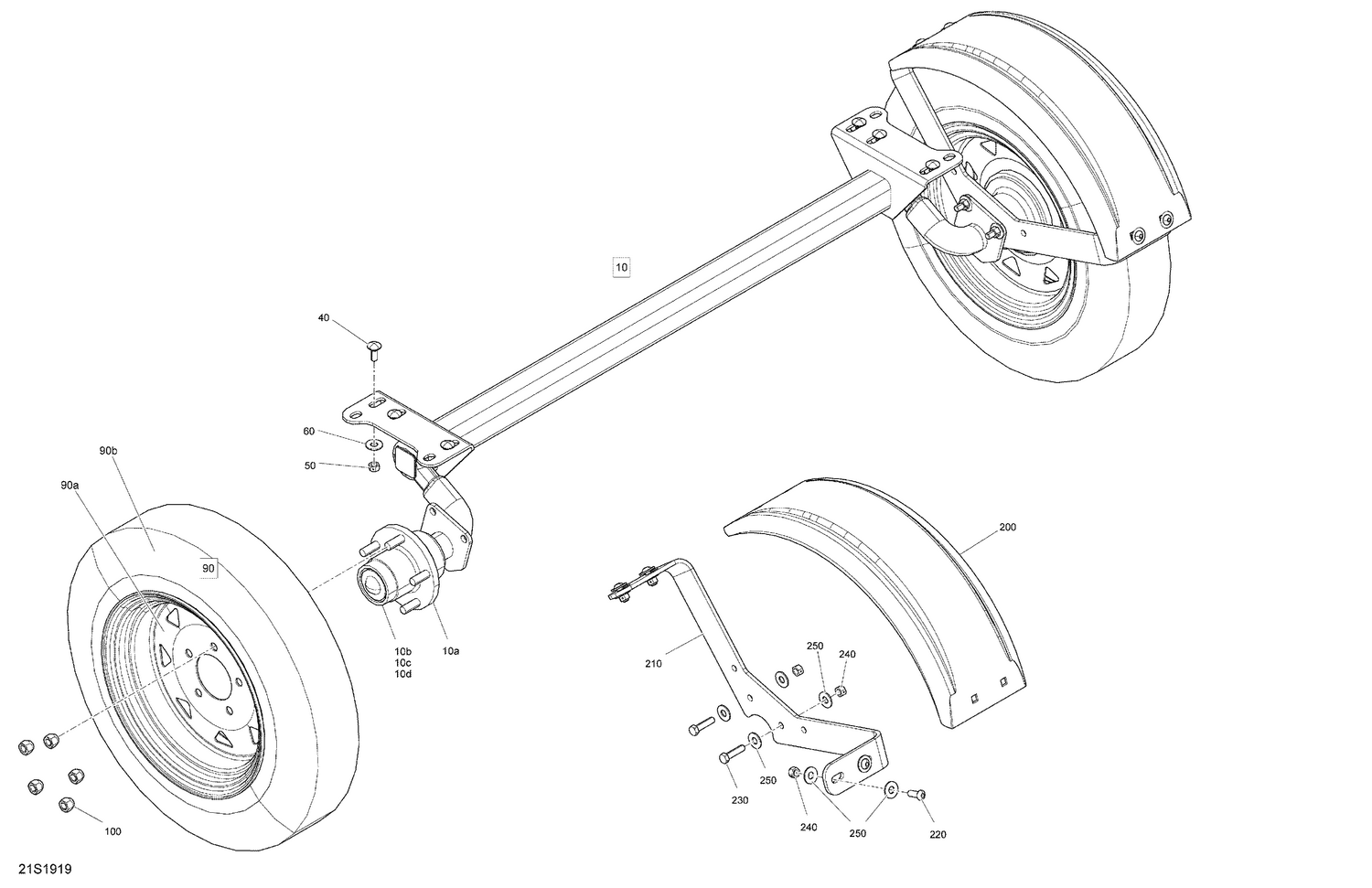

| Ref | Part Number | Description |
|---|
| 10 |
XXX |
Not Available As Spare Parts |
| 10a |
296000319 |
HUB ASS'Y - Call your local BRP dealership |
| 10b |
271001851 |
HUB DUST CAP - Call your local BRP dealership |
| 10c |
271001852 |
O-RING - Call your local BRP dealership |
| 10d |
271001883 |
LOCK NUT - Call your local BRP dealership |
| 40 |
269800899 |
CARRIAGE BOLT 3/8 - 16 X 1 - Call your local BRP dealership |
| 50 |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
| 60 |
269800300 |
FLAT WASHER - Call your local BRP dealership |
| 90 |
295100409 |
WHEEL ASS'Y 12 - Call your local BRP dealership |
| 90a |
271002263 |
RIM_12 INCH ASSY - Call your local BRP dealership |
| 90b |
271001678 |
TIRE_4,80X12B - Call your local BRP dealership |
| 100 |
269800122 |
NUT - Call your local BRP dealership |
| 200 |
262000042 |
WHEEL FENDER, GREY - Call your local BRP dealership |
| 210 |
269800901 |
FENDER BRACKET 7.33 X 17.85 - Call your local BRP dealership |
| 220 |
269800902 |
BOLT BUTTON HEAD CAP SCREW 3/8 - 16 X 1 - Call your local BRP dealership |
| 230 |
269800298 |
HEXAGONAL BOLT - Call your local BRP dealership |
| 240 |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
