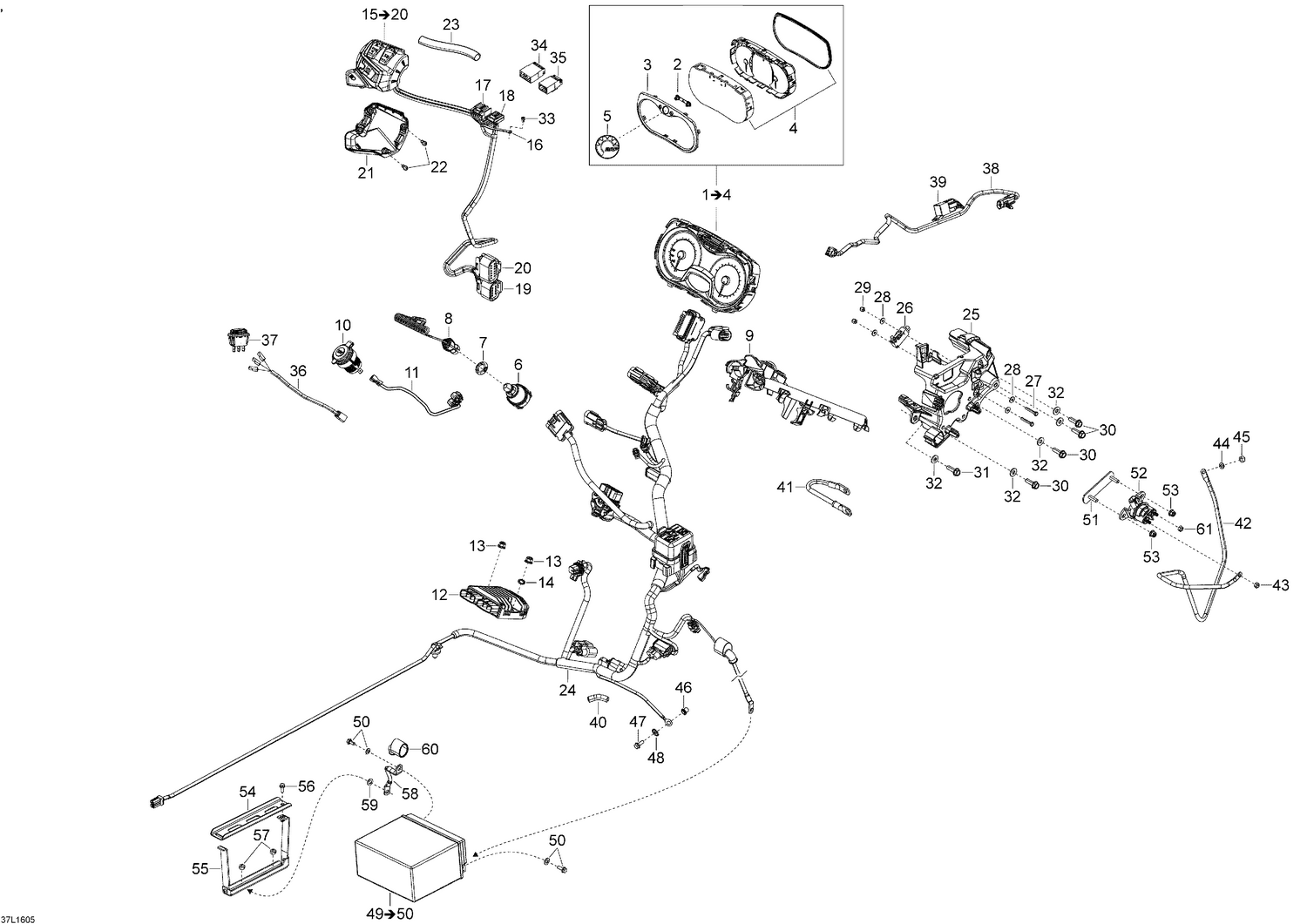

10- Electrical System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo |
| 6 | 515178840 | Terminal Dess One-Wire This part replaces 515178049. |
| 7 | 278002963 | Safety Nut (DESS Switch) |
| 8 | 515178044 | DESS Cap |
| 8 | 515178046 | DESS Cap (Learning Key) |
| 9 | 515177134 | Plate |
| 10 | 710001248 | DC Power Outlet |
| 11 | 515177400 | Power Outlet Harness |
| 12 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 234461608 | External Serrated Lock Washer 6 mm |
| 16 | 515175504 | Ring Terminal |
| 17 | 515175231 | Female Terminal |
| 17 | 515175543 | Female Housing, 6 Circuits |
| 18 | 515175231 | Female Terminal |
| 18 | 515175845 | Female Housing, 4 Circuits |
| 19 | 710001928 | Female Housing, 8 Circuits |
| 20 | 710001930 | Female Housing, 12 Circuits |
| 21 | 515177147 | Housing Plate |
| 22 | 250000671 | Torx Screw |
| 23 | 415129879 | Protector Tube |
| 25 | 515177347 | Plate |
| 26 | 515177460 | Switch Ass'y |
| 27 | 207132044 | Hex. Cap Screw M3 x 20 |
| 28 | 234032600 | Flat Washer |
| 29 | 232531423 | Elastic Stop Nut M3 |
| 30 | 210262040 | Forming Screw M6 x 20 |
| 31 | 210262550 | Hex. Flanged Forming Screw M6 X 25 |
| 32 | 250200039 | Flat Washer |
| 33 | 250000690 | Forming Screw M5 x 10 |
| 34 | 515175662 | Male Housing, 6 Circuits |
| 35 | 515175846 | Male Housing, 4 Circuits |
| 36 | 515179615 | NEEDS DESCRIPTION This part replaces 515177568. |
| 37 | 515177569 | ECO Rocker Switch |
| 39 | 710010053 | RELAY This part replaces 515177041. |
| 40 | Not | Available As Spare Part - Trim |
| 41 | 515177014 | Ground Wire |
| 42 | 515177427 | Battery Wire |
| 43 | 232561434 | Elastic Stop Nut M6 |
| 44 | 234061410 | Flat Washer 6 mm |
| 45 | 232561434 | Elastic Stop Nut M6 |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 207662044 | Hex. Flange Screw M6 X 20 |
| 48 | 250200041 | Serrated Lock Washer |
| 50 | 250000282 | Battery Bolt Kit |
| 51 | 515177740 | Relay Support |
| 52 | 278003012 | Starter Relay |
| 53 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 54 | 518327281 | Battery Strap |
| 55 | 518327282 | Battery Strap |
| 56 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 57 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 58 | 515176780 | Ground Wire |
| 59 | 234061410 | Flat Washer 6 mm |
