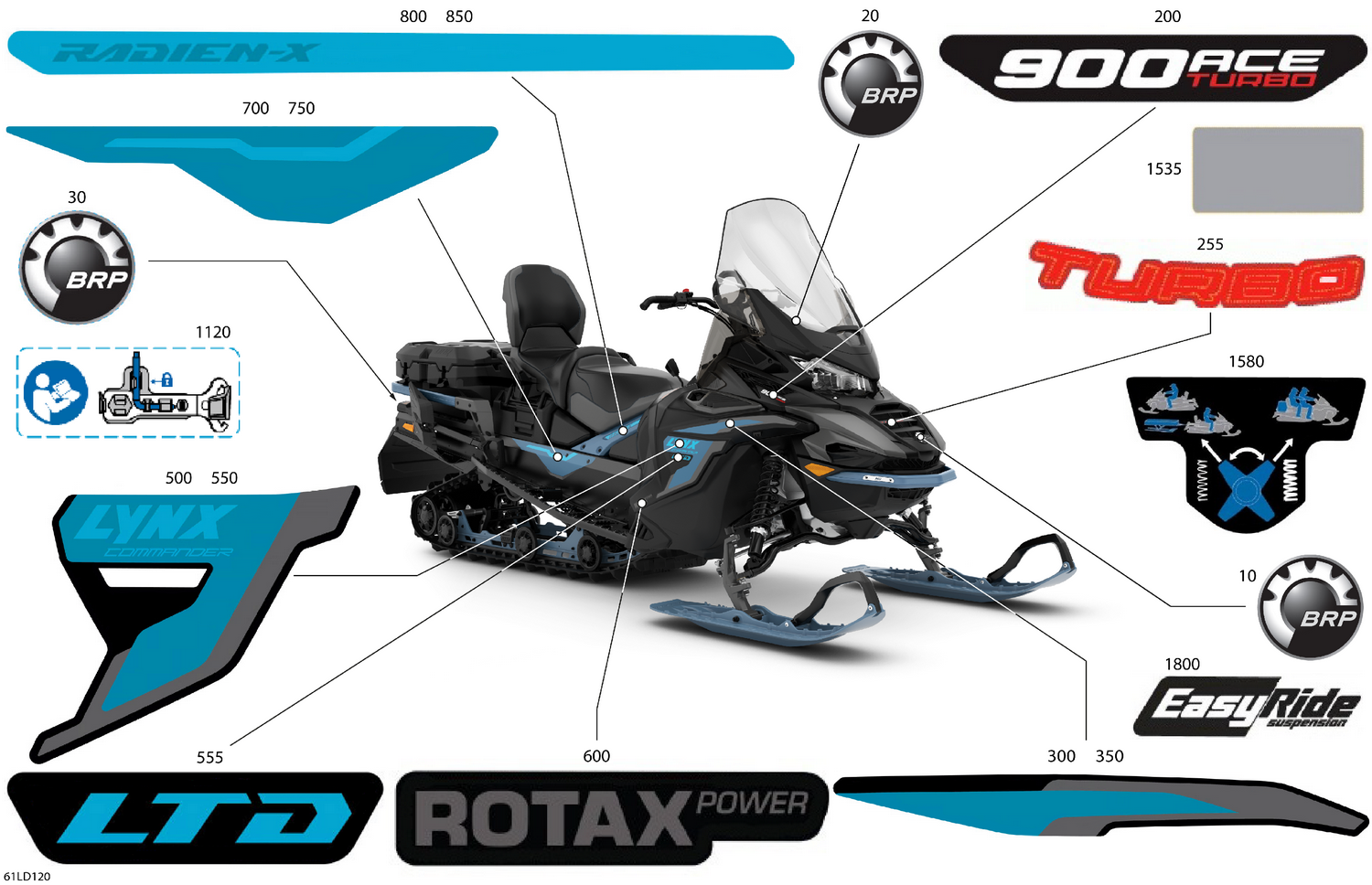

07- Body - Decals
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 20 | 516010651 | BRP Logo 20 MM x 2 MM |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516009687 | Upper Side Panel Decal "900 ACE Turbo" |
| 255 | 516009698 | Hood Decal "Turbo" |
| 300 | 516011823 | LH Top Panel Decal |
| 350 | 516011824 | RH Top Panel Decal |
| 500 | 516011825 | LH Middle Panel Decal |
| 550 | 516011826 | RH Middle Panel Decal |
| 555 | 516011827 | LH/RH Middle Panel Decal |
| 600 | 516008760 | Decal "Rotax Power" |
| 700 | 516011832 | LH Middle Tunnel Decal |
| 750 | 516011833 | RH Middle Tunnel Decal |
| 800 | 516011835 | LH Cross Member Decal |
| 850 | 516011836 | RH Cross Member Decal |
| 1120 | 516011629 | Tool Instruction Label |
| 1535 | 516009954 | Protective Decal |
| 1580 | 516009928 | Suspension Adjustment Decal |
