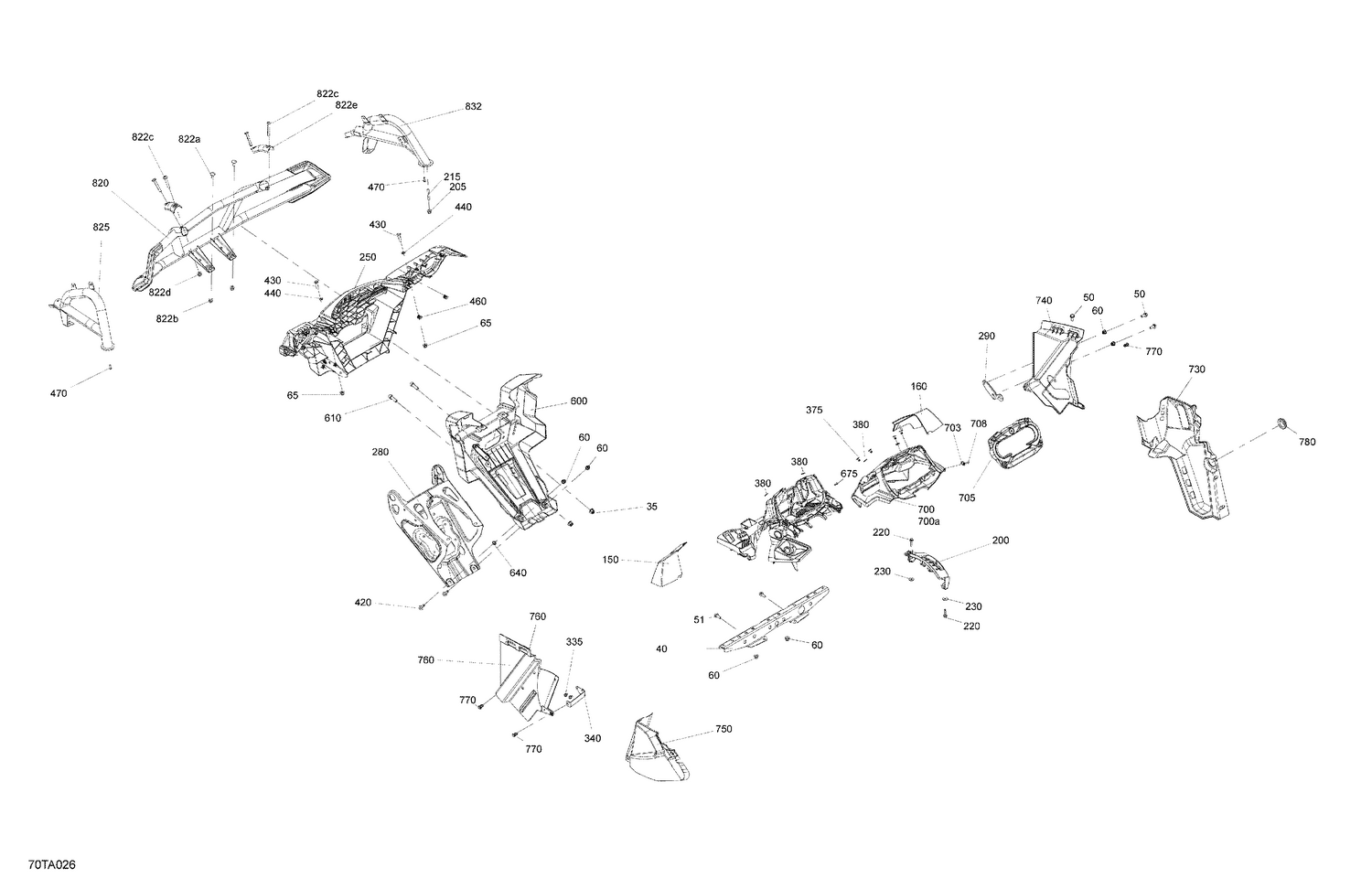

07- Body - Front Section
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 40 | 705006220 | Front Bumper Center Support |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 65 | 233281464 | Elastic Flange Nut M8 |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 200 | 715007676 | Shifter Gate Ass'y |
| 205 | 233281434 | Hex. Flange Elastic Nut M8 |
| 215 | 206285044 | Socket Set Screw M8 x 50 |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705012822 | Fascia |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 290 | 705004565 | Lower Fender Support |
| 335 | 210261040 | Hex. Flange Screw M6 X 10 |
| 340 | 705007140 | LH Inner Fender Bracket |
| 375 | 293150104 | Pop Rivet 3/16" |
| 380 | 517124300 | Washer |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 207183054 | Hex. Cap Screw M8 X 30 |
| 440 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 460 | 517302785 | Edge Clip |
| 470 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 600 | 705006299 | Front Guard Plate |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 640 | 705004497 | Ring |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 700a | 705013984 | Gauge Support |
| 703 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 705 | 705013985 | Front Gauge Trim |
| 708 | 250000797 | Torx Head Screw M4 X 16 |
| 730 | 705013925 | RH Wheel Arch Protector |
| 740 | 705011463 | RH Front Inner Fender |
| 750 | 705013924 | LH Wheel Arch Protector |
| 760 | 705017001 | LH Front Wheel Arch Protector This part replaces 705011465. |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 780 | 293250242 | Rubber Cover |
| 820 | 705014417 | Manta Green, Front Bumper |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 233281434 | Hex. Flange Elastic Nut M8 |
| 822c | 250000535 | Torx Screw M8 X 55 |
| 822d | 233281464 | Elastic Flange Nut M8 |
| 822e | 705008574 | Manta Green Upper Bracket |
| 825 | 705016594 | Manta Green, LH Radiator Support This part replaces 705014420. |
