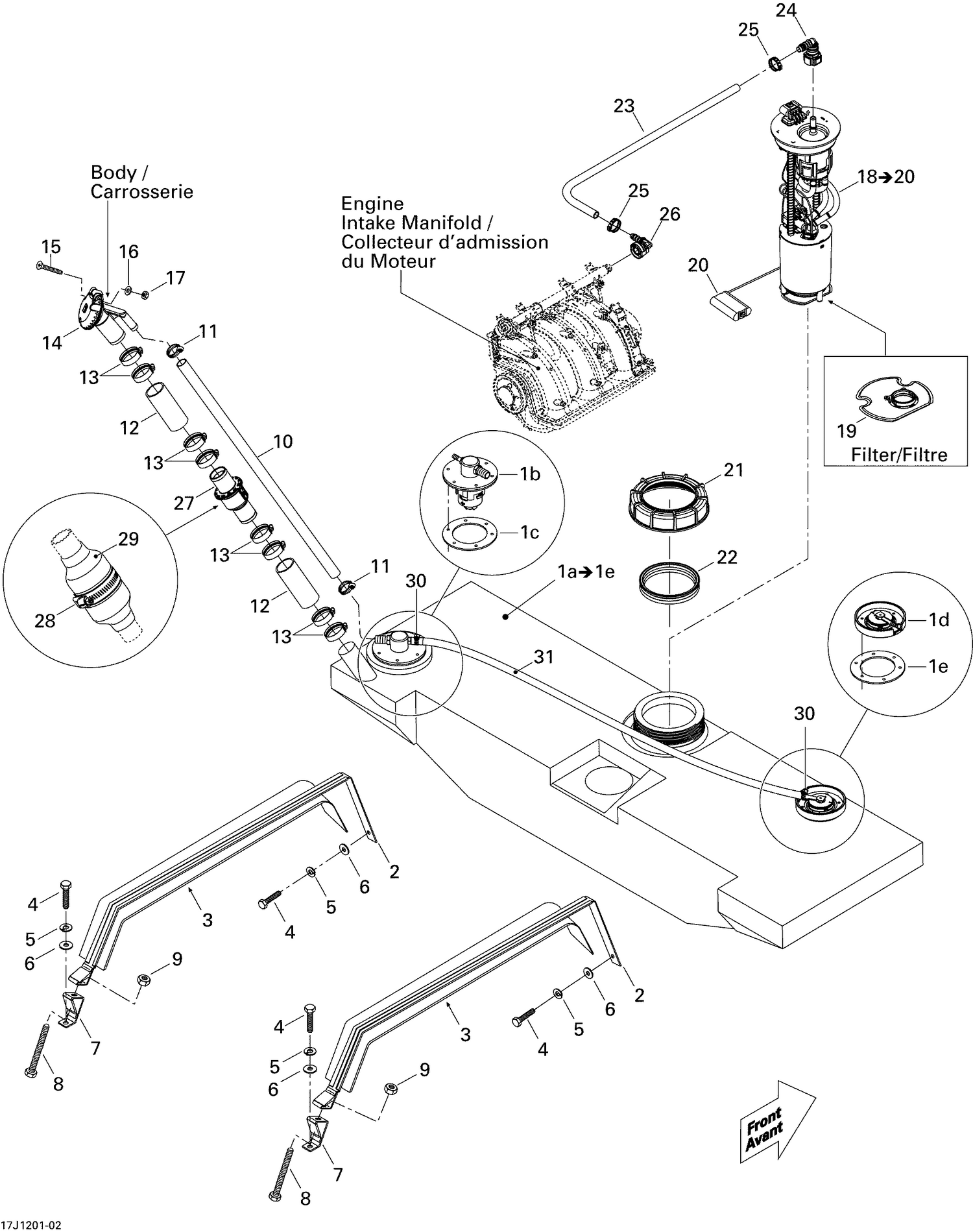

| Ref | Part Number | Description |
|---|
| 1b |
275500837 |
Fuel Limit Vent Valve |
| 1c |
204560439 |
Gasket |
| 1d |
275500838 |
Fuel Grade Valve |
| 1e |
204560440 |
Gasket |
| 2 |
204560181 |
FUEL TANK STRAP - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Protector Pad |
| 4 |
207183060 |
Hex. Screw M8 X 30 |
| 5 |
234181601 |
Lock Washer 8 mm, Stainless |
| 6 |
234082600 |
Flat Washer 8 mm, Stainless |
| 7 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 8 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 9 |
232581600 |
Hex. Elastic Nut M8 |
| 10 |
204560358 |
HOSE 16 MM - Call your local BRP dealership |
| 11 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 12 |
204560401 |
FILLER NECK HOSE - Call your local BRP dealership |
| 13 |
275500823 |
NORMA CLAMP - Call your local BRP dealership |
| 14 |
275500816 |
FUEL FILLER NECK ASS'Y - Call your local BRP dealership |
| 15 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 16 |
234040600 |
Flat Washer 4 mm |
| 17 |
232541600 |
Elastic Stop Nut M4 |
| 19 |
270600113 |
Fuel Filter This part replaces 270600108. |
| 20 |
275500780 |
Sensor Lever This part replaces 270600103. |
| 21 |
204100257 |
SPECIAL NUT M150 - Call your local BRP dealership |
| 22 |
293250173 |
Gasket |
| 23 |
204560396 |
HOSE 5/16 - Call your local BRP dealership |
| 24 |
275500700 |
Quick Attach 90° |
| 25 |
293650084 |
Norma Clamp |
| 26 |
293710105 |
Elbow Fitting 90° |
| 27 |
275500836 |
FILLER HOSE INLET CONTROL VALVE - Call your local BRP dealership |
| 28 |
293650179 |
Tridon Clamp |
| 29 |
204560444 |
HEAT SHIELD - Call your local BRP dealership |
| 30 |
293650084 |
Norma Clamp |
