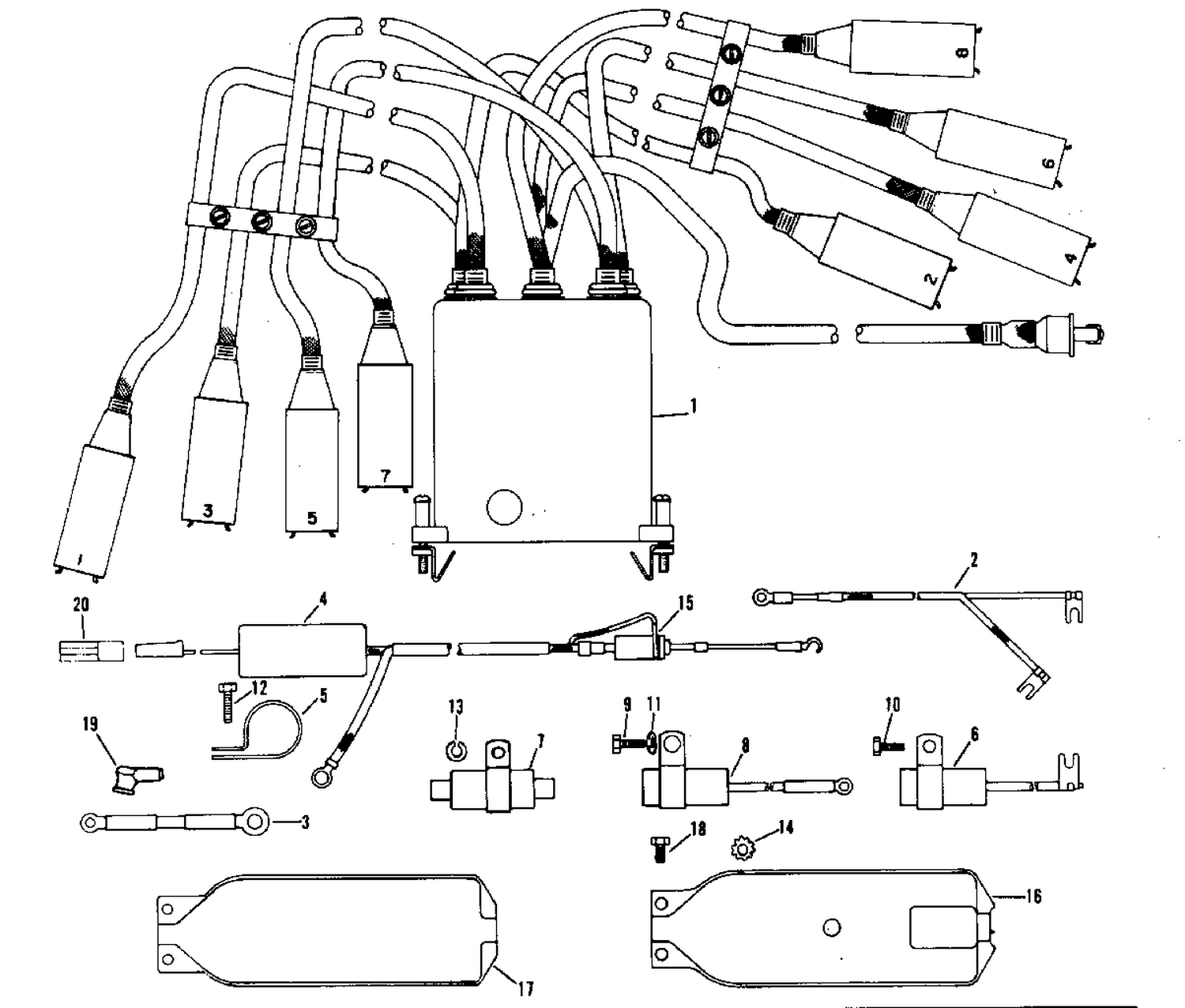

| Ref | Part Number | Description |
|---|
| 1 |
0381384 |
SHIELDING,Ignition & distributor |
| 2 |
0380233 |
LEAD,Coil to distributor |
| 3 |
0380234 |
LEAD, Condenser to alternator |
| 4 |
0379704 |
CHOKE |
| 5 |
0311353 |
CLAMP,Choke |
| 6 |
0378491 |
CONDENSER, Voltage regulator |
| 7 |
0380496 |
CONDENSER, Alternator |
| 8 |
0380242 |
CONDENSER, Coil, positive terminal |
| 10 |
0304512 |
SCREW |
| 11 |
0306522 |
LOCKWASHER |
| 12 |
0304055 |
SCREW This part replaces 0309748. |
| 14 |
0308134 |
LOCKWASHER |
| 15 |
0510467 |
TERMINAL,Connector |
| 16 |
0310829 |
COVER,Coil,upper |
| 17 |
0379703 |
BASE & NUT,Coil |
| 18 |
0510490 |
SCREW |
| 19 |
0510434 |
NIPPLE,Terminal insulating |
| 0381383 |
0381383 |
SUPPRESSION KIT,200 hp stern drive |
