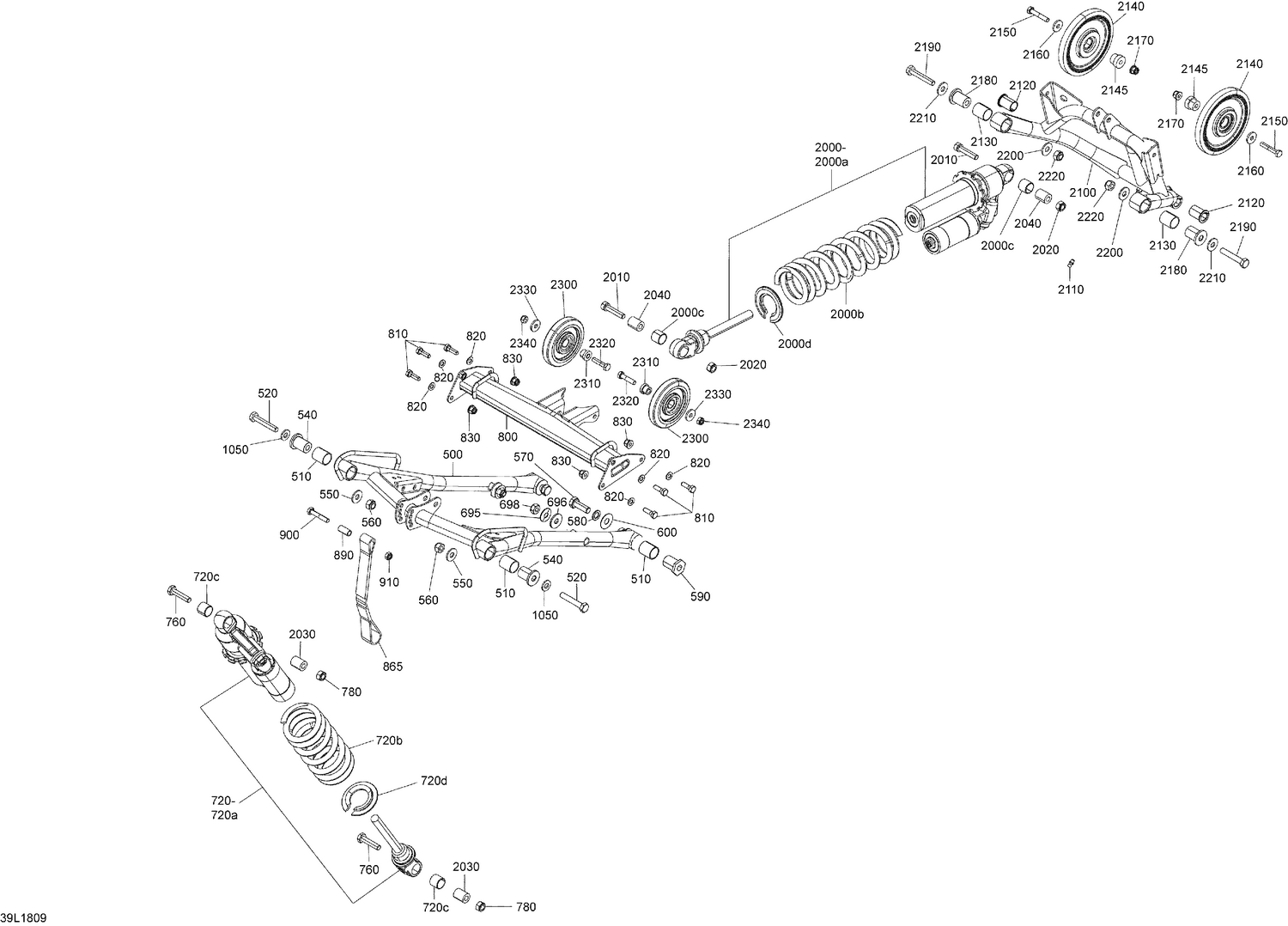

08- Rear Suspension RAVE - 600HO E-TEC - RS
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 503193561 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 250000696 | Hexagonal Screw |
| 530 | 503191926 | Washer |
| 540 | 503194580 | Upper Axle Sleeve |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503194579 | Lower Axle Sleeve |
| 600 | 503190656 | Washer |
| 695 | 25004 | Cup Spring |
| 696 | 234002600 | Flat Washer 10 mm, Stainless |
| 698 | 233401414 | Lock Spring Nut M10 |
| 720 | Not | Available As Spare Part - Center Shock Ass'y |
| 720a | 503194792 | Shock |
| 720b | 503192355 | Spring |
| 720c | 31094 | Cushion |
| 720d | 605354631 | Spring Lock |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 800 | 503193623 | Middle Beam |
| 810 | 250000556 | Hexagonal Screw |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 865 | 605355116 | Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2000 | Not | Available As Spare Part - |
| 2000a | 503194794 | Shock |
| 2000b | 503192356 | Spring |
| 2000c | 31094 | Cushion |
| 2000d | 605354631 | Spring Lock |
| 2010 | 40134 | Screw Socket HD.DIN 912 This part replaces 205004544. |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
| 2040 | 5446652 | Bushing |
| 2100 | 503193571 | Rear Arm Weld |
| 2110 | 408200700 | Grease Fitting |
| 2120 | 503191640 | Cushion |
| 2130 | 503191554 | Bushing |
| 2140 | 503193852 | Idler Wheel |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503194580 | Upper Axle Sleeve |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2210 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
