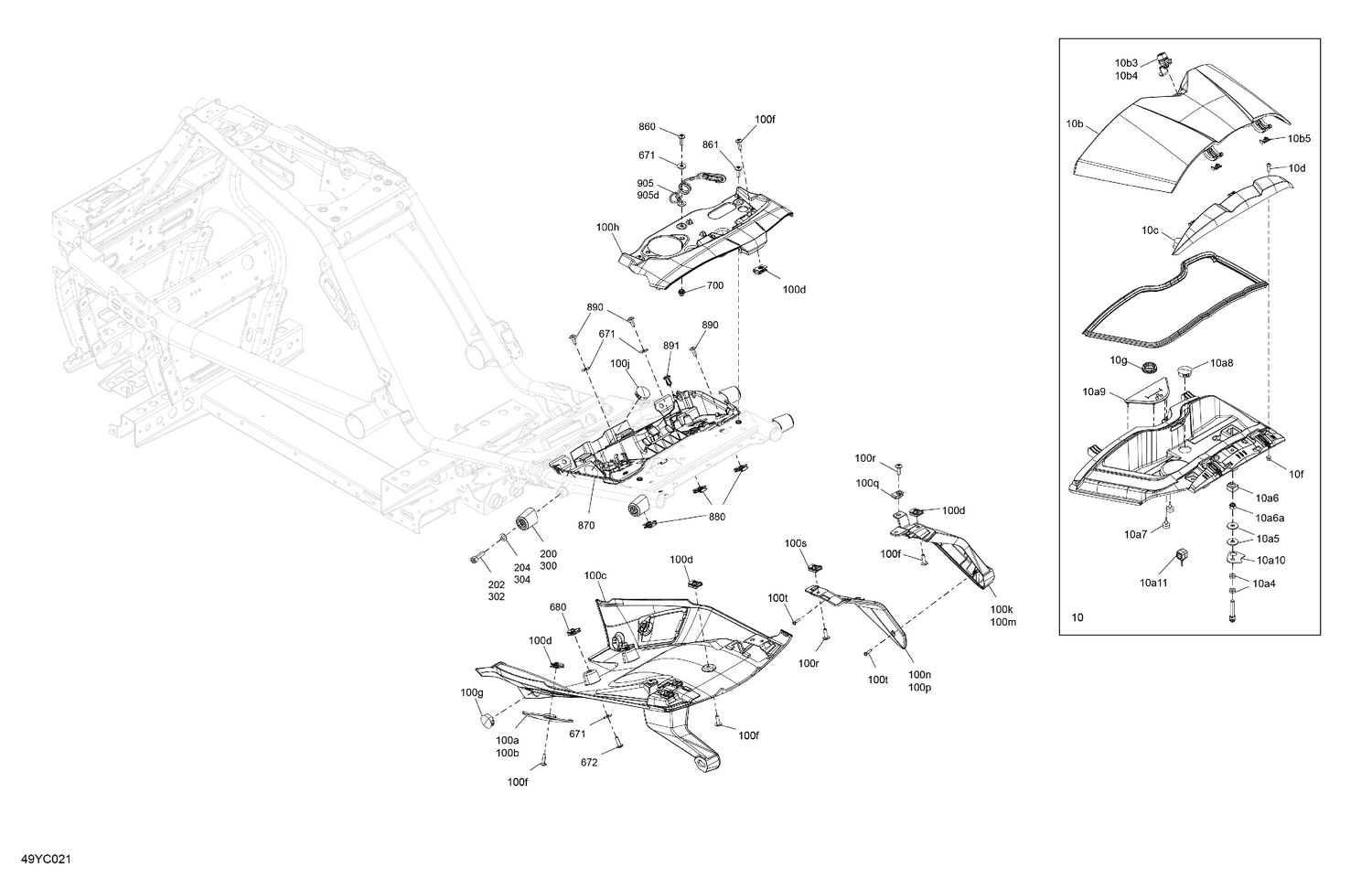

| Ref | Part Number | Description |
|---|
| 10a10 |
708001909 |
Washer |
| 10a11 |
708304575 |
Rubber Stopper |
| 10a4 |
232180600 |
Hex. Jam Nut M8 |
| 10a5 |
234082410 |
Flat Washer 8 mm |
| 10a6a |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10a7 |
708000759 |
Rubber Stopper |
| 10a8 |
414916600 |
Black, Nylon Cap |
| 10a9 |
708301604 |
Backrest Trim |
| 10b3 |
219800407 |
Lock Kit |
| 10b4 |
219800407 |
Lock Kit |
| 10b5 |
708301727 |
Opening Limiter |
| 10c |
708301416 |
Trim |
| 10d |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 10f |
233251434 |
Flange Elastic Nut M5 |
| 10g |
710002926 |
Grommet Boot |
| 100a |
708301513 |
LH Front Cap |
| 100b |
708301514 |
RH Front Cap |
| 100c |
708001415 |
Under Tail Cover |
| 100d |
250100208 |
Panel Nut M6 X 1.0 |
| 100f |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100g |
414916600 |
Black, Nylon Cap |
| 100h |
708002814 |
Taillight Support |
| 100j |
414916600 |
Black, Nylon Cap |
| 100k |
708001622 |
LH Support |
| 100m |
708001623 |
RH Support |
| 100n |
708001624 |
LH Cap Support |
| 100p |
708001625 |
RH Cap Support |
| 100q |
250100198 |
Panel Nut M6 X 1.0 |
| 100r |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100s |
250100208 |
Panel Nut M6 X 1.0 |
| 100t |
250000759 |
Torx Truss Pt K40 X 16 |
| 200 |
708301525 |
Frame Protector |
| 202 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 204 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 300 |
708301525 |
Frame Protector |
| 302 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 304 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 671 |
234062670 |
Stainless Steel Flat Washer |
| 672 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 680 |
250100208 |
Panel Nut M6 X 1.0 |
| 700 |
250100242 |
Threaded Insert M6 X 1.0 |
| 860 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 861 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 870 |
708301698 |
Cargo Rear Support |
| 880 |
250100208 |
Panel Nut M6 X 1.0 |
| 890 |
250000881 |
Torx Truss M8 X 16 |
| 891 |
293150230 |
Tuflok Plastic Rivet |
