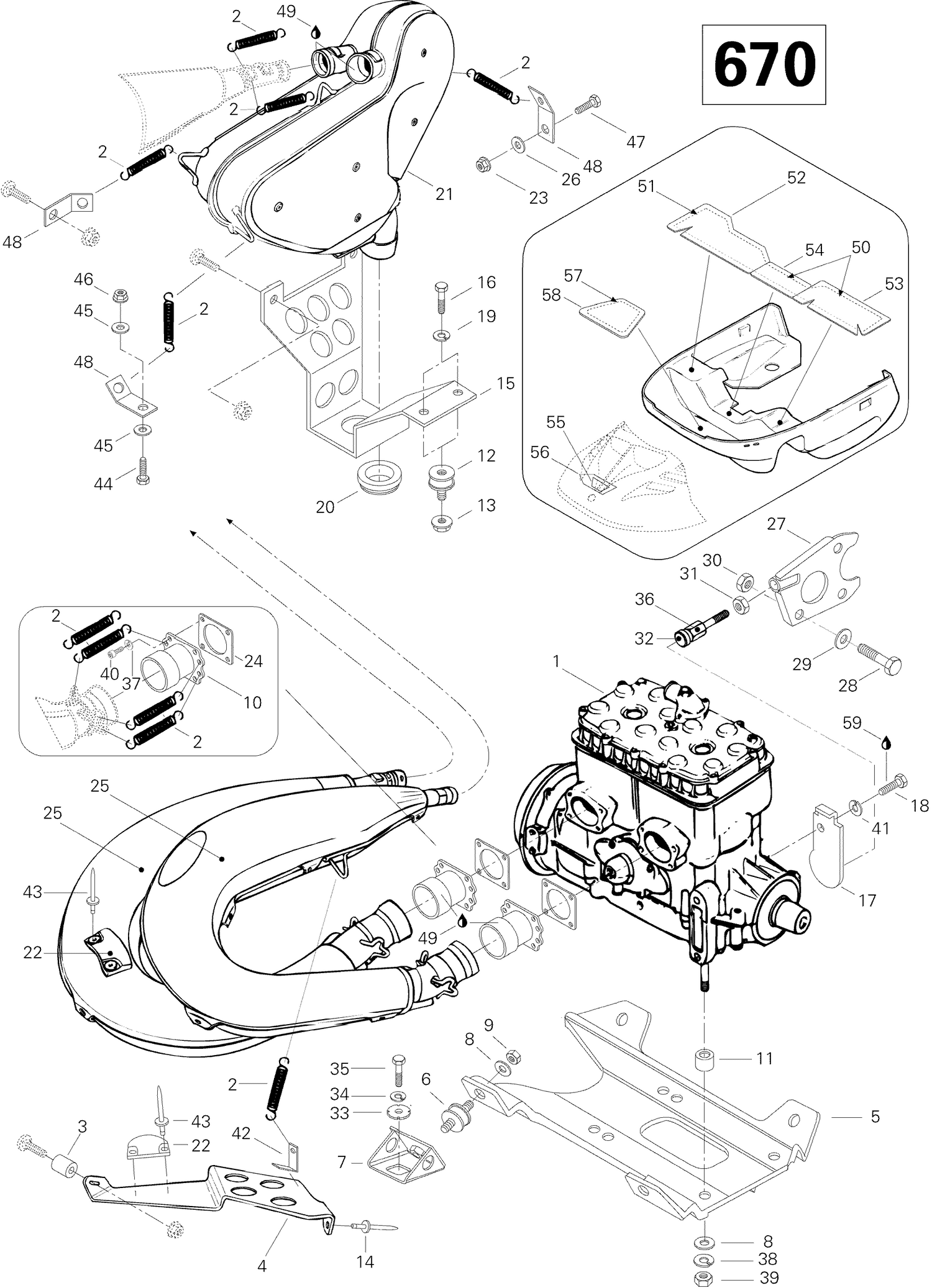

01- Engine And Engine Support 670
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400602300 | Moteur «670» |
| 2 | 415107100 | Spring This part replaces 414893700. |
| 3 | 517277700 | Spacer |
| 4 | 514043000 | Support,Tuned Pipe |
| 5 | 512054500 | Engine Support |
| 6 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 512050900 | Engine Support |
| 8 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 9 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 10 | 420978817 | Exhaust Socket |
| 11 | 503128100 | Spacer |
| 12 | 570016100 | Rubber Mount |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 14 | 390906800 | Pop Rivet 3/16" |
| 15 | 514031900 | Support (Muffler) |
| 16 | 222081265 | Screw Hex. M8 x 12 |
| 17 | 512052900 | Stopper Plate |
| 18 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 19 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 20 | 570027300 | Exhaust Grommet |
| 21 | 580629000 | Muffler |
| 22 | 570044100 | Rubber Pad |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 24 | 420850552 | Gasket |
| 25 | 514041500 | Tune Pipe (PTO) |
| 25 | 514041600 | Tune Pipe (MAG) |
| 26 | 224060201 | Flat Washer |
| 27 | 512053400 | Plate |
| 28 | 207182544 | Hex. Screw M8 X 25 This part replaces 222082565. |
| 29 | 234081410 | Flat Washer 8 mm This part replaces 224081171. |
| 30 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 31 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 32 | 570045400 | STOPPER - Call your local BRP dealership |
| 33 | 512056700 | Lock Washer This part replaces 517168000. |
| 34 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 35 | 207102544 | Hex. Screw M10 X 25 This part replaces 222002565. |
| 36 | 512052400 | Screw |
| 37 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 38 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 39 | 232006414 | Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 40 | 205062544 | Socket Head Screw M6 X 25 This part replaces 222962565. |
| 41 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 42 | 514043200 | Bracket-Spring |
| 43 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 44 | 207152044 | Hex. Screw M5 X 20 This part replaces 222052065. |
| 45 | 224061201 | Flat Washer |
| 46 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 47 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 48 | 514054522 | Spring Bracket This part replaces 514034000. |
| 49 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 50 | 514043700 | Insulator |
| 51 | 514043600 | Insulator |
| 52 | 414917100 | Sheet-Reflective |
| 53 | 414918300 | Sheet-Reflective |
| 54 | 414918400 | Sheet-Reflective |
| 55 | 514039000 | Insulator |
| 56 | 414947400 | Sheet-Reflective |
| 57 | 514039000 | Insulator |
| 58 | 414930900 | Sheet-Reflective |
