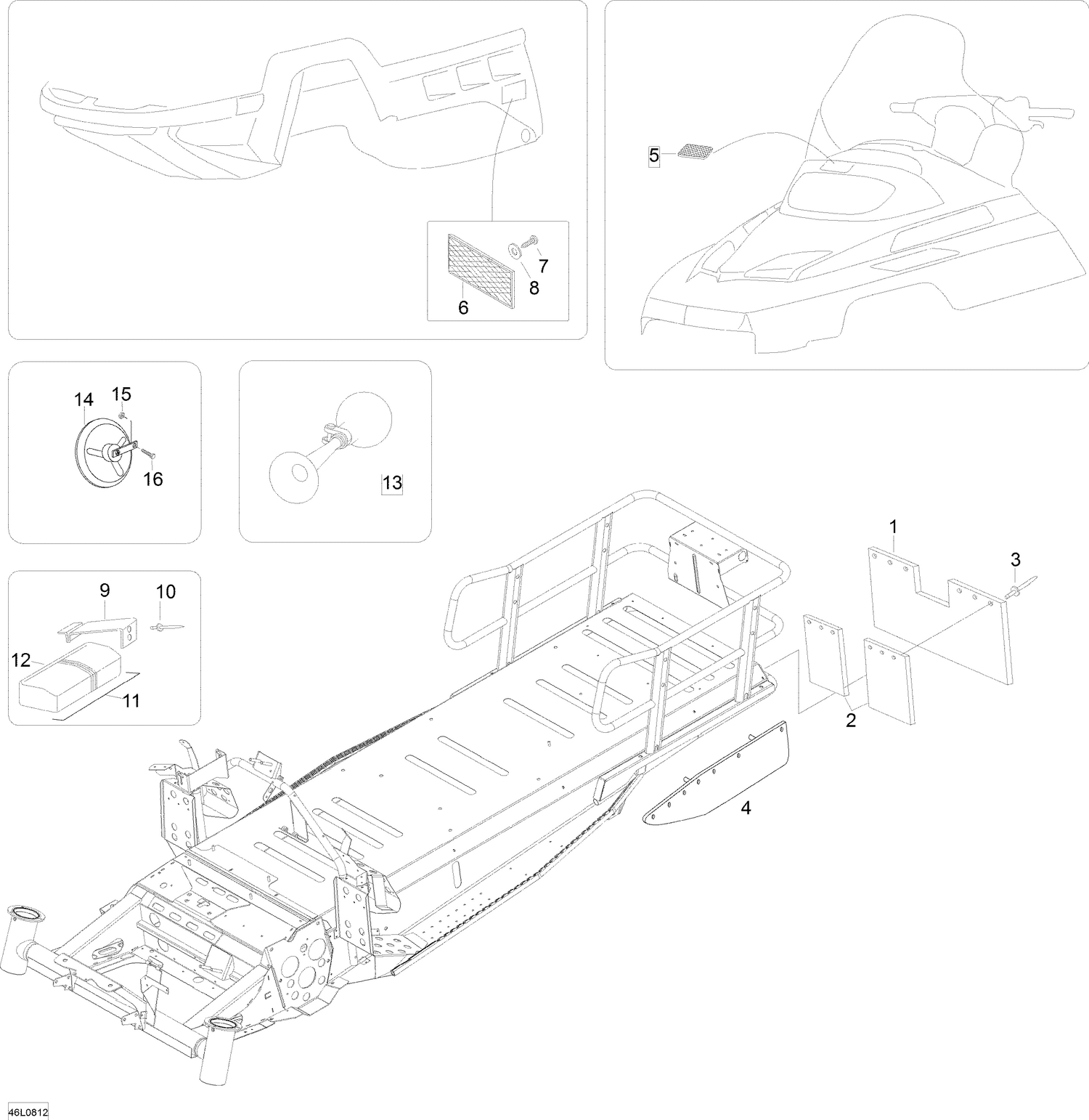

| Ref | Part Number | Description |
|---|
| 1 |
605354719 |
Snow guard |
| 2 |
605355316 |
SUPPORT - Call your local BRP dealership |
| 3 |
36037 |
Rivet |
| 4 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 4 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 5 |
21060 |
Reflector, Bright |
| 6 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 7 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 8 |
20018 |
Serrated lock washer A5,3 |
| 9 |
539455 |
TOOLKIT SUPPORT - Call your local BRP dealership |
| 10 |
36108 |
Rivet |
| 11 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 12 |
A50121179000 |
TOOL BOX - Call your local BRP dealership This part replaces 708200041. |
| 13 |
549011291 |
Horn This part replaces 415040700. |
| 14 |
42016 |
Horn |
| 16 |
40029 |
Screw |
