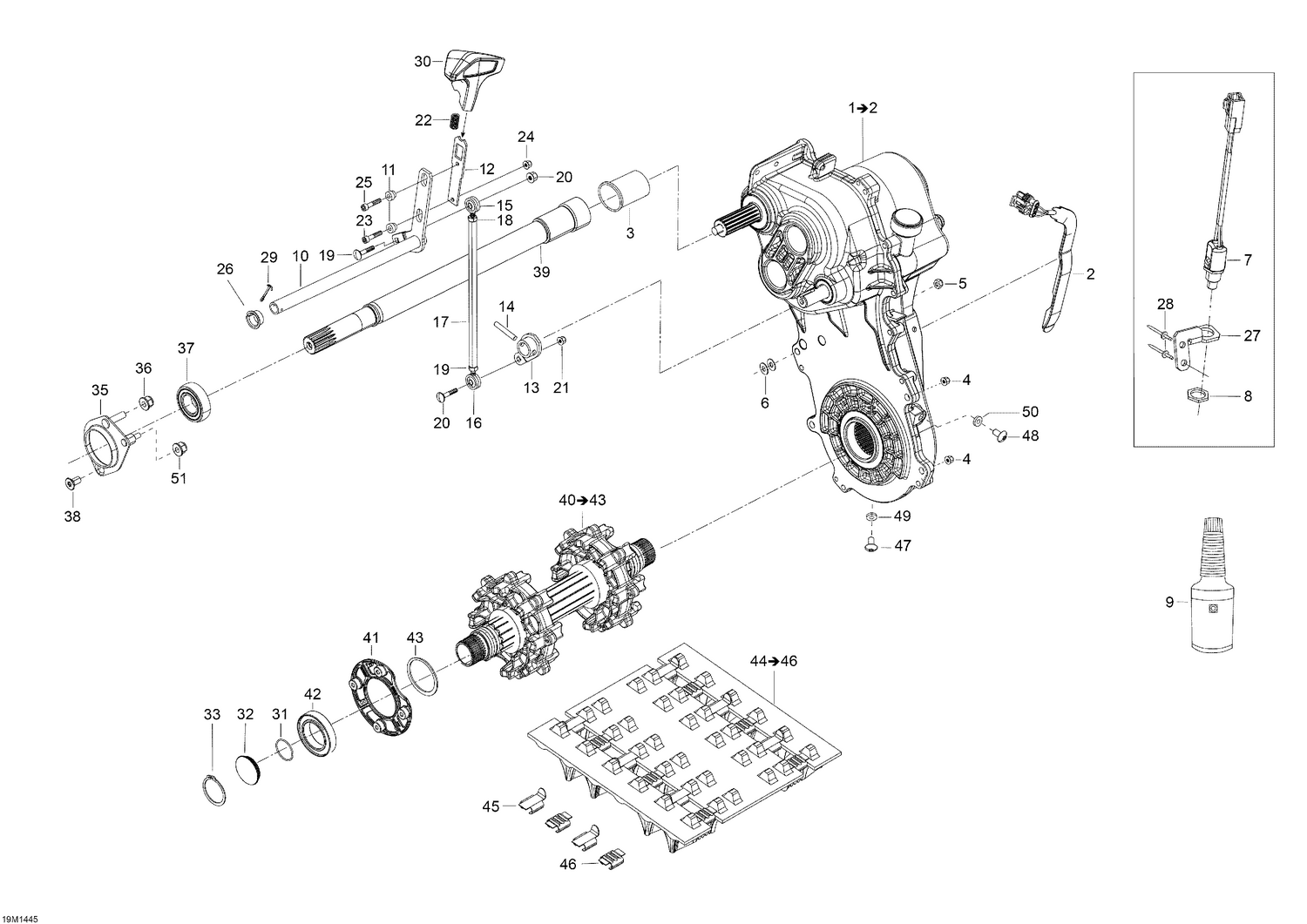

05- Drive System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 504152896 | Rotation Sensor |
| 3 | 504153054 | Protective Rubber |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | 503193095 | WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership |
| 7 | 515176472 | Switch Ass'y |
| 8 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 9 | 293600140 | SYNTHETIC OIL 75W-140 - Call your local BRP dealership |
| 10 | 504153288 | Lever Shifter This part replaces 504152887. |
| 11 | 504152787 | Sleeve |
| 12 | 504153287 | Shifter Arm This part replaces 504152831. |
| 13 | 504152834 | WELDED LEVER - Call your local BRP dealership |
| 14 | 41012 | Pin This part replaces M41012. |
| 15 | 707000689 | RH BALL JOINT - Call your local BRP dealership |
| 16 | 707000690 | LH BALL JOINT - Call your local BRP dealership |
| 17 | 504152836 | ROD - Call your local BRP dealership |
| 18 | 232061414 | Hex. Nut M6 |
| 19 | 232066414 | LH HEX. NUT M6 - Call your local BRP dealership |
| 20 | 207762044 | Carriage Bolt M6 X 20 |
| 21 | 232561434 | Elastic Stop Nut M6 |
| 22 | 504152882 | Spring |
| 23 | 205052544 | Socket Screw M5 X 25 |
| 24 | 233251434 | Flange Elastic Nut M5 |
| 25 | 250000676 | Forming Screw M5 x 16 |
| 26 | 504152890 | Bushing |
| 27 | 504152902 | Sensor Bracket |
| 28 | 293150163 | Rivet Hucklok |
| 29 | 250400035 | Cotter Pin |
| 30 | 504152837 | Handle |
| 31 | 293300122 | O-Ring |
| 32 | 504152619 | Magnetic Cap |
| 33 | 504152572 | Circlip |
| 35 | 504153187 | Bearing Housing |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 293350074 | Ball Bearing |
| 38 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 39 | 504152963 | Counter Shaft |
| 41 | 504153886 | Retaining Ring This part replaces 504152949. |
| 42 | 293350059 | Ball Bearing |
| 43 | 504153207 | Shim |
| 45 | 415129528 | Track Guide |
| 46 | 504152651 | Cleat |
| 47 | 619230037 | Allen Screw M8 x 10 |
| 48 | 619230038 | Allen Screw M10 x 16 |
| 49 | 615580812 | Gasket-ring - Call your local BRP dealership |
| 50 | 619230047 | Seal Ring |
