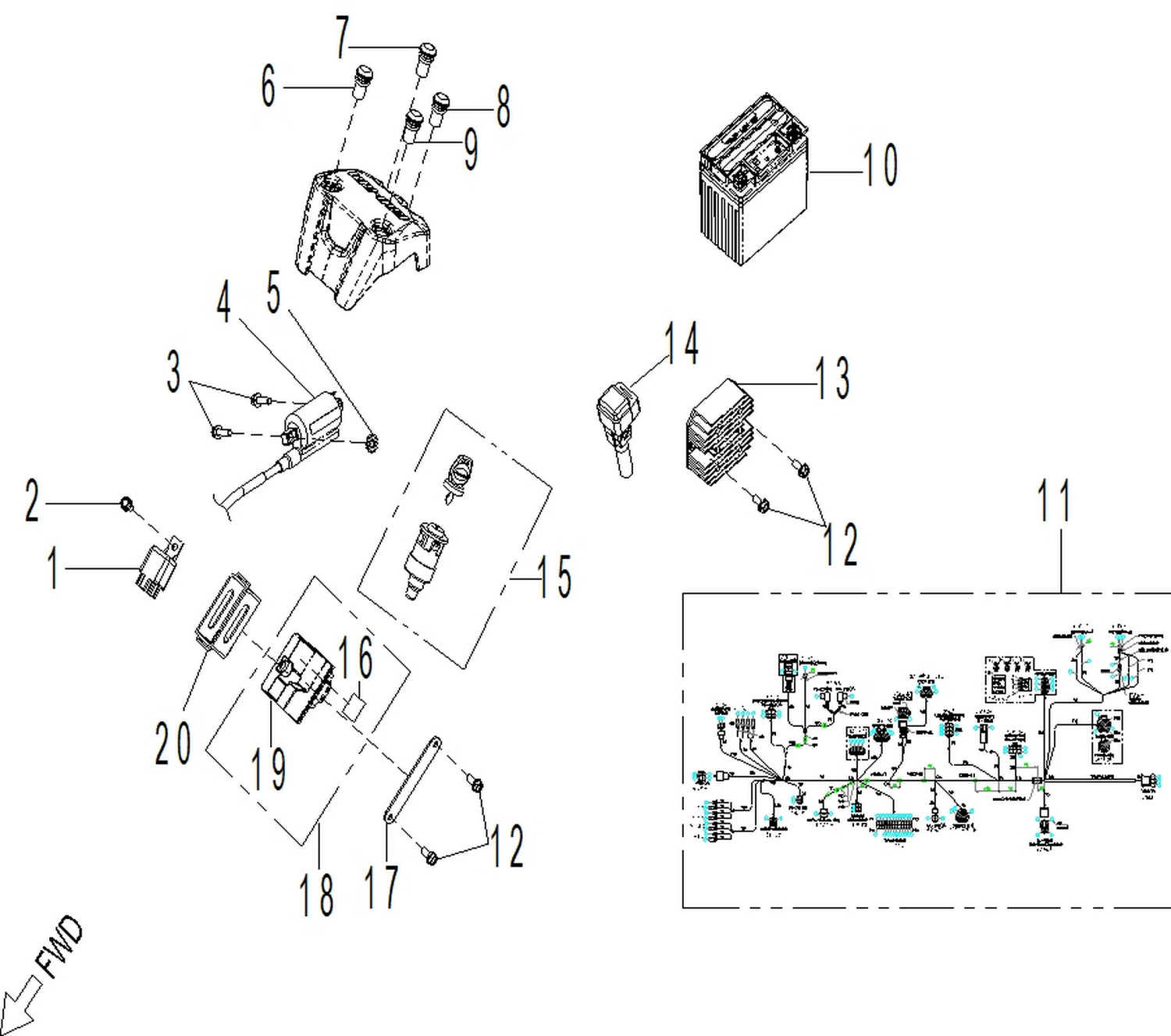

08- Electric - Electrical Parts XXC
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A3850262U000 | EFI Relay |
| 2 | A96000060128KL3 | Hexagonal Head Bolt M6 X 12 |
| 3 | A960000602080K3 | Hexagonal Bolt M6 X 20 |
| 4 | A30511T91000 | Ignition Coil |
| 5 | A9410306000000C3 | Self Locking Washer |
| 6 | A34915203000 | Indicator Light, Malfunction |
| 7 | A34918206000 | Indicator Light, Neutral Gear |
| 8 | A34911207000 | Indicator Light, Reverse |
| 9 | A34928002001 | Indicator Light, Low Fuel |
| 10 | V31500MAA020 | Battery YUASA YTX4L-BS |
| 11 | A32100T91000 | Main Harness |
| 12 | A96000060168KL3 | Hexagonal Head Bolt M6 X 16 |
| 13 | A3160062U000 | Regulator Rectifier |
| 14 | A38501201000 | Starter Relay |
| 17 | A30445T91000 | ECU Fixing Plate |
