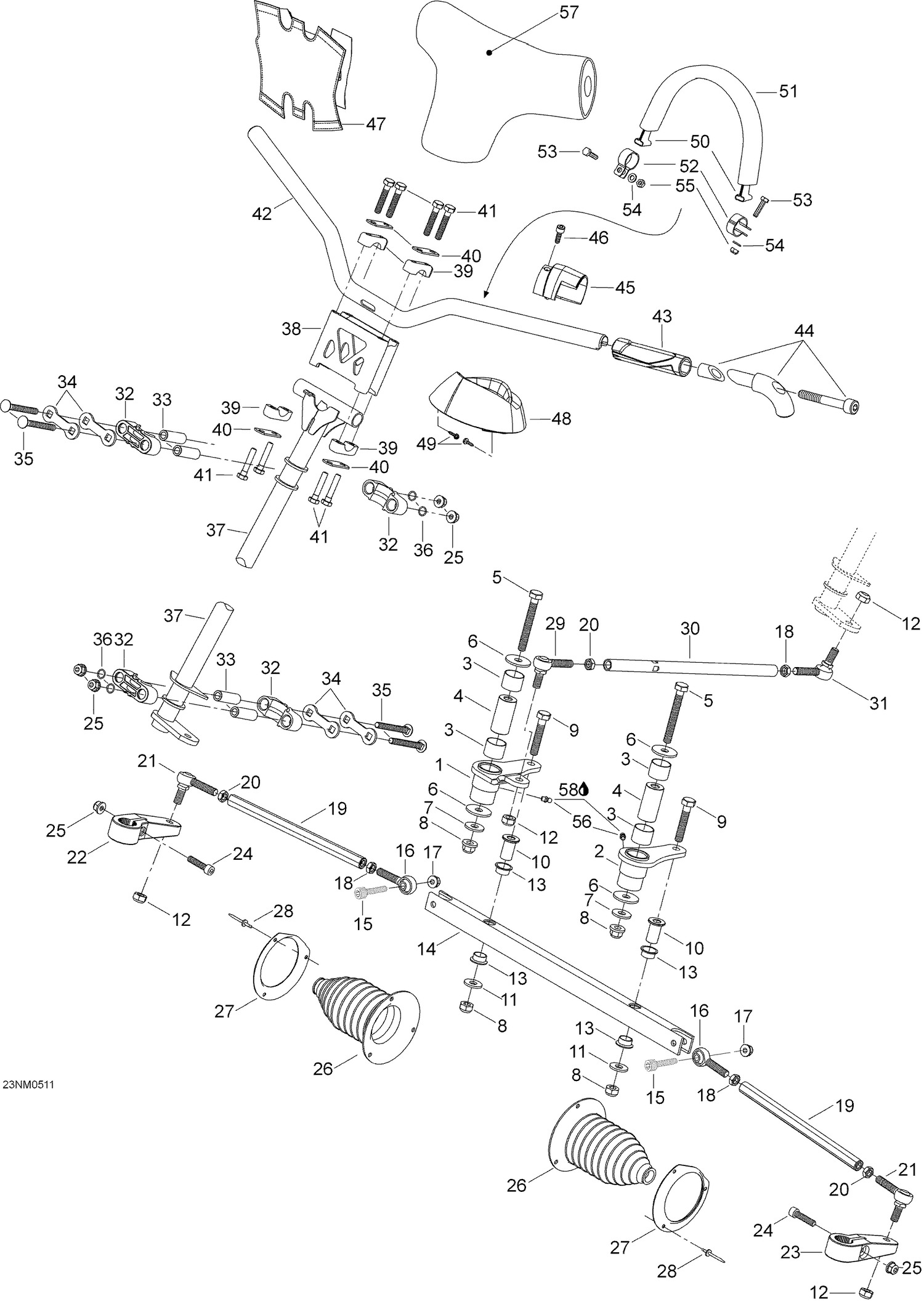

| Ref | Part Number | Description |
|---|
| 1 |
506151506 |
R.H. swivel arm |
| 2 |
506151623 |
LH SWIVEL ARM - Call your local BRP dealership |
| 3 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 4 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 5 |
40229 |
Hex. screw M10 x 80 |
| 6 |
20080 |
Washer |
| 7 |
20101 |
Washer, hardened M10 |
| 8 |
33012 |
Elastic stop nut M10 |
| 9 |
40018 |
Hex. screw M10 x 55 |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
20028 |
Washer |
| 12 |
33023 |
Nut elastic M10 |
| 13 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 14 |
605348756 |
Bar-swivel |
| 15 |
40395 |
Socket head screw M8 x 35 |
| 16 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 19 |
5346200 |
Tie Rod |
| 20 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 21 |
506151491 |
R.H. Joint ball |
| 22 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 23 |
506145900 |
LH STEERING ARM - Call your local BRP dealership |
| 24 |
40843 |
Socket head screw M8 x 35 |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 26 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 27 |
5347006 |
Retainer ring |
| 28 |
36009 |
Rivet |
| 29 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 30 |
506151375 |
TIE-ROD - Call your local BRP dealership |
| 31 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 32 |
506150400 |
Half housing |
| 33 |
506150500 |
Housing bushing |
| 34 |
506150600 |
Stopper plate |
| 35 |
207787044 |
Carriage bolt M8 x 70 |
| 36 |
506151140 |
O-RING - Call your local BRP dealership |
| 37 |
506151488 |
Main tube |
| 38 |
506151413 |
Extension |
| 39 |
709400919 |
Steering Support This part replaces 506151622. |
| 40 |
709400509 |
Stiffner This part replaces 506151196. |
| 41 |
250000074 |
Hex. screw M8 x 40 |
| 42 |
506151679 |
Handle bar |
| 43 |
506151595 |
Grip + heater |
| 44 |
506151939 |
Hook ass'y |
| 45 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 46 |
40390 |
Screw M8 x 20 |
| 47 |
506151265 |
Cover |
| 48 |
506151514 |
Collare, console |
| 49 |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 50 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 51 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 52 |
506148200 |
Support plate |
| 53 |
40031 |
Hex. screw M6 x 25 |
| 54 |
20003 |
Washer A6,4 |
| 55 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 56 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 57 |
605249241 |
Foam |
