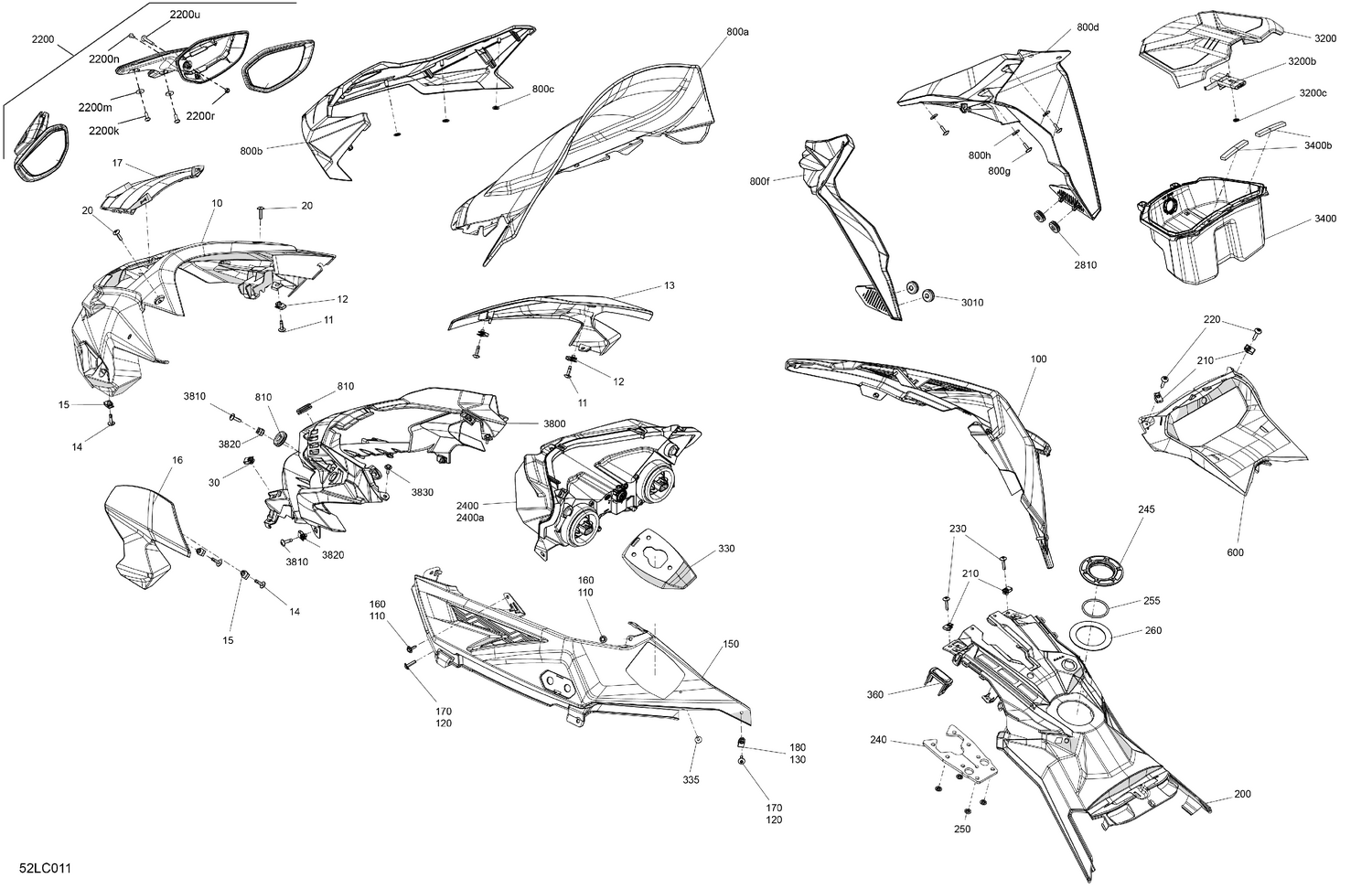

| Ref | Part Number | Description |
|---|
| 1 |
3852647 |
HOUSING, Front This part replaces 0912919. |
| 2 |
3853838 |
ROTOR ASSY. This part replaces 0985029. |
| 3 |
3853837 |
STATOR ASSY. This part replaces 0985028. |
| 4 |
3852646 |
HOUSING, Rear This part replaces 0912918. |
| 5 |
3852645 |
FAN This part replaces 0912917. |
| 6 |
3852644 |
PULLEY This part replaces 0912916. |
| 7 |
3852643 |
BEARING, Front & rear This part replaces 0912915. |
| 8 |
3852624 |
INSULATOR, Red This part replaces 0912893. |
| 9 |
3852623 |
INSULATOR, Boot This part replaces 0912892. |
| 10 |
3852642 |
RETAINER, Rear bearing This part replaces 0912914. |
| 10 |
517306816 |
Center Hood |
| 11 |
250000528 |
Torx Screw M5 X 20 |
| 11 |
3852641 |
DIODE FIELD This part replaces 0912913. |
| 12 |
250000958 |
Panel Nut M5 X 0.8 |
| 12 |
3853836 |
DIODE BRIDGE This part replaces 0985027. |
| 13 |
3852640 |
STRAP, B+ This part replaces 0912912. |
| 13 |
517306484 |
Black, RH Hood Front |
| 14 |
250000528 |
Torx Screw M5 X 20 |
| 14 |
3853835 |
BRUSH ASSEMBLY This part replaces 0985026. |
| 15 |
250000958 |
Panel Nut M5 X 0.8 |
| 15 |
3852639 |
SPACER, Fan This part replaces 0912911. |
| 16 |
3852638 |
KEY, Woodruff This part replaces 0912910. |
| 16 |
517306485 |
LH Hood Front |
| 17 |
3852637 |
FELT GASKET This part replaces 0912909. |
| 17 |
517306831 |
Hood Grill |
| 18 |
3853834 |
COVER ASSEMBLY This part replaces 0985025. |
| 19 |
3852636 |
CAPACITOR This part replaces 0912908. |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 20 |
3852635 |
STRAP, AC Tap This part replaces 0912907. |
| 21 |
3852625 |
LOCK WASHER, Pulley This part replaces 0912894. |
| 22 |
3852736 |
SCREW, Alternator ground This part replaces 0913580. |
| 23 |
3852630 |
NUT, Pulley This part replaces 0912902. |
| 24 |
0985713 |
SCREW, Front housing |
| 25 |
3852634 |
BOLT, Through This part replaces 0912906. |
| 26 |
3852734 |
SCREW, Front housing This part replaces 0913578. |
| 27 |
3852629 |
SCREW, Regulator This part replaces 0912900. |
| 28 |
3852732 |
WASHER, Insulator This part replaces 0913576. |
| 29 |
3852735 |
SCREW, Diode field This part replaces 0913579. |
| 30 |
250000958 |
Panel Nut M5 X 0.8 |
| 30 |
3852628 |
SCREW, Diode field This part replaces 0912898. |
| 31 |
3852633 |
NUT This part replaces 0912905. |
| 32 |
3852632 |
LOCKNUT This part replaces 0912904. |
| 33 |
3852631 |
Nut This part replaces 0912903. |
| 34 |
3852626 |
WASHER This part replaces 0912895. |
| 35 |
3853881 |
FAN BAFFLE This part replaces 0985889. |
| 36 |
3852737 |
SCREW, Terminal This part replaces 0913581. |
| 37 |
3852733 |
Washer This part replaces 0913577. |
| 39 |
0120177 |
L'WASHER, Alternator to brkt |
| 40 |
0914763 |
SCREW, Bracket to engine |
| 42 |
0912500 |
SCREW, Brace to engine |
| 43 |
0912487 |
BRACKET, Alternator |
| 45 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 46 |
0306837 |
SCREW Bracket |
| 47 |
0912486 |
BRACE, Alternator |
| 100 |
517307222 |
RH Upper Side Panel |
| 110 |
250000725 |
Screw M4 X 16 |
| 120 |
250000528 |
Torx Screw M5 X 20 |
| 130 |
250000958 |
Panel Nut M5 X 0.8 |
| 150 |
517307518 |
LH Upper Side Panel |
| 160 |
250000725 |
Screw M4 X 16 |
| 170 |
250000528 |
Torx Screw M5 X 20 |
| 180 |
250000958 |
Panel Nut M5 X 0.8 |
| 200 |
517306717 |
Rear Console 20", 24"" |
| 210 |
250000958 |
Panel Nut M5 X 0.8 |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000587 |
Torx Screw M5 X 26 |
| 240 |
517308182 |
Consoel Foam |
| 245 |
517306602 |
Console Nut |
| 250 |
732610072 |
Push Nut |
| 255 |
706002839 |
O-Ring |
| 260 |
517309451 |
Joint This part replaces 517307197. |
| 330 |
517308072 |
VIPH Adapter |
| 335 |
250000725 |
Screw M4 X 16 |
| 360 |
517306808 |
Switch Hole Cap |
| 600 |
517307441 |
Gauge Support |
| 800b |
517306183 |
Deep Black, Windshield Support |
| 800c |
732610072 |
Push Nut |
| 800d |
517306897 |
RH Upper Air Deflector |
| 800f |
517306896 |
LH Upper Air Deflector |
| 800g |
250000889 |
Screw M4 X 16 |
| 800h |
250200024 |
Rubber Washer 5 mm |
| 810 |
517303756 |
Grommet |
| 2200k |
250000742 |
Torx Screw M5 X 14 |
| 2200m |
250200024 |
Rubber Washer 5 mm |
| 2200n |
250001131 |
Torx Truss PT K40 x 12 |
| 2200r |
232551414 |
Elastic Stop Nut M5 |
| 2200u |
250000732 |
Torx Screw Nylon |
| 2400a |
415130081 |
Bulb |
| 2810 |
517307161 |
Grommet |
| 3010 |
517307161 |
Grommet |
| 3200b |
517305779 |
Latch |
| 3200c |
732610072 |
Push Nut |
| 3400b |
517305157 |
Seal Joint |
| 3800 |
517306824 |
Black, Head Lamp Bezel |
| 3810 |
250000528 |
Torx Screw M5 X 20 |
| 3820 |
250000958 |
Panel Nut M5 X 0.8 |
| 0985466 |
3860769 |
Alternator Kit This part replaces 0985466. |
