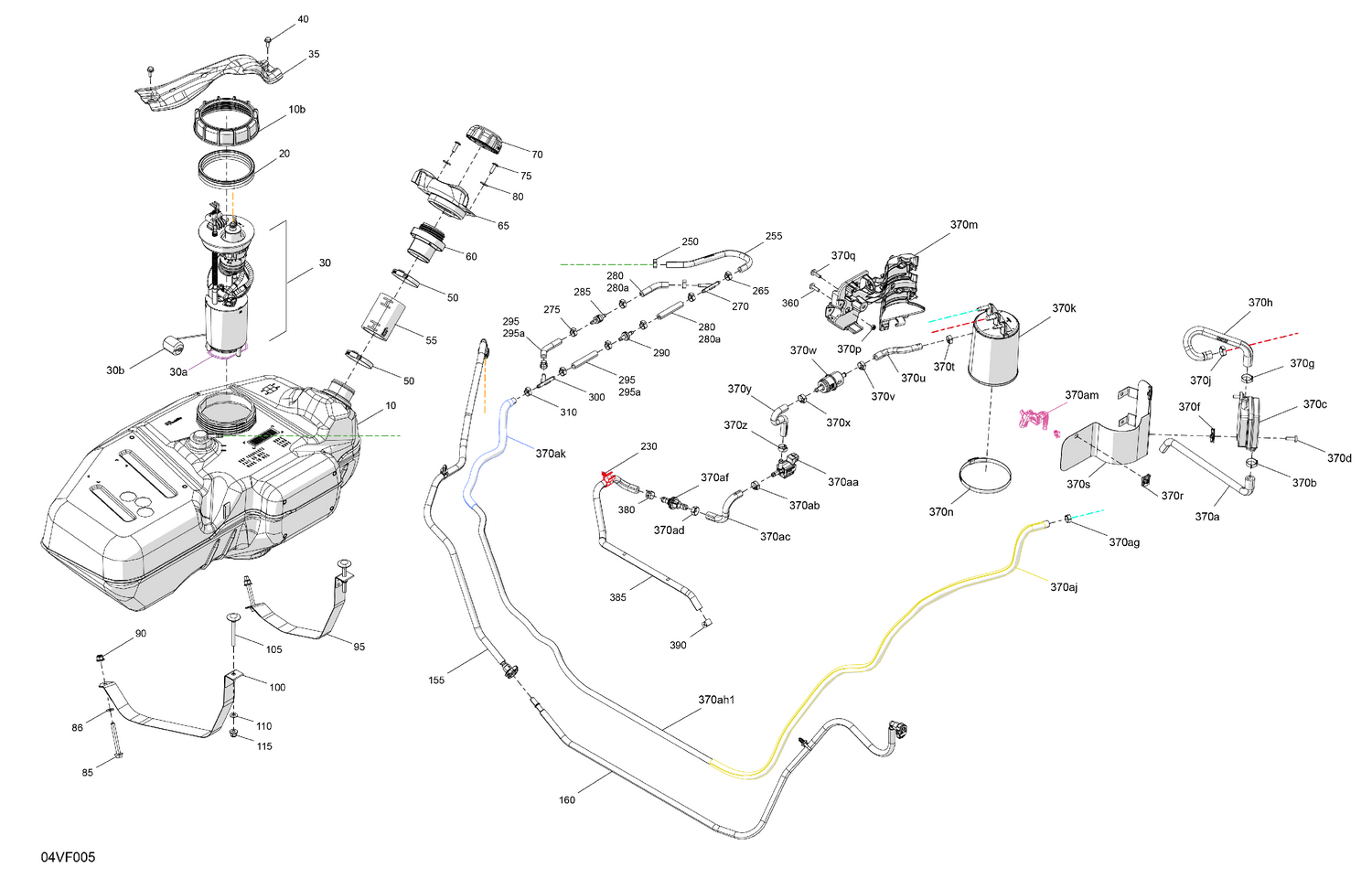

02- Engine - Fuel
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250514 | Pump Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 35 | 707901204 | Connector Guard |
| 40 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 50 | 293650081 | Norma Clamp |
| 55 | 709001697 | Filler Neck Hose |
| 60 | 709001220 | Filler Neck |
| 65 | 709001332 | Neck Support |
| 70 | 709000868 | Fuel Cap |
| 75 | 250000722 | Torx Screw M6 X 20 |
| 80 | 234062670 | Stainless Steel Flat Washer |
| 85 | 207687044 | Hex. Flange Screw M8 X 70 |
| 86 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 95 | 709001290 | RH Retaining Strap |
| 100 | 709001284 | LH Retaining Strap |
| 105 | 250001199 | Carriage Bolt M8 X 75 |
| 110 | 234081410 | Flat Washer 8 mm |
| 115 | 233281414 | Hex. Flange Elastic Nut M8 |
| 155 | 709001209 | Fuel Tank Hose |
| 160 | 709001320 | Fuel Tank Hose |
| 230 | 709000571 | Hose Support |
| 250 | 293650042 | Oetiker Clamp |
| 255 | 709001650 | Front Formed Drain Hose |
| 265 | 293650042 | Oetiker Clamp |
| 270 | 293710059 | Y-Fitting This part replaces 293710222. |
| 275 | 293650042 | Oetiker Clamp |
| 280a | XXX | Not Available As Spare Parts |
| 285 | 513034263 | Check Valve |
| 290 | 275501246 | Check Valve |
| 295a | XXX | Not Available As Spare Parts |
| 300 | 293710059 | Y-Fitting This part replaces 293710222. |
| 310 | 293650042 | Oetiker Clamp |
| 360 | 250000712 | Torx Screw M6 X 20 |
| 370a | 709001243 | Formed Hose |
| 370aa | 709001449 | Purge Valve |
| 370ab | 293650047 | Crimp Clamp, 15.3-706R |
| 370ac | 709001651 | Formed Hose |
| 370ad | 293650053 | Crimp Clamp |
| 370af | 275500941 | Check Valve |
| 370ag | 293650046 | Oetiker Clamp |
| 370ah1 | 219704611 | Hose 6.35Mm 5000Mm Long |
| 370aj | 219704408 | Tubing 16 Mm 1000Mm Long |
| 370ak | XXX | Not Available As Spare Parts |
| 370am | 710009741 | Module Wiring Harness |
| 370b | 293650186 | Oetiker Clamp |
| 370c | 709000524 | Air Filter |
| 370d | 250000712 | Torx Screw M6 X 20 |
| 370f | 250100208 | Panel Nut M6 X 1.0 |
| 370g | 293650186 | Oetiker Clamp |
| 370h | 709001242 | Formed Hose |
| 370j | 293650053 | Crimp Clamp |
| 370k | 709001673 | Charcoal Canister This part replaces 709001294. |
| 370m | 709001498 | Charcoal Canister Support |
| 370n | 293650054 | Tridon Clamp |
| 370p | 232561600 | Hex. Elastic Stop Nut M6 |
| 370q | 250000712 | Torx Screw M6 X 20 |
| 370r | 250100208 | Panel Nut M6 X 1.0 |
| 370s | 709001488 | Module Support |
| 370t | 293650042 | Oetiker Clamp |
| 370u | 709001496 | Charcoal Canister Hose |
| 370v | 293650046 | Oetiker Clamp |
| 370w | 513034047 | Fuel Filter |
| 370x | 293650047 | Crimp Clamp, 15.3-706R |
| 370y | 709001497 | Charcoal Canister Hose |
| 370z | 293650047 | Crimp Clamp, 15.3-706R |
| 380 | 293650321 | Spring Clamp |
| 385 | 709001540 | Formed Charcoal Canister Hose |
