Home / BRP / EVINRUDE / 1999 / 225 / E225FCZEEN 1999 / 05- Propulsion

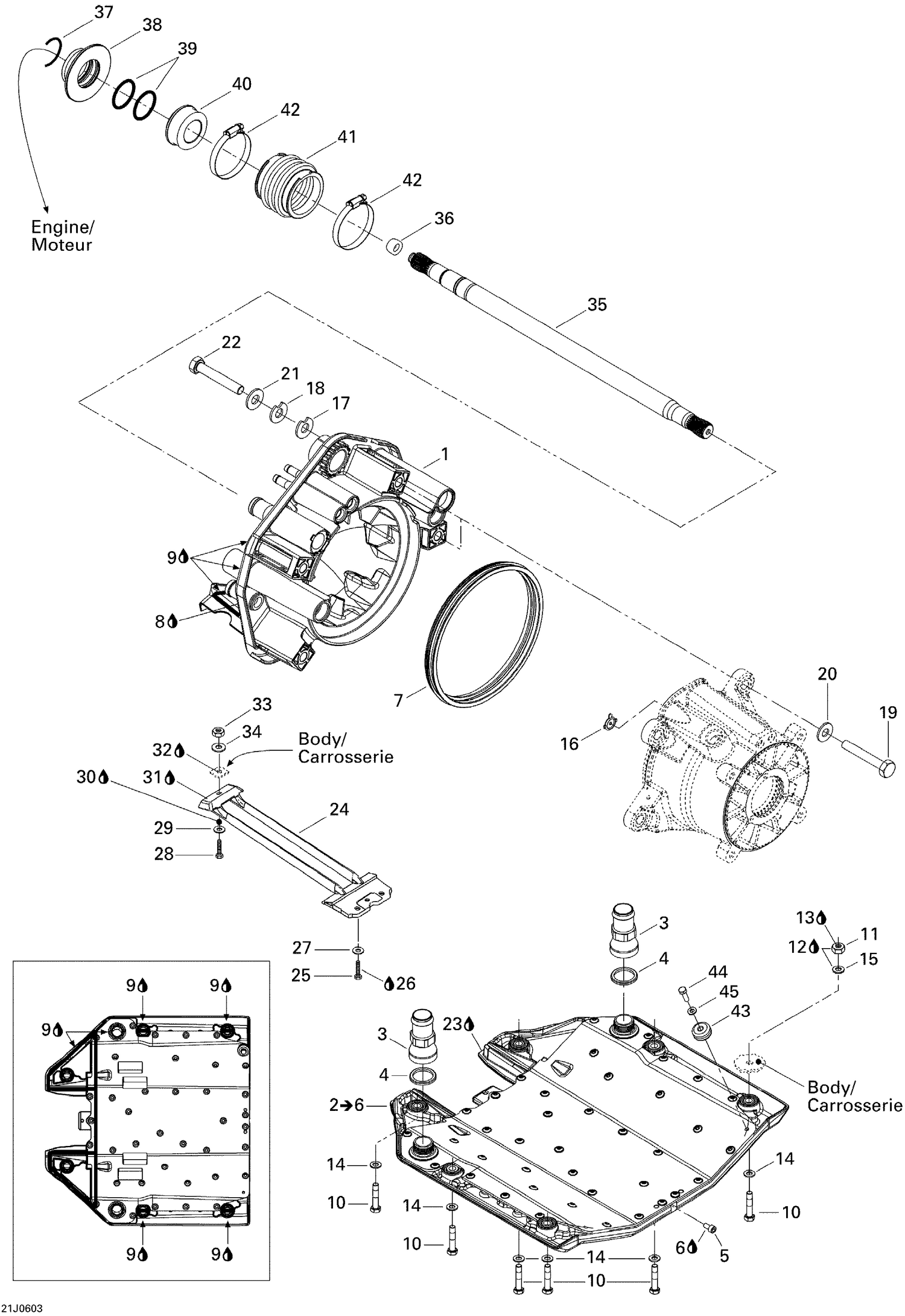

05- Propulsion

05- Propulsion

Parts (42)

RefPart NumberDescription
1 204120315 PUMP SUPPORT - Call your local BRP dealership
3 293710111 Straight Plastic Fitting
4 293300121 O-Ring
5 250500005 Socket Drain Plug M6 X 12
6 219704454 Was 293800013 Loctite 56765
7 293200087 Neoprene Seal
8 413708300 Glue Tube, Loctite 454, 20 G
9 219701421 Instant Gasket This part replaces 219700363.
10 207084060 Hex. Screw M8 X 40
11 232581600 Hex. Elastic Nut M8
12 296000309 Silicone Sealant 51388, 300 ml
13 293800060 Loctite 243, 10 ml
14 234081600 Stainless, Flat Washer 8 mm
15 234082600 Flat Washer 8 mm, Stainless
16 291004649 Reducer This part replaces 291001887.
17 272000053 Shim 0.3 mm
18 0460011 NEEDS DESCRIPTION This part replaces 204120067.
19 250000188 HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership
20 211200051 Flat Washer
21 234002600 Flat Washer 10 mm, Stainless
22 250000189 HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership
23 219701421 Instant Gasket This part replaces 219700363.
24 204120294 Pump Grate
25 207161660 Hex. Screw M6 X 16
26 293800005 Loctite 271, 10 ml
27 234061600 Stainless Flat Washer M6
28 207184060 Hex. Screw M8 X 40
29 234081600 Stainless, Flat Washer 8 mm
30 296000309 Silicone Sealant 51388, 300 ml
31 219701421 Instant Gasket This part replaces 219700363.
32 296000309 Silicone Sealant 51388, 300 ml
33 232581600 Hex. Elastic Nut M8
34 234081600 Stainless, Flat Washer 8 mm
35 204120279 DRIVE SHAFT - Call your local BRP dealership
36 272000173 Drive Shaft Plug
37 271001577 C-Clip This part replaces 271001433.
38 295501204 Carbon Ring Kit This part replaces 271001434.
39 293300107 O-Ring
41 271001933 Bellow This part replaces 271001422.
42 293650079 Norma Clamp
43 271001813 Anode Zinc This part replaces 271001487.
44 207362060 Hex. Screw M6 X 20, Scotch Grip
