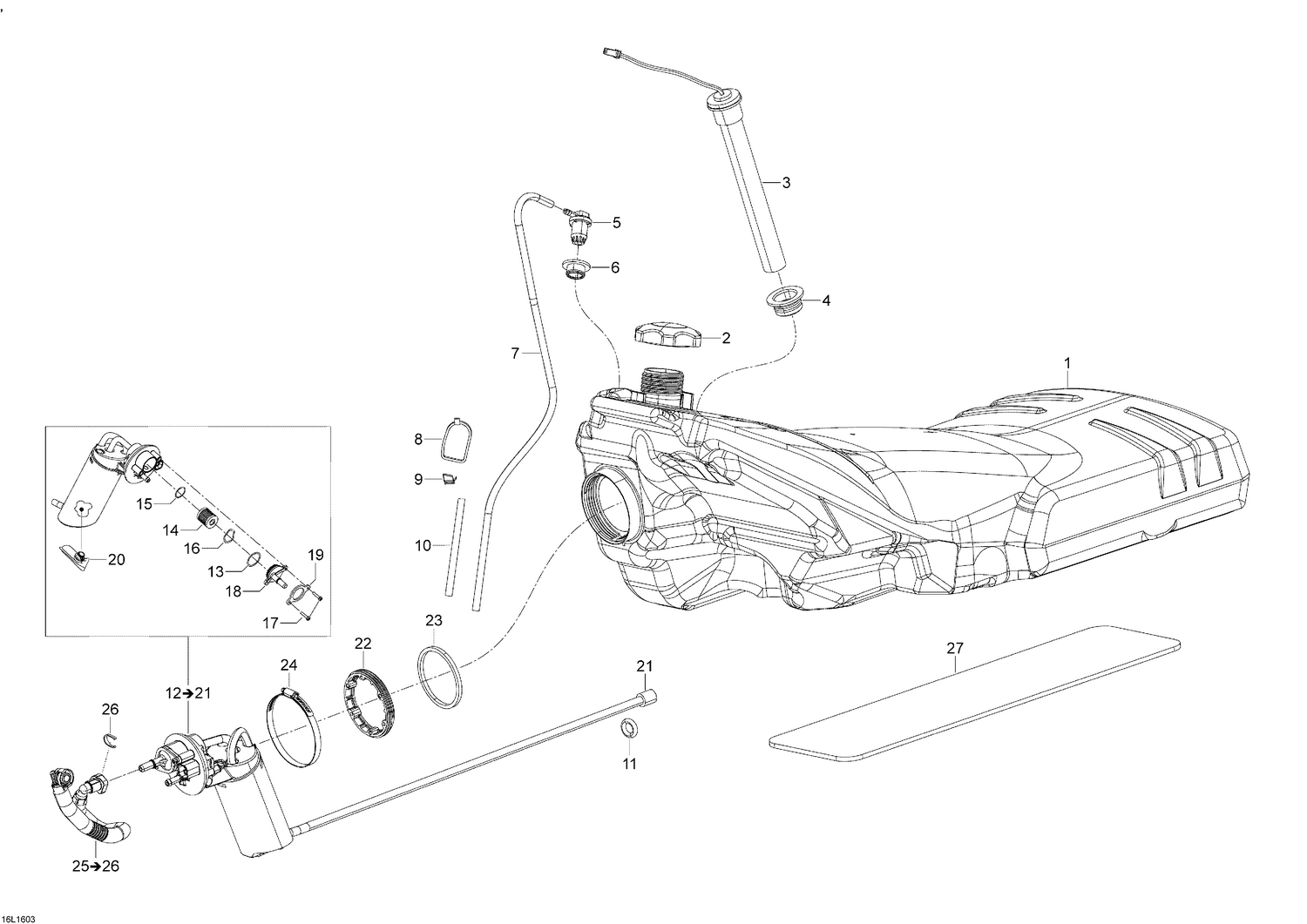

02- Fuel System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033757 | Fuel Tank |
| 2 | 513033723 | Cap |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet |
| 7 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 414227300 | Clip |
| 10 | 504153468 | Protector Tube |
| 11 | 293300184 | O Ring |
| 13 | 415129509 | O-Ring |
| 14 | 415129510 | Fuel Filter |
| 15 | 415129511 | O-Ring |
| 16 | 415129512 | Wave Washer |
| 17 | 415129513 | Screw |
| 18 | 415129685 | Cover |
| 19 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 20 | 415129451 | Fuel Filter (In Tank, Fuel Pump) |
| 21 | 414872100 | Fuel Filter (In Tank, Fuel Line) |
| 22 | 513033180 | Ring |
| 23 | 513033334 | Gasket |
| 24 | 513033628 | Clamp |
| 26 | 513033135 | Locking Clip |
