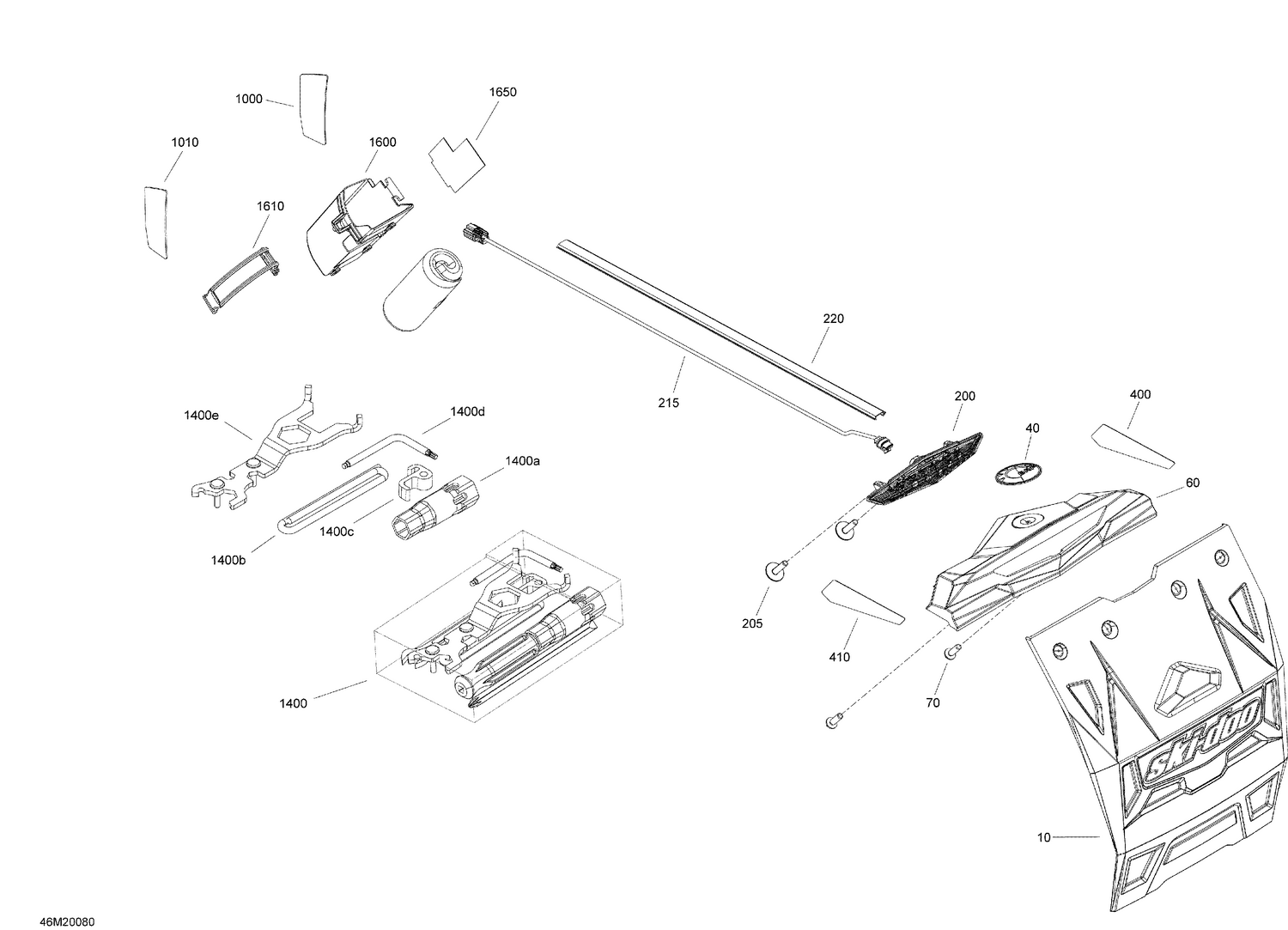

09- Utilities
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001510 | Snow Guard |
| 40 | 516008738 | BRP Logo 48mm |
| 60 | 511000810 | Deep Black, Light Fairing |
| 70 | 241141340 | Hex. Screw K40 X 13 |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178064 | Wiring Harness |
| 220 | 520000829 | Radiator Trim |
| 400 | 520001239 | Red Rh Rear Reflector |
| 410 | 520001238 | Red, LH Rear Reflector |
| 1000 | 520000891 | Yellow, RH Front Reflector |
| 1010 | 520000892 | Yellow, LH Front Reflector |
| 1400a | 529000046 | Set Key, 16/21 mm |
| 1400b | 529017500 | Rope Starter |
| 1400c | 529000060 | Starter Grip |
| 1400d | 520001589 | Key |
| 1400e | 520001499 | Wrench |
| 1600 | 520000894 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
