Parts Catalog

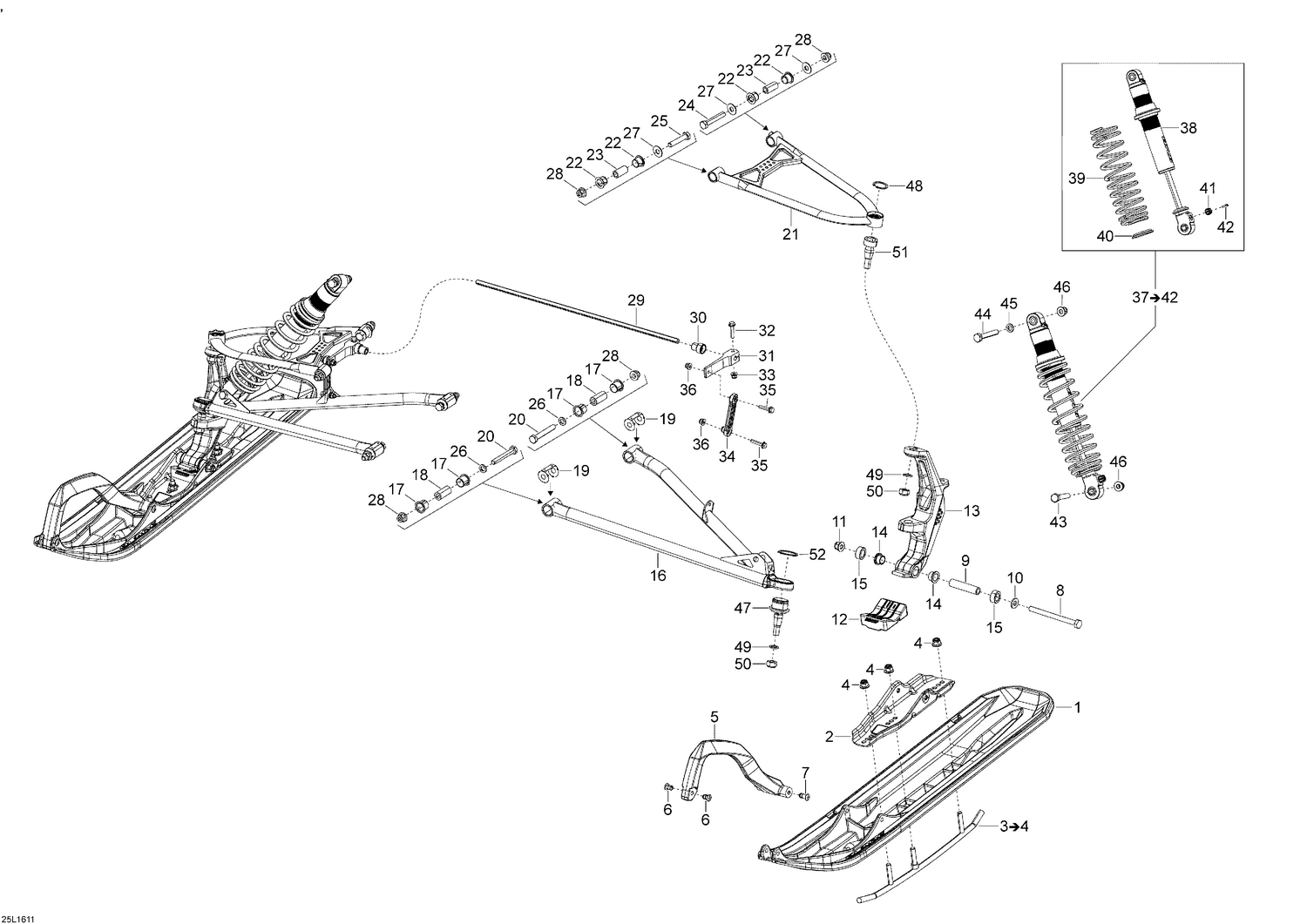

07- Front Suspension And Ski

Parts (52)

Ref	Part Number	Description
1	505073154	Black Blade Ski
2	505073240	Ski Bridge
4	233201414	Hex. Flanged Elastic Nut M10
5	505073108	White Handle
6	505071812	Retainer 17mm long
7	505072133	Retainer 23mm Long
8	231080044	Socket HD Screw M10 x 100
9	506133300	Ski Axle
10	732900049	Washer
11	233201414	Hex. Flanged Elastic Nut M10
12	505073411	Rubber Damper
13	505073630	Black LH Ski Leg (6L)
13	505073631	Black RH Ski Leg (6R)
14	505072690	Leg Bushing
15	505072807	Spacer
16	505073583	Black LH Lower Arm
16	505073584	Black RH Lower Arm
17	505073330	Bushing
18	505072209	Bushing
19	505072634	Wear Plate
20	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
21	505073588	Black LH Upper Arm
21	505073589	Black RH Upper Arm
22	505073329	Bushing
23	505072143	Bushing
24	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
25	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
26	503189564	Washer
27	505072392	Washer
28	250100165	Hex. Flanged Elastic Nut M10
29	505072444	Stabilisator
30	505072445	Bushing
31	505072446	Stabilisator Lever
32	207663046	Hex. Flange Screw M6 X 30
33	233261416	Elastic Flanged Nut M6 X 1.0
34	505072204	Sway Bar Double Joint Link
35	207663046	Hex. Flange Screw M6 X 30
36	233261416	Elastic Flanged Nut M6 X 1.0
38	505073456	Shock
39	505072846	Spring (280mm - 14N/mm)
40	503194270	Spring Stopper
41	505072753	Adjustment Knob
42	250000644	Allen Screw M3 X 0.5 X 10
43	207005544	Hex. Cap Screw M10 x 55
44	207006544	Hex. Cap Screw M10 x 65
45	503189564	Washer
46	233201414	Hex. Flanged Elastic Nut M10
47	505073636	Ball Joint
48	293370070	Circlip
49	234021410	Flat Washer
50	250100089	Nut M12
51	505072913	Upper Ball Joint
