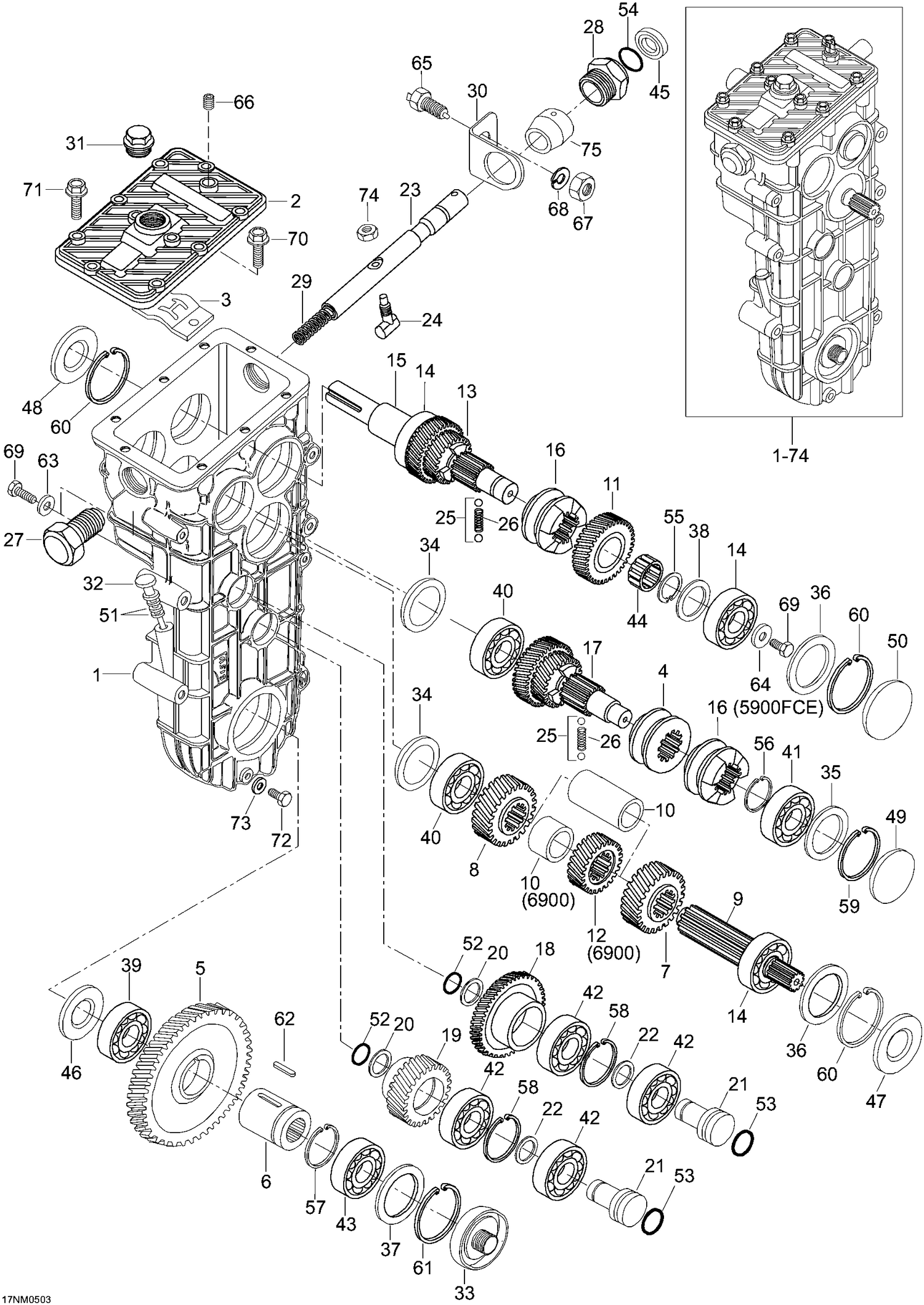

05- Transmission, 5900FCE
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 875156138 | HOUSING - Call your local BRP dealership |
| 2 | 875156043 | Lock - Call your local BRP dealership |
| 3 | 875156111 | H-SCHEME - Call your local BRP dealership |
| 6 | 875136962 | Shaft |
| 8 | 875156054 | Wheel Z=34 L.H. - Call your local BRP dealership |
| 9 | 875156069 | SHAFT - Call your local BRP dealership |
| 12 | XXX | Not Available As Spare Parts |
| 14 | 610063050 | BEARING 6305 - Call your local BRP dealership |
| 17 | 875156068 | Shaft - Call your local BRP dealership |
| 20 | 875156094 | Ring |
| 21 | 875147204 | Shaft |
| 22 | 875147205 | Washer - Call your local BRP dealership |
| 23 | 875156072 | Shaft - Call your local BRP dealership |
| 24 | 875156073 | Pin - Call your local BRP dealership |
| 25 | 616810064 | Ball |
| 26 | 875156105 | Spring - Call your local BRP dealership |
| 27 | 875156076 | SLEEVE - Call your local BRP dealership |
| 28 | 875156077 | SLEEVE - Call your local BRP dealership |
| 29 | 875156078 | Spring |
| 30 | 875156242 | Bracket |
| 31 | 875156098 | Oilplug - Call your local BRP dealership |
| 32 | 875156097 | Dipstick |
| 33 | 875156104 | PLUG - Call your local BRP dealership |
| 34 | 875152953 | Plug |
| 35 | 617394252 | Shim 0,3mm - Call your local BRP dealership |
| 36 | 617395065 | Shim 0,3mm - Call your local BRP dealership |
| 37 | 617395568 | ADJUSTMENT SHIM - Call your local BRP dealership |
| 38 | 616092542 | Axial washer |
| 39 | 6008 | Bearing - Call your local BRP dealership |
| 40 | 610063044G | Bearing |
| 41 | 6304 | Bearing - Call your local BRP dealership This part replaces 610063040. |
| 43 | 610060084 | BALL BEARING - Call your local BRP dealership |
| 44 | 611002529 | Needle bearing |
| 45 | 614102031 | Oil seal - Call your local BRP dealership |
| 46 | 614102652 | Shaft seal |
| 47 | 614102562 | Shaft seal |
| 48 | 614103562 | Shaft seal |
| 49 | 614100052 | Plug |
| 50 | 614100062 | PLUG - Call your local BRP dealership |
| 51 | 614600725 | O-ring - Call your local BRP dealership |
| 52 | 614601224 | O-RING - Call your local BRP dealership |
| 53 | 614602431 | O-ring |
| 54 | 614601523 | O-ring |
| 55 | 617450025 | CIRCLIP - Call your local BRP dealership |
| 56 | 617450028 | CIRCLIP - Call your local BRP dealership |
| 57 | 617300040 | Lock ring |
| 58 | 617330047 | Circlip - Call your local BRP dealership |
| 59 | 617330052G | Lock ring |
| 60 | 617330062 | CIRCLIP - Call your local BRP dealership |
| 61 | 617330068 | Snapring - Call your local BRP dealership |
| 62 | 603345070 | Key |
| 64 | 875156112 | Washer |
| 65 | 654100225 | Switch - Call your local BRP dealership |
| 66 | 640025012S | Plug - Call your local BRP dealership |
| 67 | 33021 | Nut M12 |
| 68 | 20016 | Spring washer |
| 69 | 40036 | Screw M8 x 20 |
| 70 | 40337 | Screw M8 x 16 |
| 71 | 537001402 | Screw 80 x 25 - Call your local BRP dealership |
| 72 | 528801342 | HEX. SCREW M8 X 10 - Call your local BRP dealership |
| 73 | 615580812 | Gasket-ring - Call your local BRP dealership |
| 74 | 510611002 | NUT M10 - Call your local BRP dealership |
