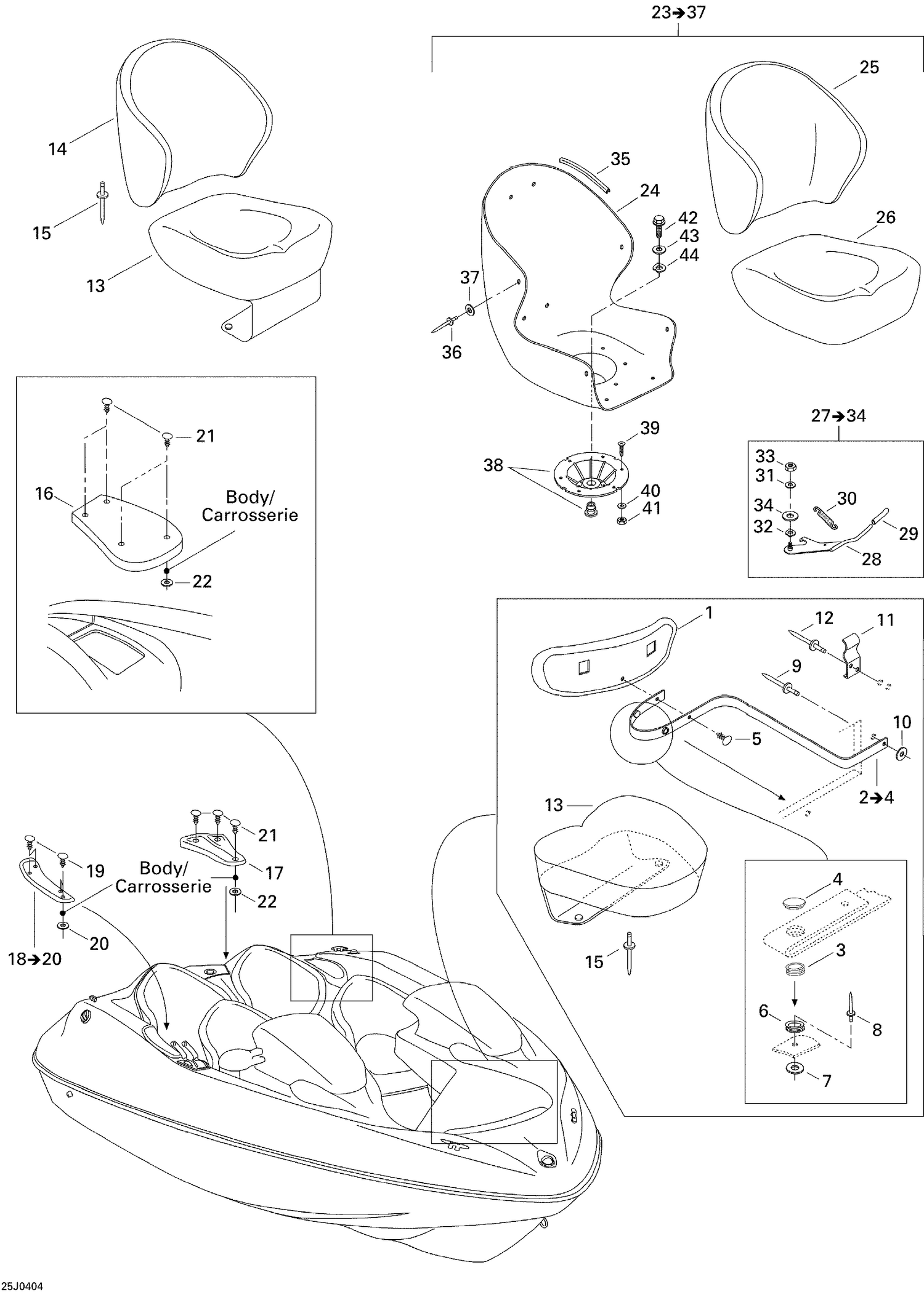

| Ref | Part Number | Description |
|---|
| 1 |
204612492 |
Front Backrest Ass'y, Metallic Silver |
| 3 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 4 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 5 |
293730006 |
Black, Dart |
| 6 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 7 |
234032600 |
Flat Washer M3, Stainless |
| 8 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 9 |
293150043 |
Pop Rivet 3/16" |
| 10 |
234052600 |
Flat Washer 5 mm, Stainless |
| 11 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
204612498 |
Seat Cushion , Metallic Silver |
| 14 |
295501060 |
Backrest Cushion (Metallic Silver) |
| 15 |
293150013 |
Pop Rivet 3/16" |
| 16 |
204612518 |
RH Armrest Ass'y, Orange |
| 16 |
204612519 |
LH Armrest Ass'y, Orange |
| 17 |
204612521 |
Center Armrest, Metallic Silver |
| 19 |
293730006 |
Black, Dart |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
293730006 |
Black, Dart |
| 22 |
234062600 |
Flat Washer M6, Stainless |
| 24 |
204611146 |
Seat Base |
| 25 |
204612526 |
Backrest Cushion, Metallic Silver |
| 26 |
204612498 |
Seat Cushion , Metallic Silver |
| 28 |
204610524 |
Lever Arm |
| 29 |
204610348 |
Handle |
| 30 |
204610349 |
SPRING - Call your local BRP dealership |
| 31 |
234061600 |
Stainless Flat Washer M6 |
| 32 |
211200059 |
Washer |
| 33 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 34 |
Not |
Available As Spare Part - Nylon Washer |
| 35 |
204610371 |
TRIM, BLACK - Call your local BRP dealership |
| 36 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 37 |
204100059 |
FLAT WASHER #10 - Call your local BRP dealership |
| 38 |
204610513 |
SWIVEL PLATE - Call your local BRP dealership |
| 39 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 40 |
234062600 |
Flat Washer M6, Stainless |
| 41 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 42 |
211000172 |
SCREW-SHOULDER - Call your local BRP dealership |
| 43 |
211200058 |
FLAT WASHER - Call your local BRP dealership |
