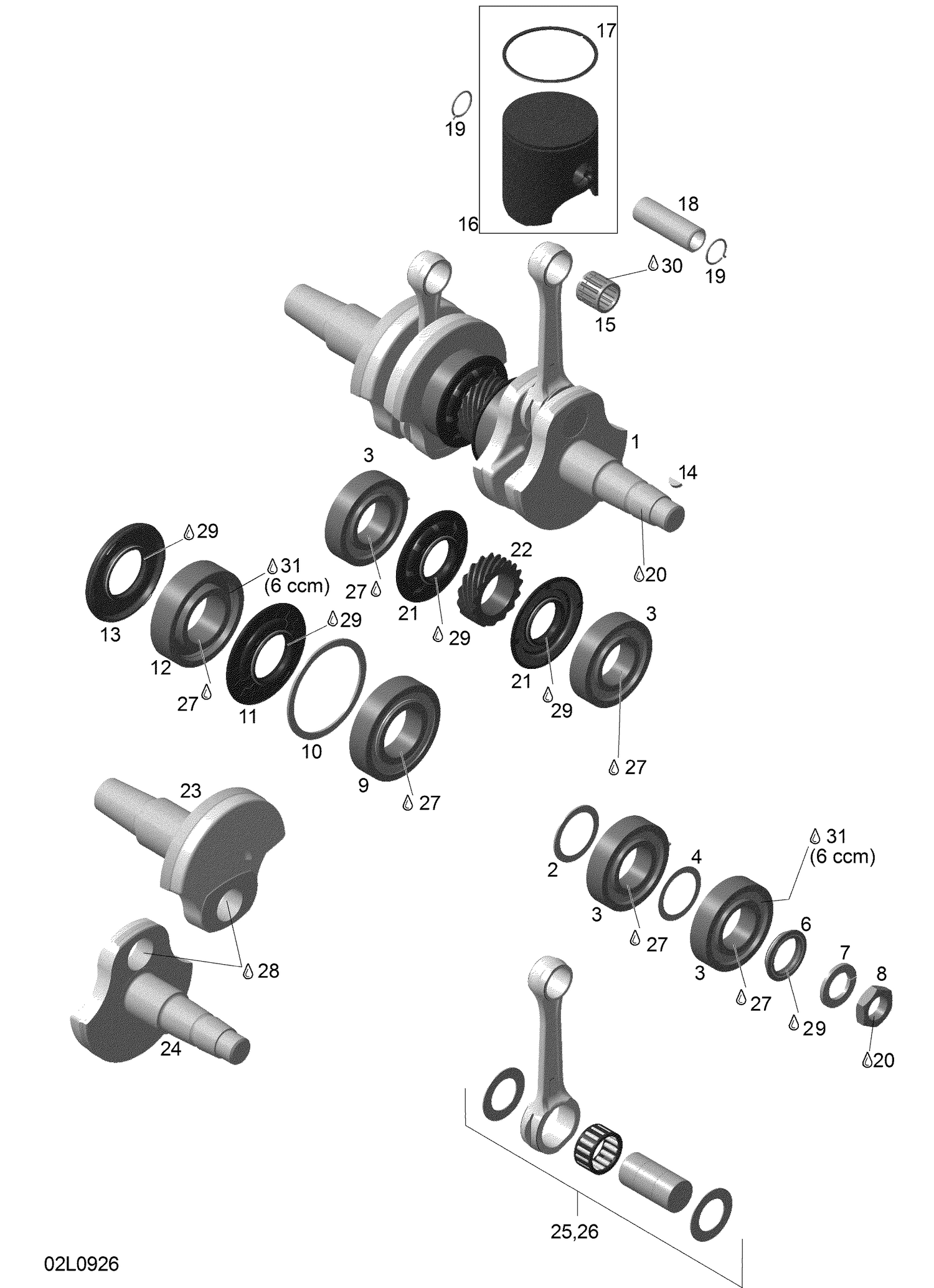

01- Crankshaft And Pistons
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420827767 | Shim This part replaces 420827765. |
| 3 | 420832575 | Ball Bearing 6207 |
| 4 | 420427502 | ADJUSTMENT WASHER - Call your local BRP dealership |
| 6 | 420931795 | Oil Seal This part replaces 420931793. |
| 7 | 420945759 | Lock washer |
| 8 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 | 420832600 | Ball Bearing 6208 |
| 10 | 420926190 | Retaining disk |
| 11 | 420931910 | Oil seal |
| 12 | 420832671 | Bearing Ball This part replaces 420832603. |
| 13 | 420931284 | Oil Seal This part replaces 420931285. |
| 14 | 420246015 | Woodruff Key |
| 15 | 420832445 | Needle cage |
| 17 | 420815295 | Semi trapez ring |
| 18 | 420916412 | Piston Pin This part replaces 420916411. |
| 19 | 420845106 | Piston Circlip |
| 20 | 293800060 | Loctite 243 |
| 21 | 420931455 | Oil seal |
| 22 | 420834355 | CENTRAL GEAR - Call your local BRP dealership |
| 23 | 420818708 | CRANKSHAFT, PTO SIDE - Call your local BRP dealership |
| 24 | 420818739 | CRANKSHAFT, MAG SIDE - Call your local BRP dealership |
| 25 | 420890958 | Rod repair kit PTO.-side |
| 26 | 420890959 | Rod repair kit MAG.-side |
| 27 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 28 | 420897340 | Loctite 14486, 250ml |
| 29 | 420899271 | Klueber petamo |
| 30 | 779120 | NEEDS DESCRIPTION This part replaces 413803000. |
